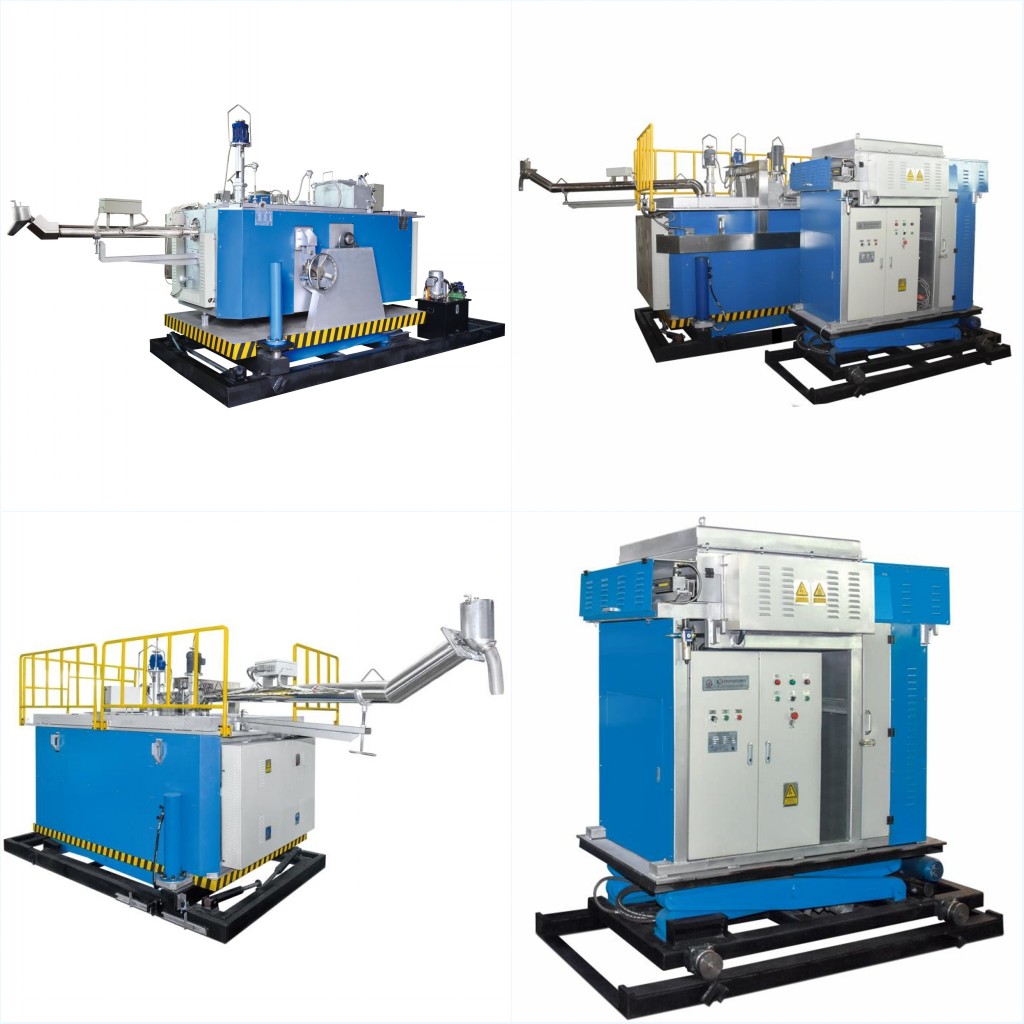

Accessories for Magnesium Alloy Dosing Furnace

High Preformance
Energy Saving
High Safety
Higher Stability

Product Description

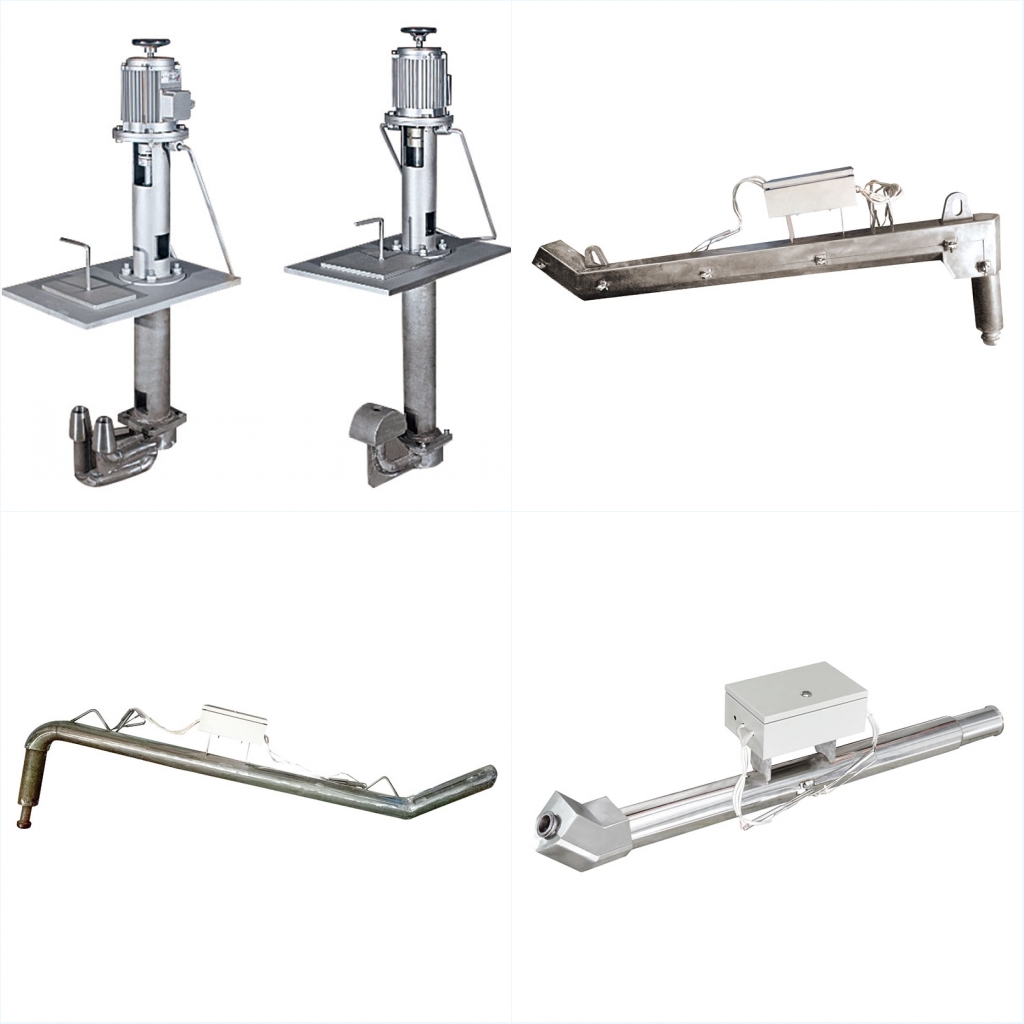

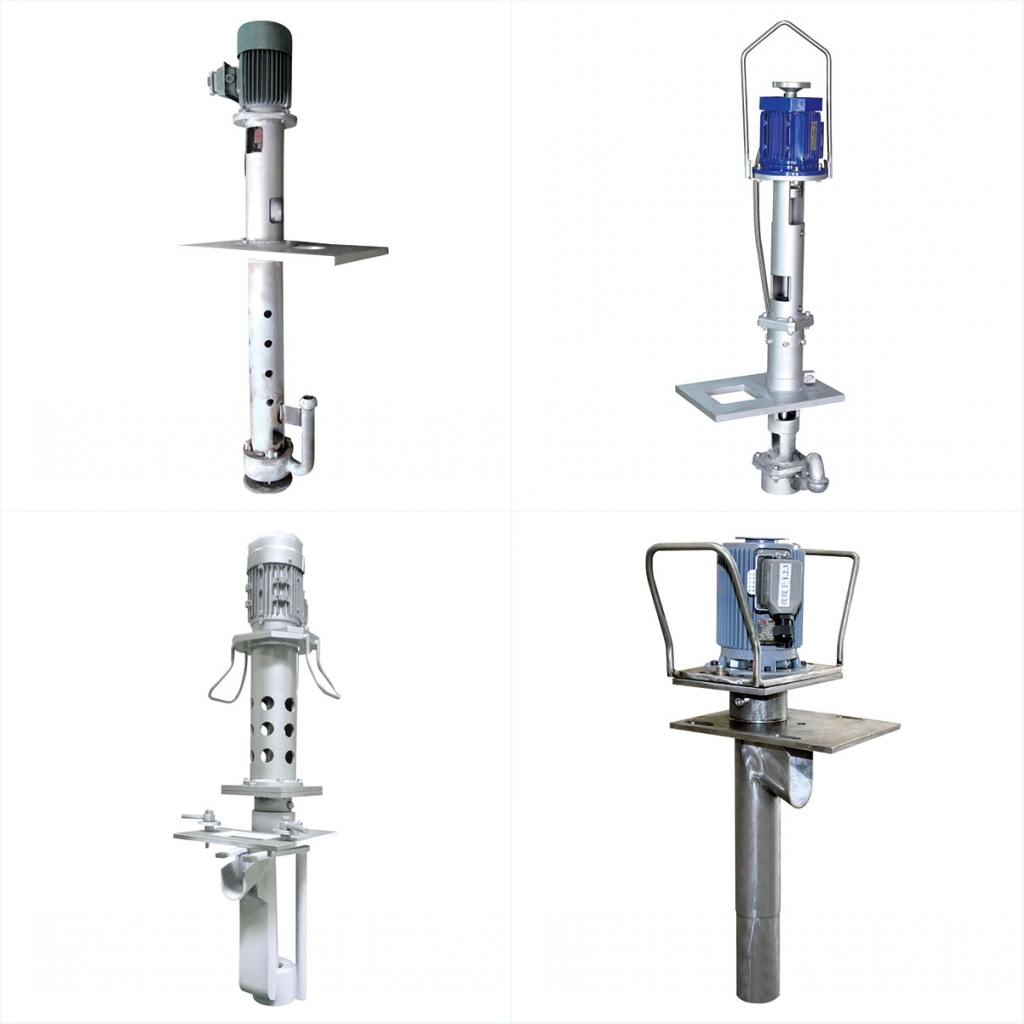

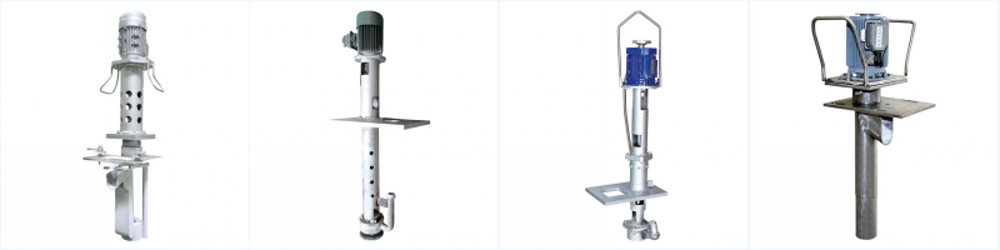

Main features of magnesium alloy dosing pump

  1. The quantitative pump uses a centrifugal mechanical dosing pump
  2. Independent control system, precise parameter control
  3. Precise control of pouring time and pouring speed
  4. Good repeatability and high quantitative accuracy
  5. High temperature resistance, corrosion resistance, no deformation, stable operation in molten magnesium alloy solution
  6. Removable tube for easy cleaning
  7. Vector servo motor drive, electrically blocked

Magnesium alloy quantitative pump parameters

1 Pump power(KW) 0.3 0.3 0.5 0.75
2 Single cycle feed volume(kg) 0.2~15 0.2~15 0.2~200 1.5~1000
3 Net weight(KG) 20  About 20 20  About 20 80  About 80 120  About 80
4 Voltage frequency 3*380V,50HZ 3*380V,50HZ 3*380V,50HZ 3*380V,50HZ
5 Dosing pump impeller diameter(mm) φ50 φ50 φ80 φ80
6 Quantitative accuracy ±0.05 ±0.05 ±0.1 ±0.1
7 Working way Centrifugal Centrifugal Centrifugal Spinning type

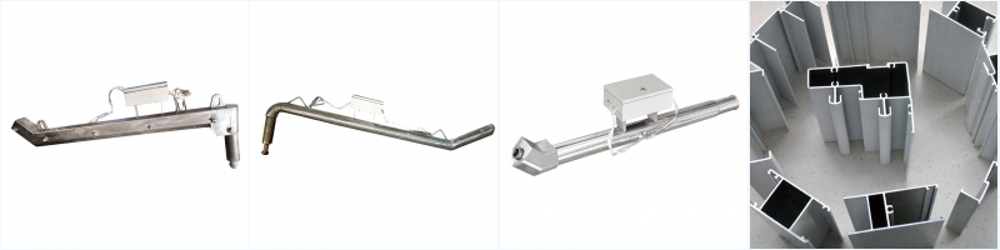

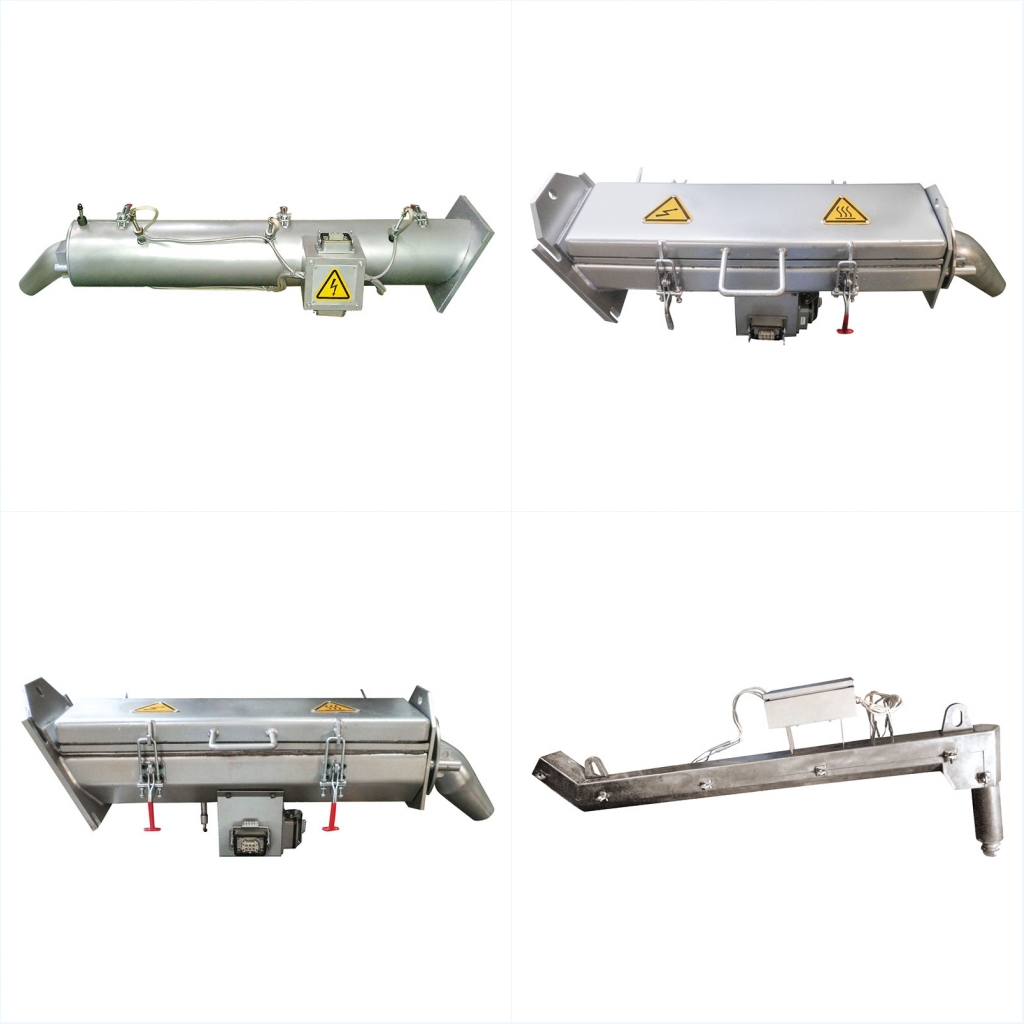

Main features of magnesium liquid transmission pipe:
- Control the temperature of the molten metal in sections to control the temperature change of the molten metal in real time
- High temperature stability
- High temperature resistance, corrosion resistance, no deformation
- Anti-oxidation, long service life
- Fully enclosed design, can open the cleaning transfer tube, convenient and practical
- Professional metal processing system to ensure the purity of molten metal, accurate transmission and safety

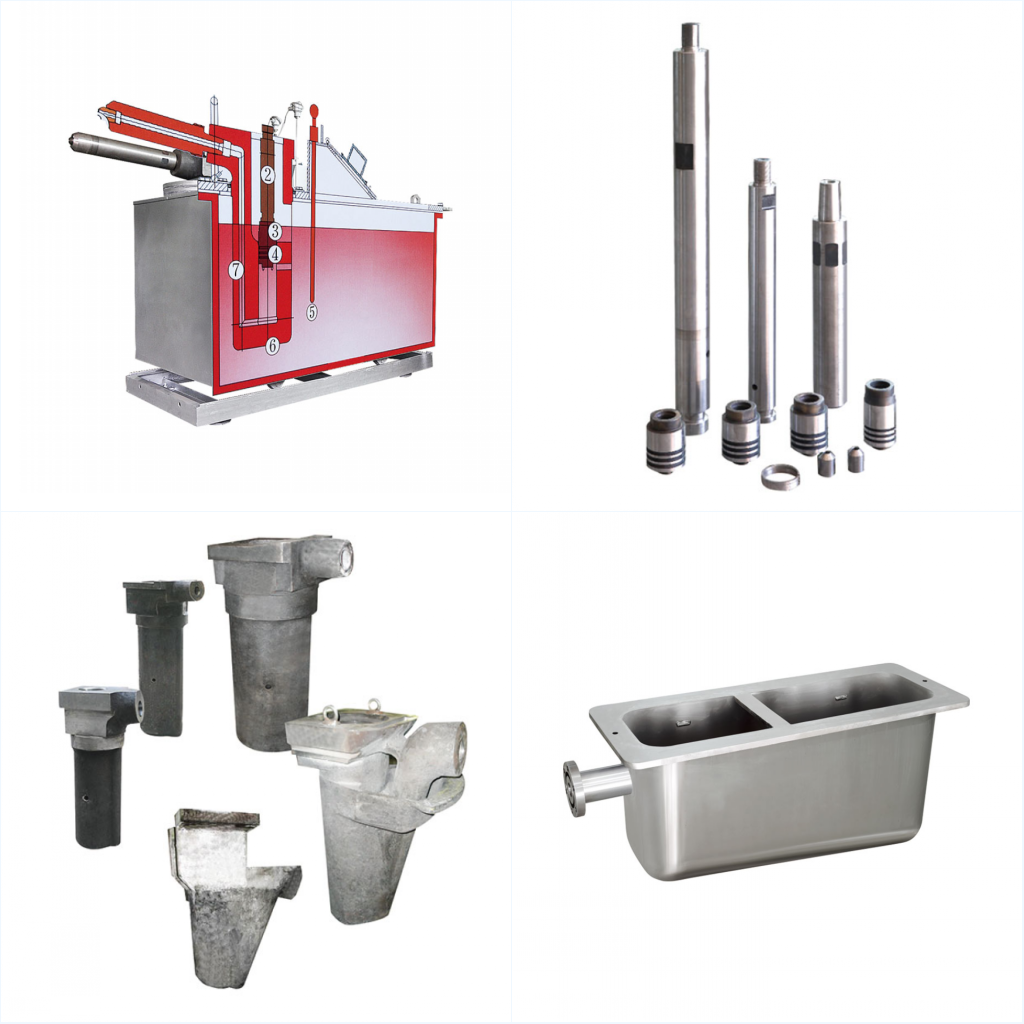

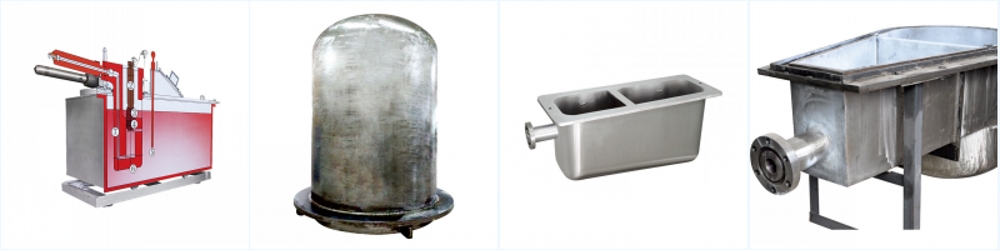

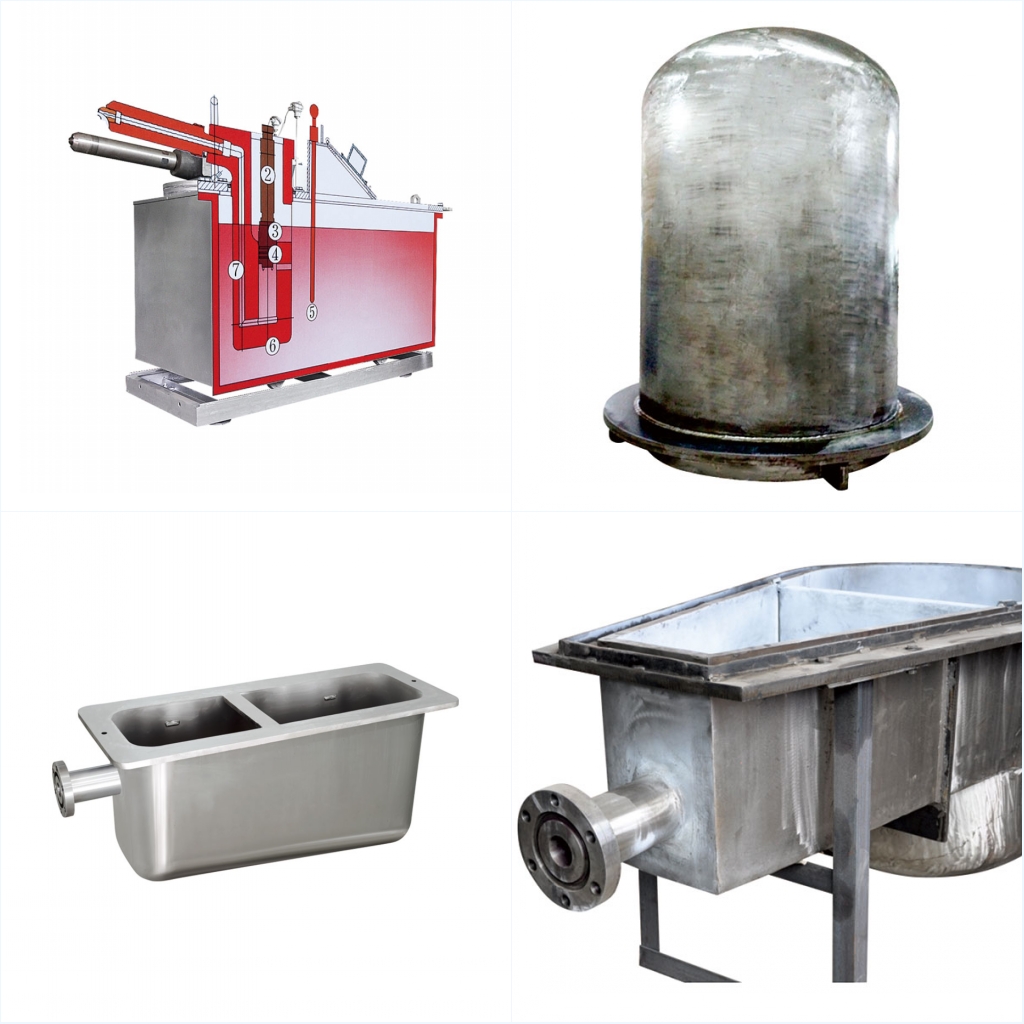

Crucible main features
- Made of special alloy steel, resistant to magnesium corrosion, high temperature
- The crucible material does not contain Ni and does not react with magnesium solution; the crucible is resistant to high temperatures of 600 to 800 ° C and can work stably.
- Crucible integral casting, no welding cracks and welding stress, so it can ensure stable and safe melting of molten metal.
