Manual Spray Gun

  • Manual Spray Gun Sand Blasting
Manual Spray Gun Sand Blasting

Manual Spray Gun Sand Blasting

  • High Preformance
  • Long Life
  • High Precision
  • Higher Stability
  • Product description: Manual Spray Gun Sand Blasting, high quality, long using life, standard and customilized with reasonable cost.
  • INQUIRY   EMAIL

Product Description

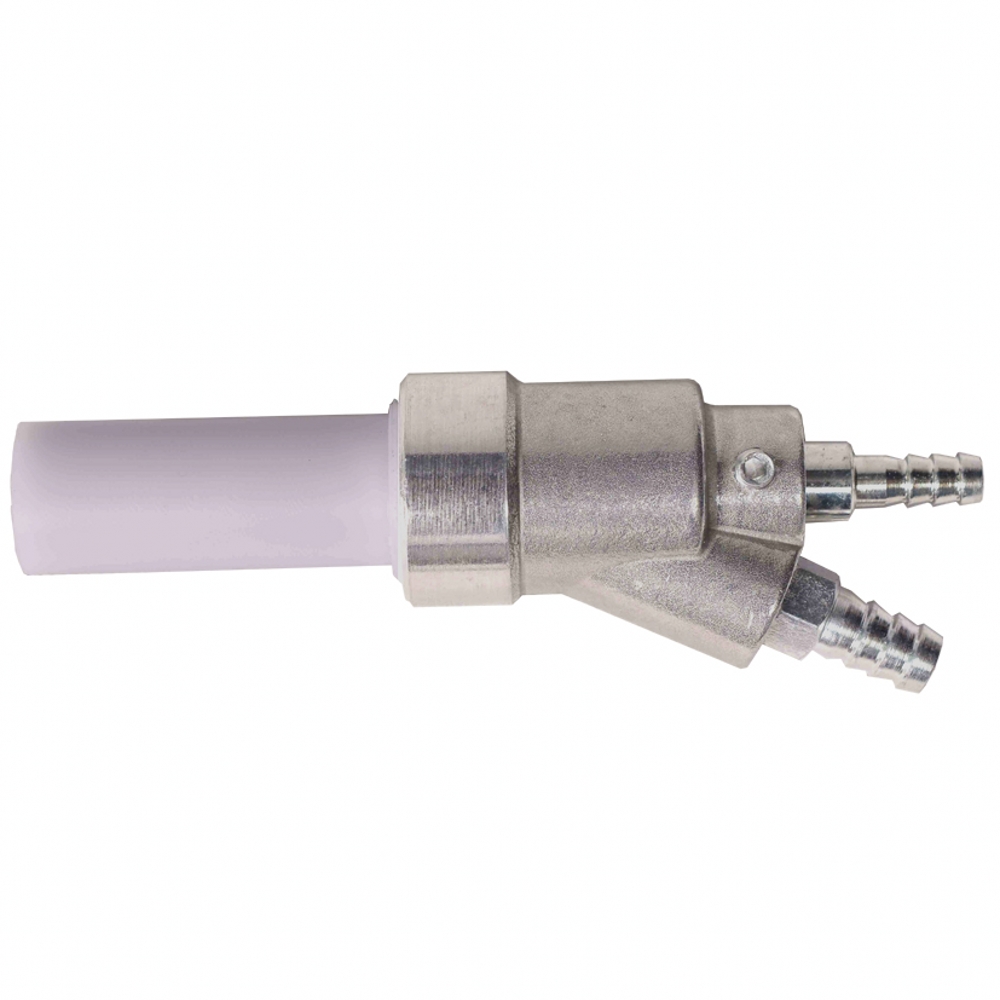

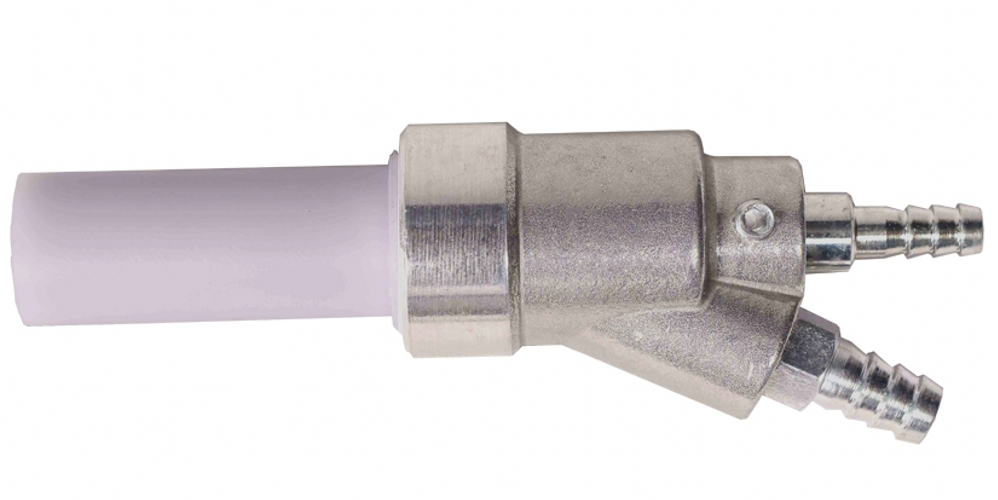

Manual Spray Gun Sand Blasting for Cold Chamber High pressure die casting machine


Product details

The self-priming type sandblasting gun nozzle is high temperature and high pressure of composite wear-resistant material

Sintered, hardness greater than HRC93, density greater than 2.50g/cm3, aluminum

Use wear-resistant aluminum alloy solution treatment, hardness up to HB110, the whole gun

Service life is more than 1000 hours; design of negative pressure cavity is ideal.

Strong and strong.

Directions

The inlet nozzle and sand inlet joint are respectively connected with the air source hose and sand suction pipe.

2 Loosen the fastening screws, the intake nozzle can be adjusted inside and outside;

Small amount of sand, and strong strength, outward adjustment, vice versa;

For the sake of self-safety, be sure to wear the sand blasting gun

Protective clothing.

Main technical parameters

Compressed air

≥0.6 MPa

Sand blasting distance

≤0.5m

Gas Consumption

0.8 to 1.2 m3/min

abrasive particle size

≥46#

Abrasive lift height

£2.0m

Sand blasting capacity

3~10kg/min

External diameter of fixed frame

Ø45 mm

Sand inlet joints

13.5 mm

Diameter of nozzle inner hole

8 mm

Air intake joint

Ø9.5 mm
