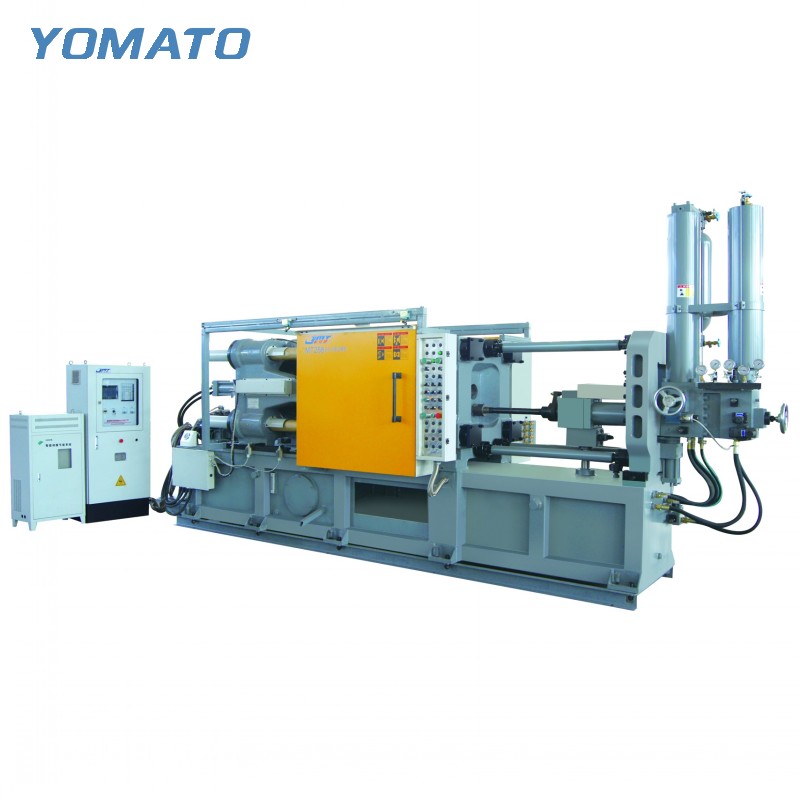

Cold Chamber Die Casting Machine MT200

High Preformance
High Efficiency
High Precision Control System
Higher Stability

Please Click The Below Quick Links,Find Out Suitable Machine Model.

MT130

MT160

MT200

MT230

MT258

MT300

MT350

MT400

MT450

MT550

MT700

MT850

MT950

MT1100

MT1300

MT1600

MT2000

MT2500

MT3000

MT3500
Product Description

Highlights of MT Series Cold Chamber Die Casting Machine

Higher Performance

Air shot speed ≥ 8m/s, intensification pressure building time ≤ 15ms, slow-fast injection switching time ≤25ms. The machine is suitable for aluminum and magnesium.

Higher Efficiency

The injection system and extremely fast clamping system, built according to the new structural design of advanced foreign die casting machines, are much more reliable than traditional die casting machines and achieve high-speed production and higher output.

Higher Stability

The key units of the die casting machine, such as the injection system, precisely engineered according to the structural and processes design of famous foreign die casting machines, has high rigidity, high reliability and high durability and is  adaptable to adverse operating environment to realize highly stable production.

Features of MT Series Cold Chamber Die Casting Machine

Injection System of <a href=https://www.yomato-machinery.com/Cold-Chamber-Die-Casting-Machine.html target='_blank'>Cold Chamber Die Casting Machine</a>

Superior Injection System

Yomato’s superior non-floating piston injection system has a low malfunction rate,built-in one-way valve control, shorten the pressure build-up time and ensure the good stability.

lubrication system of <a href=https://www.yomato-machinery.com/Cold-Chamber-Die-Casting-Machine.html target='_blank'>Cold Chamber Die Casting Machine</a>

Central Lubrication System

The toggles are equipped with an automatic central lubrication system that allows separate adjustments of the lubrication interval and oil volume and improves the lifespan and reliability of the machine.

Toggle system of <a href=https://www.yomato-machinery.com/Cold-Chamber-Die-Casting-Machine.html target='_blank'>Cold Chamber Die Casting Machine</a>

Highly Stable Toggle System

The high-rigidity mold opening and closing mechanism meets the requirements of high-speed machines and it is resistant to impacts and has long lifespan. In addition, the fast clamping system is a standard feature for the purpose of high-speed production.

Hydraulic Control System of <a href=https://www.yomato-machinery.com/Cold-Chamber-Die-Casting-Machine.html target='_blank'>Cold Chamber Die Casting Machine</a>

Precise Hydraulic Control System

Multi-level electrically operated proportional pressure and flow control, as well as low-pressure mold protection is available;Original imported high performance, low noise dual vane pump from Japan;Electromagnetic valve,Electrical hydraulic valve.

Electrical Control System of <a href=https://www.yomato-machinery.com/Cold-Chamber-Die-Casting-Machine.html target='_blank'>Cold Chamber Die Casting Machine</a>

Stable Electrical Control System

The ORMON PLC control system (touch screen) is safe and reliable with high control accuracy. Separate integration of the electrical and electronic systems effectively enhances the stability of the electrical circuit.

Servo system of <a href=https://www.yomato-machinery.com/Cold-Chamber-Die-Casting-Machine.html target='_blank'>Cold Chamber Die Casting Machine</a>

Energy Saving Servo System(optional device)

Yomato die casting machine supply the  servo system for machine energy saving as optional.

Servo motor:Hilectro(China famous brand)+Servo Pump:Sumitomo brand+Servo Driver:MODROL

Or customized making under special requirements brands.

Specification List


Item Unit MT130 MT160 MT200 MT230 MT258
Clamping Unit Clamping Force KN 1300 1600 2000 2300 2600
Platen Size(HxV) mm 680x680 680x680 760x740 780x780 820x820
Space Between Tie Bars(HxV) mm 430×430 460x460 490x490 510x510 530x530
Tie Bar Diameter mm 75 85 90 95 100
Mold Height(Min.-Max.) mm 250~500 200-550 200-550 200-600 250-600
Clamping Stroke mm 350 360 380 400 430
Ejection Stroke mm 80 80 80 90 90
Ejection Force KN 100 100 130 130 130
Injection Unit Injection Force KN 94-180 220 230 250 280
Injection Stroke mm 340 345 350 370 380
Injection Position mm 0,-100 0,-140 0,-140 0,-140 0,-140
Injection Plunger Diameter mm 40,50,60 40,50,60 50,60,70 50,60,70 50,60,70
Injection Weight(Al) KG 0.7,1.2,1.7 0.7,1.2,1.7 1.2,1.8,2.4 1.3,1.9,2.6 1.3,1.9,2.6
Casting Pressure(Intensify.) MPa 143-63 175,112,77 117,81,59 127,88,64 142,99,72
Casting Area cm2 88-204 91,142,205 170,245,334 180,260,354 182,262,357
Max.Casting Area(40MPa) cm2 325 400 500 575 650
Casting Flange Protrusion mm 10-0.05 10-0.05 10-0.05 10-0.05 10-0.05
Casting Flange Diameter mm 110 110 110 110 110
Plunger Penetration mm 125 125 125 145 155
Others System Working Pressure MPa 14 14 14 14 14
Motor Power KW 11 11 15 15 15
Oil Tank Capacity L 400 450 500 550 600
Machine Weight KG 4700 6400 7700 8800 9300
Machine Dimensions(LxWxH) m 5.0×1.4×2.5 5.2x1.4x2.5 5.5x1.6x2.6 5.7x1.6x2.6 6x1.7x2.7
