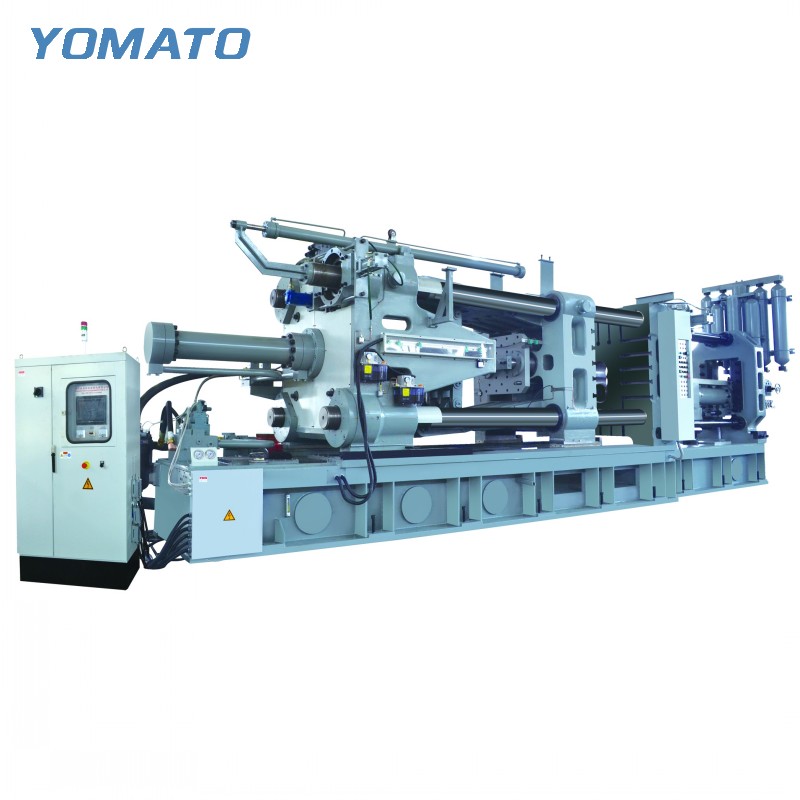

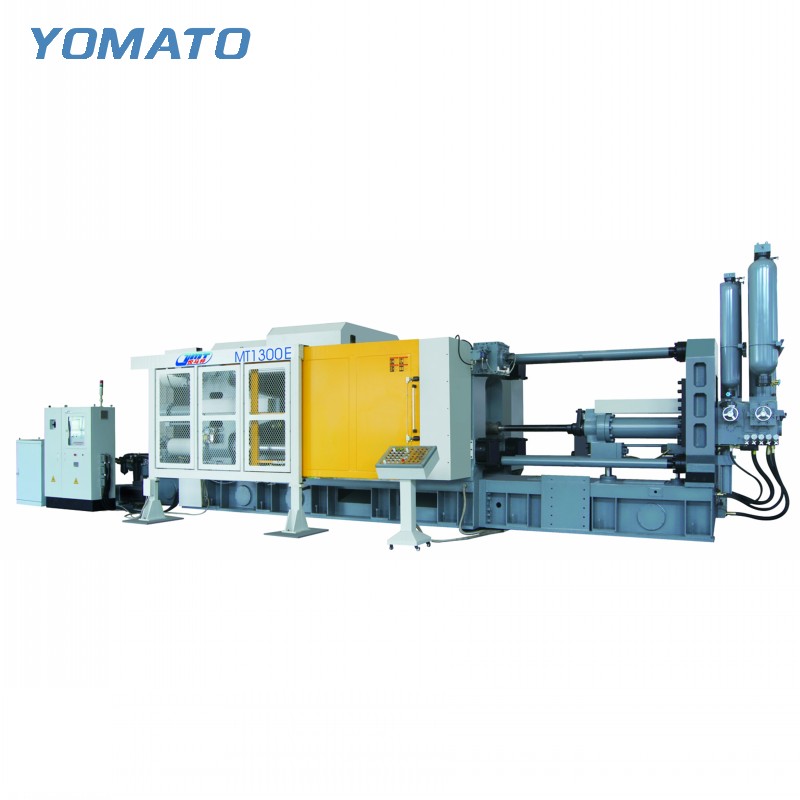

Aluminum Die Casting Machine 1300Ton

Energy Saving
High Efficiency
High Precision
Higher Stability

Please Click The Below Quick Links,Find Out Suitable Machine Model.

MT130

MT160

MT200

MT230

MT258

MT300

MT350

MT400

MT450

MT550

MT700

MT850

MT950

MT1100

MT1300

MT1600

MT2000

MT2500

MT3000

MT3500
Product Description

Highlights of MT Series Aluminum Die Casting Machine 1300Ton

Higher Performance

Air shot speed ≥ 8m/s, intensification pressure building time ≤ 15ms, slow-fast injection switching time ≤25ms. The machine is suitable for aluminum and magnesium.

Higher Efficiency

The injection system and extremely fast clamping system, built according to the new structural design of advanced foreign die casting machines, are much more reliable than traditional die casting machines and achieve high-speed production and higher output.

Higher Stability

The key units of the die casting machine, such as the injection system, precisely engineered according to the structural and processes design of famous foreign die casting machines, has high rigidity, high reliability and high durability and is  adaptable to adverse operating environment to realize highly stable production.

Features of MT Series Aluminum Die Casting Machine 1300Ton

Injection System of <a href=https://www.yomato-machinery.com/Aluminum-Die-Casting-Machine.html target='_blank'>Aluminum Die Casting Machine</a> 1300Ton

Superior Injection System

Yomato’s superior non-floating piston injection system has a low malfunction rate,built-in one-way valve control, shorten the pressure build-up time and ensure the good stability.

lubrication system of <a href=https://www.yomato-machinery.com/Aluminum-Die-Casting-Machine.html target='_blank'>Aluminum Die Casting Machine</a> 1300Ton

Central Lubrication System

The toggles are equipped with an automatic central lubrication system that allows separate adjustments of the lubrication interval and oil volume and improves the lifespan and reliability of the machine.

Toggle System of <a href=https://www.yomato-machinery.com/Aluminum-Die-Casting-Machine.html target='_blank'>Aluminum Die Casting Machine</a> 1300Ton

Highly Stable Toggle System

The high-rigidity mold opening and closing mechanism meets the requirements of high-speed machines and it is resistant to impacts and has long lifespan. In addition, the fast clamping system is a standard feature for the purpose of high-speed production.

Hydraulic Control System of <a href=https://www.yomato-machinery.com/Aluminum-Die-Casting-Machine.html target='_blank'>Aluminum Die Casting Machine</a> 1300Ton

Precise Hydraulic Control System

Multi-level electrically operated proportional pressure and flow control, as well as low-pressure mold protection is available;Original imported high performance, low noise dual vane pump from Japan;Electromagnetic valve,Electrical hydraulic valve.

Electrical Control System of <a href=https://www.yomato-machinery.com/Aluminum-Die-Casting-Machine.html target='_blank'>Aluminum Die Casting Machine</a> 1300Ton

Stable Electrical Control System

The ORMON PLC control system (touch screen) is safe and reliable with high control accuracy. Separate integration of the electrical and electronic systems effectively enhances the stability of the electrical circuit.

Energy Saving Servo System of <a href=https://www.yomato-machinery.com/Aluminum-Die-Casting-Machine.html target='_blank'>Aluminum Die Casting Machine</a> 1300Ton

Energy Saving Servo System

Yomato die casting machine supply the  servo system for machine energy saving as optional.

Servo motor:Hilectro(China famous brand)+Servo Pump:Sumitomo brand+Servo Driver:MODROL

Or customized making under special requirements brands.

Specification List

Item Unit MT700 MT850 MT950 MT1100 MT1300
Clamping Unit Clamping Force KN 7000 8500 9500 11000 13000
Platen Size(HxV) mm 1260x1250 1400x1400 1480x1480 1620x1600 1780x1770
Space Between Tie Bars(HxV) mm 820x820 925x925 980x980 1050x1050 1100x1100
Tie Bar Diameter mm 165 185 190 210 230
Mold Height(Min.-Max.) mm 350-900 400-950 400-950 450-1150 550-1200
Clamping Stroke mm 650 760 800 900 1000
Ejection Stroke mm 160 180 180 190 200
Ejection Force KN 260 360 260 500 570
Injection Unit Injection Force KN 620 750 800 900 1100
Injection Stroke mm 650 750 800 900 950
Injection Position mm 0,-250 0,-250 0,-250 0,-300 0,-320
Injection Plunger Diameter mm 80,90,110 80-120 90-130 90-130 100-140
Injection Weight(Al) KG 6.1,7.8,9.6 7--16 9.1-19 10.3-21.6 13.5-26
Casting Pressure(Intensify.) MPa 123,97,79 149-66 125-60.3 141-67 140-71
Casting Area cm2 567,718,886 570-1287 755-1575 777-1622 925-1815
Max.Casting Area(40MPa) cm2 1750 2125 2375 2750 3250
Casting Flange Protrusion mm 15-0.05 20-0.05 20-0.05 20-0.05 25-0.05
Casting Flange Diameter mm 165 180 190 240 240
Plunger Penetration mm 280 300 350 350 350
Others System Working Pressure MPa 16 16 16 16 16
Motor Power KW 37 37 45 55 74
Oil Tank Capacity L 1200 1400 1500 1800 2200
Machine Weight KG 30000 39500 48000 70000 90000
Machine Dimensions(LxWxH) m 8.2x2.5x3.3 9.4x2.6x3.6 9.6x2.5x3.6 11.2x3.4x4 12.5x3.5x4
