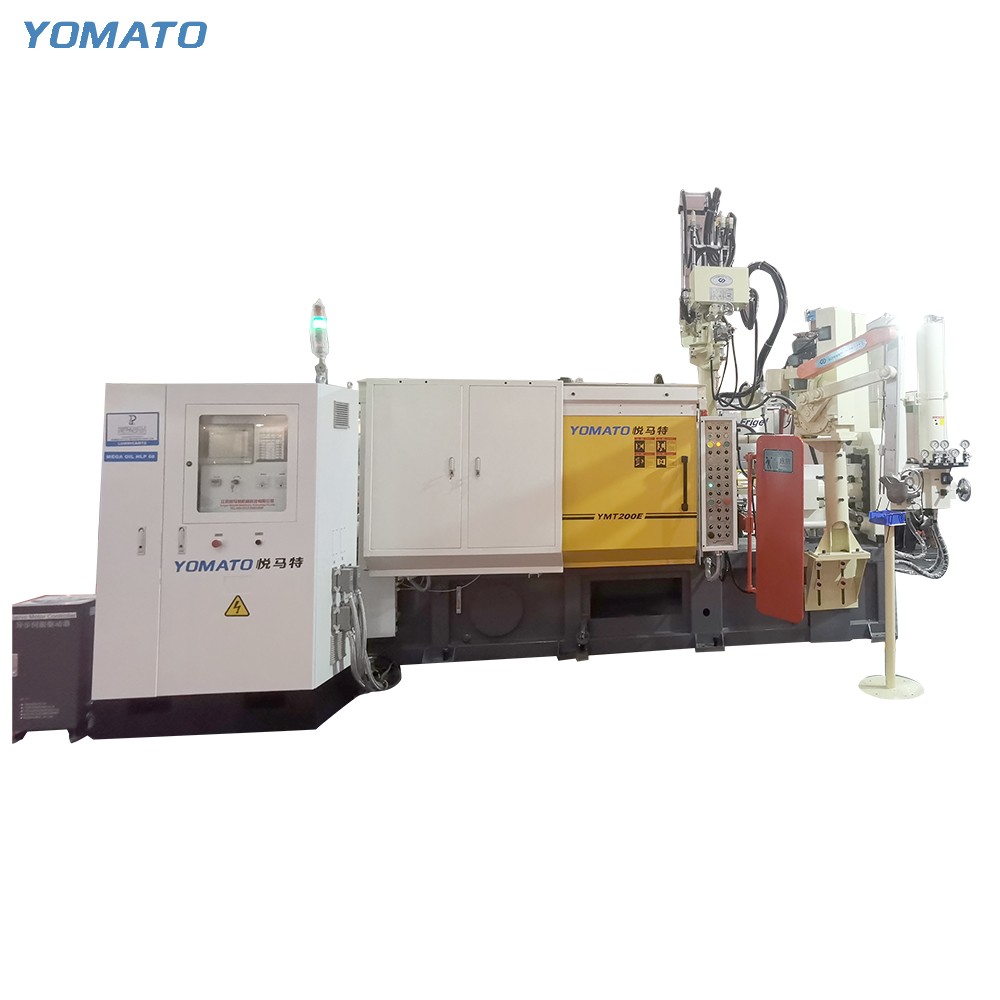

Highlights of MT Series Aluminum Die Casting Machine 160Ton
Air shot speed ≥ 8m/s, intensification pressure building time ≤ 15ms, slow-fast injection switching time ≤25ms. The machine is suitable for aluminum and magnesium.
The injection system and extremely fast clamping system, built according to the new structural design of advanced foreign die casting machines, are much more reliable than traditional die casting machines and achieve high-speed production and higher output.
The key units of the die casting machine, such as the injection system, precisely engineered according to the structural and processes design of famous foreign die casting machines, has high rigidity, high reliability and high durability and is adaptable to adverse operating environment to realize highly stable production.
Features of MT Series Aluminum Die Casting Machine 160Ton
Superior Injection System
Yomato’s superior non-floating piston injection system has a low malfunction rate,built-in one-way valve control, shorten the pressure build-up time and ensure the good stability.
Central Lubrication System
The toggles are equipped with an automatic central lubrication system that allows separate adjustments of the lubrication interval and oil volume and improves the lifespan and reliability of the machine.
Highly Stable Toggle System
The high-rigidity mold opening and closing mechanism meets the requirements of high-speed machines and it is resistant to impacts and has long lifespan. In addition, the fast clamping system is a standard feature for the purpose of high-speed production.
Precise Hydraulic Control System
Multi-level electrically operated proportional pressure and flow control, as well as low-pressure mold protection is available;Original imported high performance, low noise dual vane pump from Japan;Electromagnetic valve,Electrical hydraulic valve.
Stable Electrical Control System
The ORMON PLC control system (touch screen) is safe and reliable with high control accuracy. Separate integration of the electrical and electronic systems effectively enhances the stability of the electrical circuit.
Energy Saving Servo System
Yomato die casting machine supply the servo system for machine energy saving as optional.
Servo motor:Hilectro(China famous brand)+Servo Pump:Sumitomo brand+Servo Driver:MODROL
Or customized making under special requirements brands.
|Clamping Unit||Clamping Force||KN||1300||1600||2000||2300||2600|
|Space Between Tie Bars(HxV)||mm||430×430||460x460||490x490||510x510||530x530|
|Tie Bar Diameter||mm||75||85||90||95||100|
|Injection Unit||Injection Force||KN||94-180||220||230||250||280|
|Injection Plunger Diameter||mm||40,50,60||40,50,60||50,60,70||50,60,70||50,60,70|
|Casting Flange Protrusion||mm||10-0.05||10-0.05||10-0.05||10-0.05||10-0.05|
|Casting Flange Diameter||mm||110||110||110||110||110|
|Others||System Working Pressure||MPa||14||14||14||14||14|
|Oil Tank Capacity||L||400||450||500||550||600|
