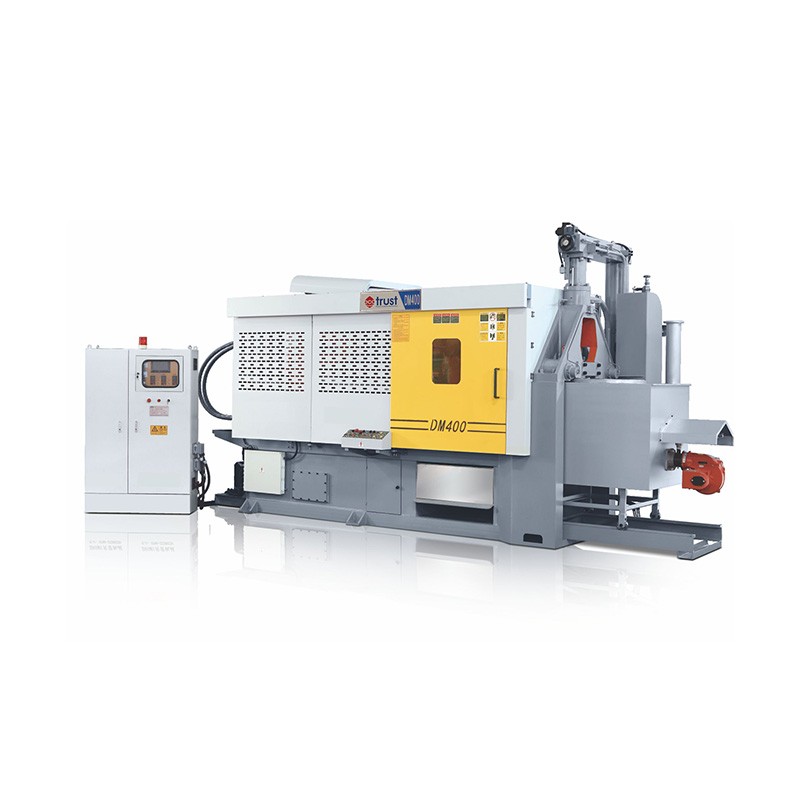

Highlights of HT Series Zinc Die Casting Machine 200Ton
Air Injection Speed ≥5m/s;
Multi-stage pressure sectional control mold open & close and low-pressure mold close protection;
2 Stages injection controls with large volume air-bag accumulator;
Adopt the Electric Chain for mold adjustment;
More suitable for automatically production.
Features of HT Series Zinc Die Casting Machine 200Ton
Superior Injection System
Yomato zinc die casting machine injection system has powerful structure and strong design to ensure the good stability.

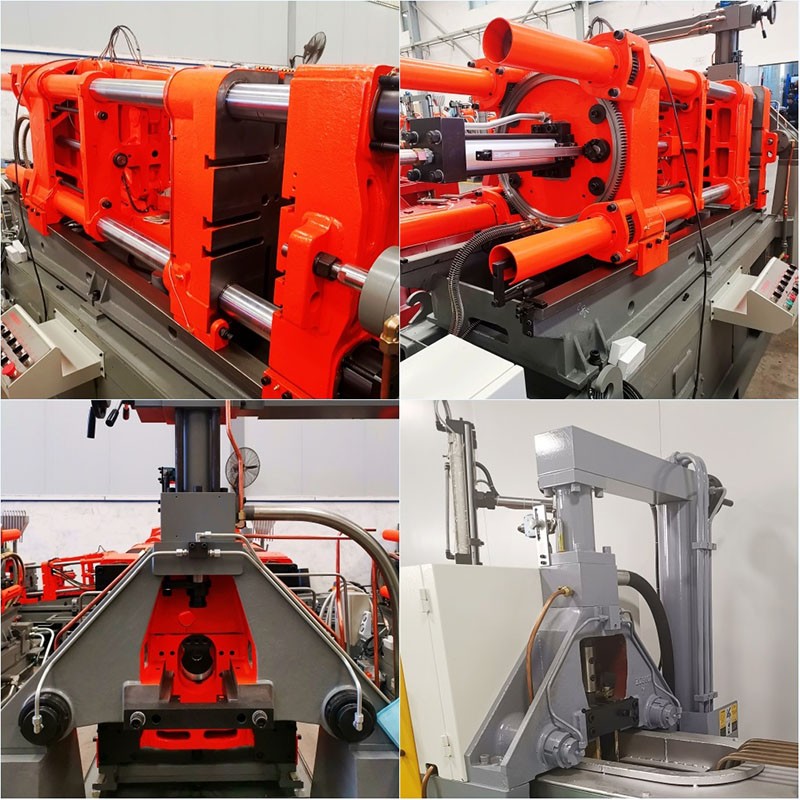

Highly Stable Toggle System
High strength casting iron platen, high tension alloy steel tie bars, safety and durable.Faster mold open & close,Faster accumulating, effectively shorten the cycle time.
Yomato zinc die casting machine,standard with electrical melting furnace,aviaiable to suplly the fuel furnace,nature gas furnace as special requirement.

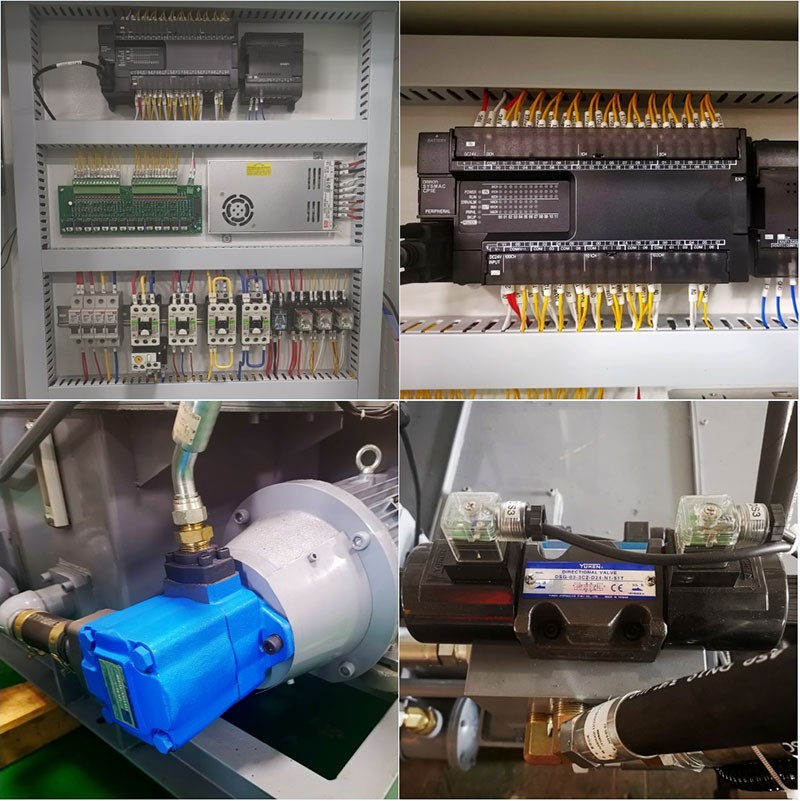

Stable Electrical Control System
The ORMON PLC control system (touch screen) is safe and reliable with high control accuracy. Separate integration of the electrical and electronic systems effectively enhances the stability of the electrical circuit.
Precision Power System
High preformance vane pump,low noize,optimized oil control,improve production efficiency.
Yomato zinc die casting machine supply the servo system for machine energy saving as optional.
Servo motor:Hilectro(China famous brand)+Servo Pump:Sumitomo brand+Servo Driver:MODROL
Or customized making under special requirements brands.
Air ejection system and spraying system(optional device)

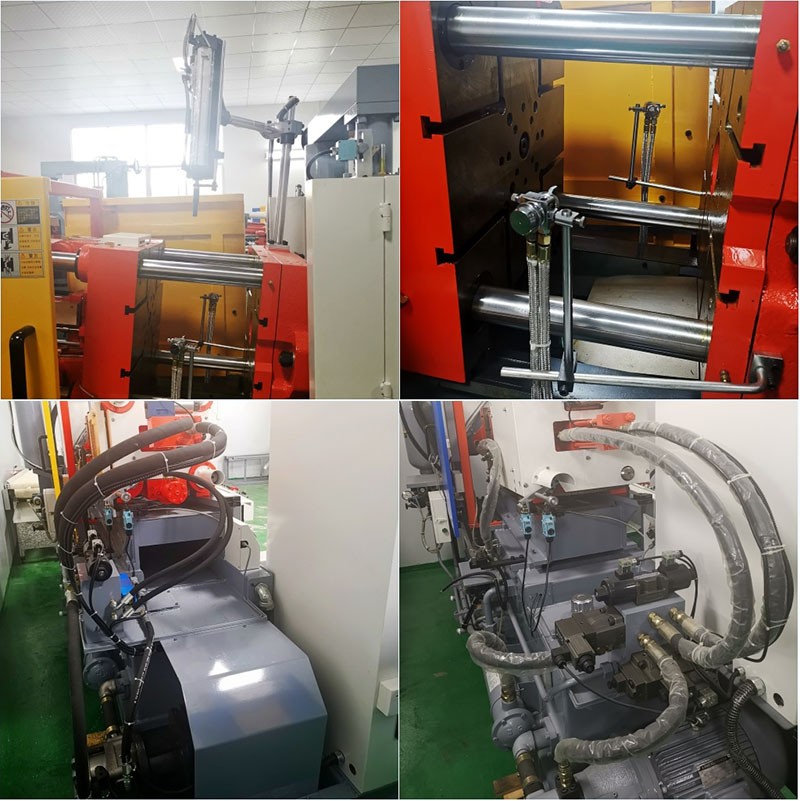

Yomato zinc die casting machine supply the air ejection from top side,to eject the parts fastly,to shorten the cycle time and improve the production.
The spraying system also aviable to supply.
Conveying system(optional device)
Yomato zinc die casting machine supply the special converying system,to keep the automatic production with lower cost,applied with more production requirement.
