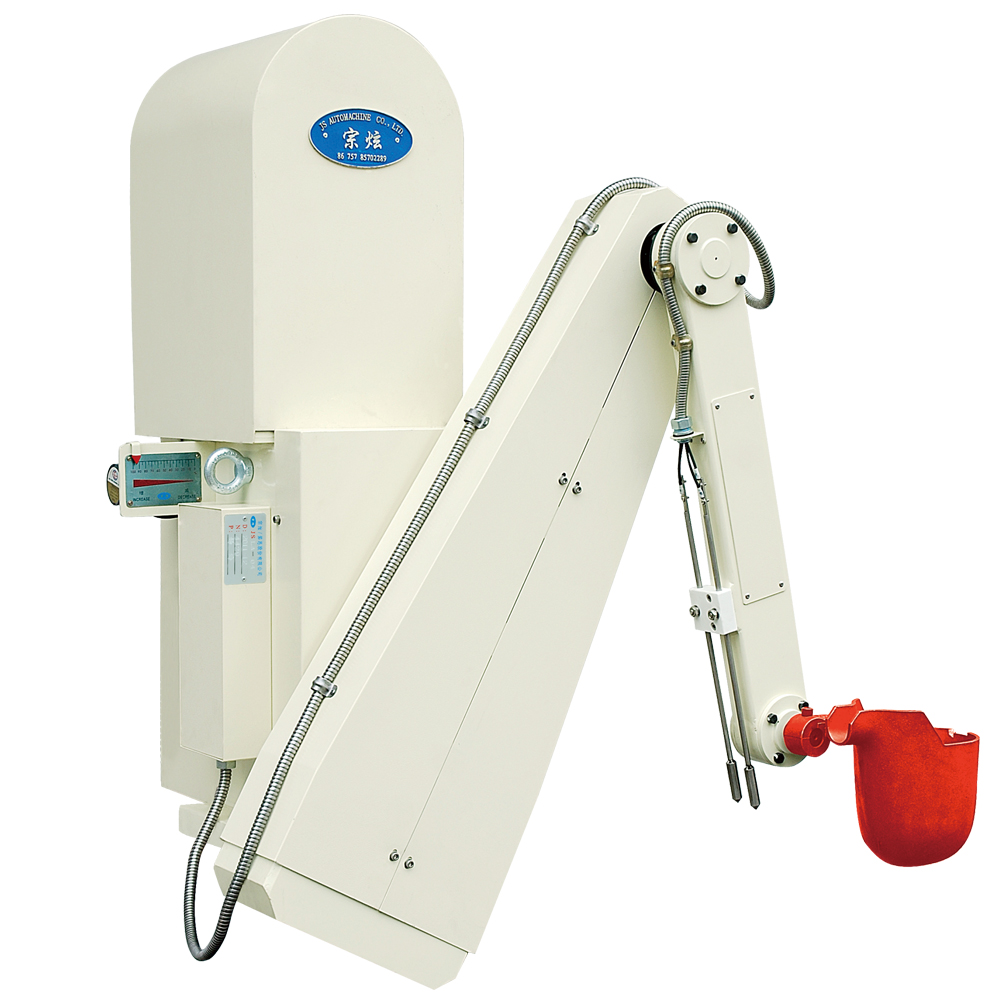

Simple Auto Ladler for 230-400Ton

High Preformance
High Efficiency
High Precision
Higher Stability

Product Description

1.Gives stable and precise volume of molten aluminum; it`s easy to operate.

2.While the arm is moving, the speed can be adjusted by turning the speed adjustment knob.

3.The ladle can stop at a very precise position for pouring. In single arm model, the molten metal volume is stable, thereby reducing the rejection rate.

4.The ladle arm forward /return and pouring/scooping are controlled separately by inverters, thereby increasing the lading speed, improve production efficiency and lower rejection rate.

5.The electrical components are controlled by PLC, with build-in error code display for easier maintenance.

6.The movement is smooth, avoiding spillage of molten aluminum.

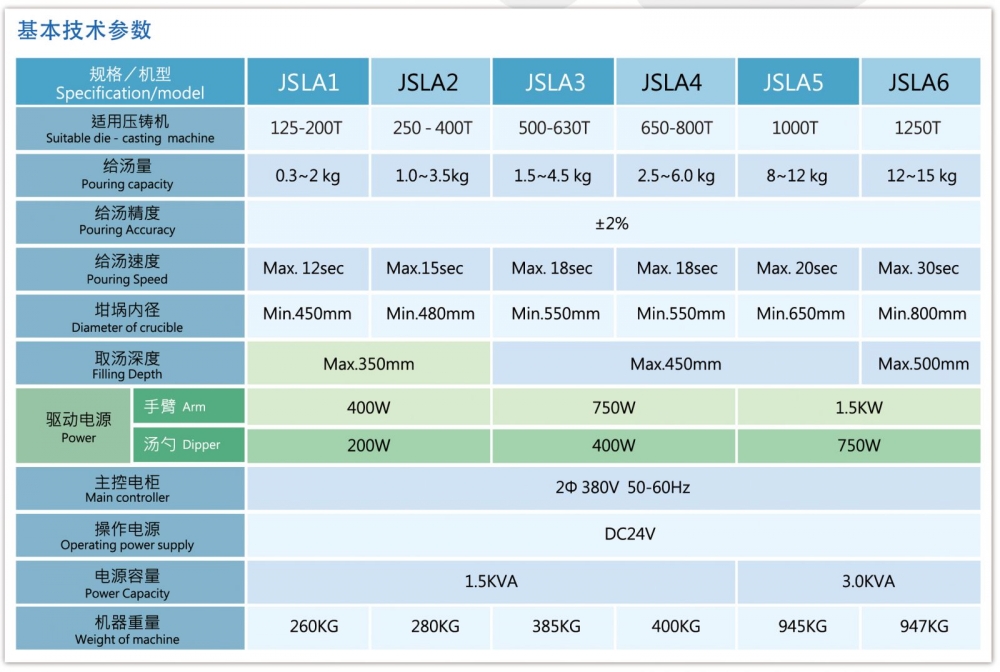

Specification List
