Manual Magnesium Melting Furnace DMR80kg/h

High Preformance
Energy Saving
High Safety
Higher Stability

Product Description

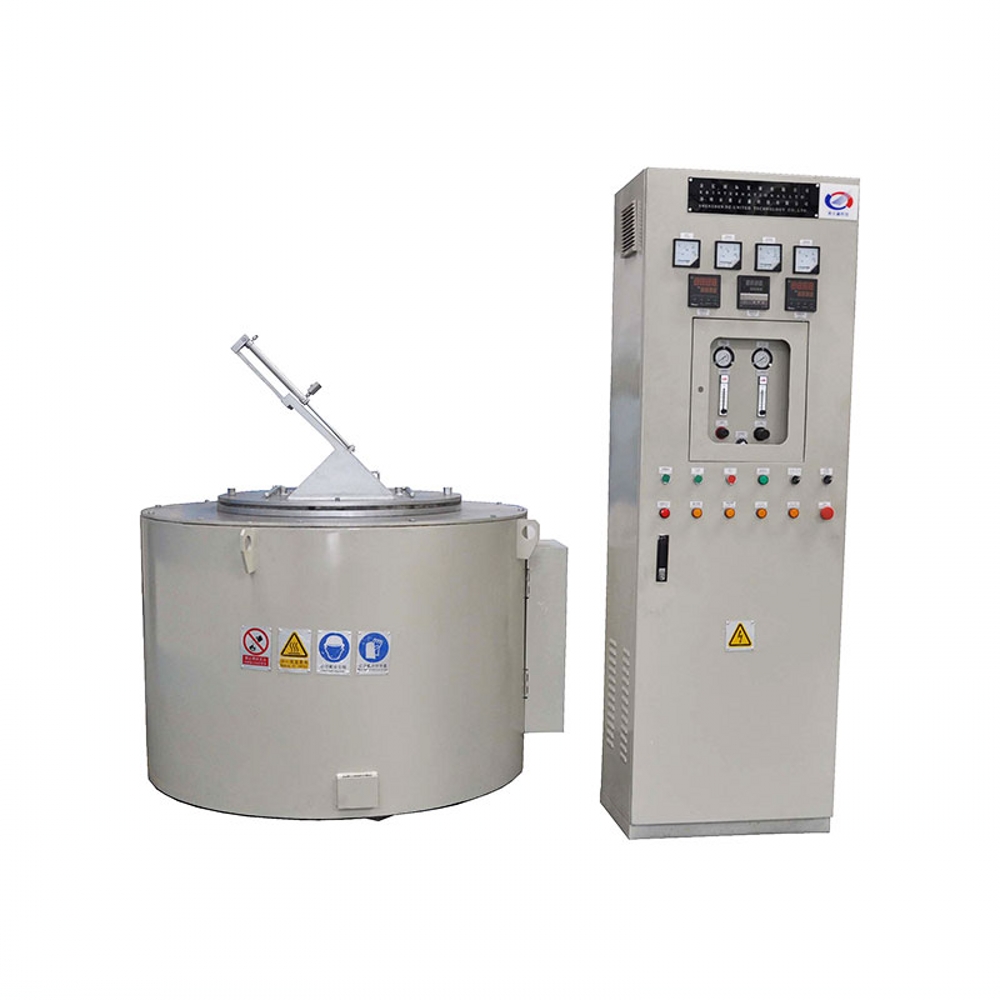

DMC-R Manual Magnesium Melting Furnace
- low energy consumption, high melting rate
- Complete gas protection device, uniform gas mixture, stable flow, adequate protection, equipped with automatic switching device
- Bi-metal composite steel plate is made of bismuth, does not pollute magnesium liquid, and has a long service life.
- The heating element works stably and has a long service life.
- Multiple thermocouples control furnace and furnace temperature
- Automatic alarm device: over temperature alarm, liquid leakage alarm, gas shortage alarm, etc.
- The hot work piece is made of special steel, high temperature stability; high temperature and corrosion resistance, no deformation; anti-oxidation, long service life; ensure the purity of molten metal, accurate and safe quantitative;
- Easy maintenance and easy replacement of parts
- Economical, low cost.
Specification List

Parameter Unit DMC200 DMC300 DMC500 DMR200 DMR300 DMR500 DMR800
Furnace size(L*W*H)
Mm φ1600*1350 φ1750*1550 φ1800*1400 1350*1050* 1250 1450*1150* 1350 1550*1350* 1450 1800*1400* 15650
Rated Volume Kg 250 350 550 250 350 550 800
Melting rate Kg/h 80 100 200 80 100 200 250
Crucible structure
room room Double room room Double room Double room Double room
Power V/Hz/Phase 380-420V/50-60Hz/Three-phase Five-wire
Rated power KW 60 75 120 60 75 120 180
Rated current A 90 120 180 90 120 180 270
Furnace working temperature ºC 850
Highest temperature of  magnesium liquid ºC 710
provide gas temperature ºC 350
(max.)Protection gas flow(max.) L/min 25 25 25 25 25 25 25
DIN45635-01-K1.2   noise dB(A) <85
Furnace weight Kg 1000 1200 2000 1000 1200 2000 3000
Suitable for die casting machine model T ≤300 ≤400 ≤650 ≤300 ≤400 ≤650 ≤900

Special note: The company reserves the right of final interpretation of the above product pictures and parameters!
