Magnesium Melting Furnace 80kg/h 80kg

High Preformance
Energy Saving
High Safety
Higher Stability

Product Description

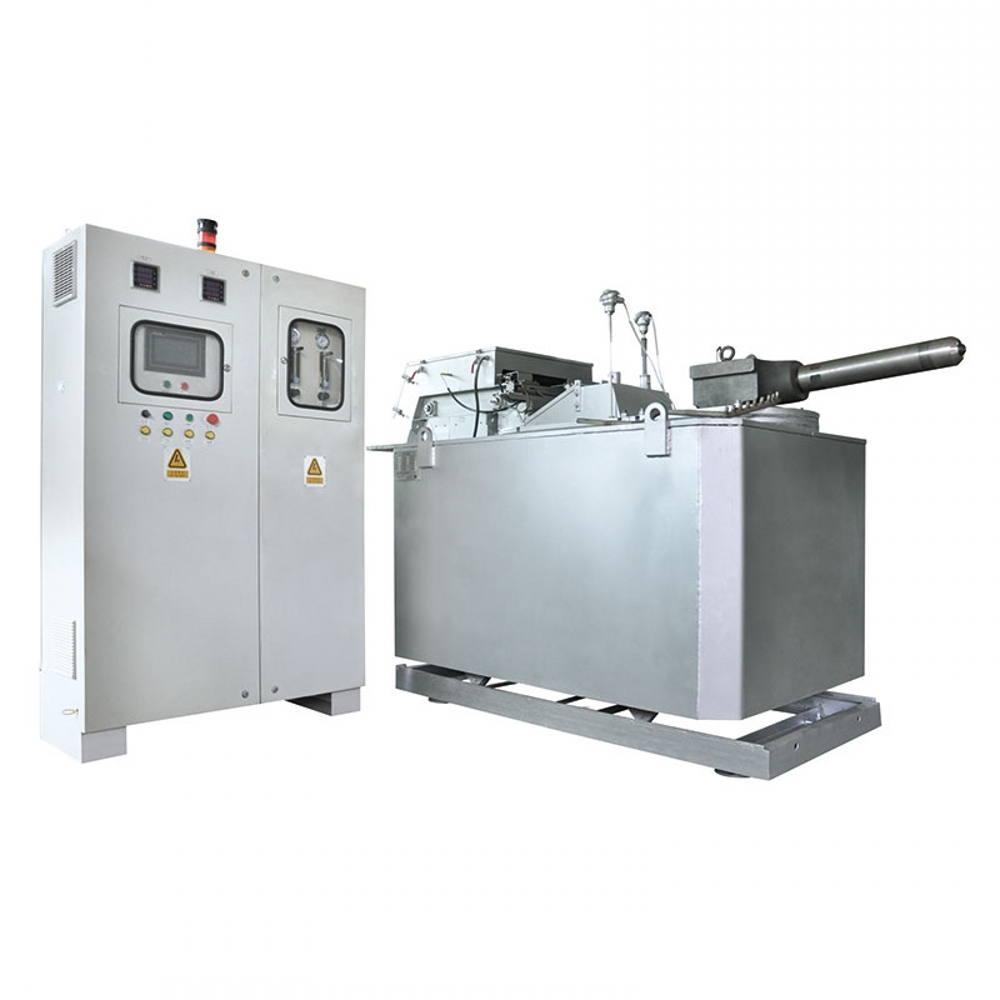

DMH hot chamber Magnesium Melting Furnace
Structural system:
1) The concrete made of special composite steel plate does not pollute the magnesium liquid, has anti-corrosion structure inside, and has long service life.
2) 1.2888 material manufacturing material pot and other spare parts, long service life
3) Using a radiant tube or other heating method, the heater can be quickly replaced
4) Stainless steel casing and panel, corrosion resistant, high temperature resistant
5) Imported thermocouple, accurate temperature control and high service life
6) Temperature control static ± 1 ° C, dynamic ± 3 ° C
7) Preheater adopts clamping mechanism to make liquid level control stable and accurate feeding (patent: ZL201420137471.2)
8) Preheating machine has low energy consumption and good preheating effect.
Specification List

Parameter Unit DMH80 DMH125 DMH200 DMH315 DMH500
Furnace size mm 1200*650*1000 1450*850*1020 1600*900*1020 1650*900*1020 1650*900*1020
Rated capacity Kg 200 300 300 500 500
Melting rate Kg/h 80 120 120 220 220
Crucible structure . Signal room
Power
380-420V/50-60Hz/Three-phase Five-wire
Rated power KW 30 45 45 75 75
Rated current A 45 70 70 110 110
Highest  Furnace work temperature ºC 850
Highest work  temperature of magnesium liquid ºC 710
Gas supply temperature ºC 350
(max.)
Protection gas flow(max.)
L/min 10 10 10 25 25
Inside hole of material pot mm 55 65 70 80 85
DIN45635-01-K1.2   noise dB(A) <85
Furnace weight kg 1200 1500 1600 2500 2500
Matching casting machine T 60-88 100-150 160-200 300-400 500-600

Special note: The company reserves the right of final interpretation of the above product pictures and parameters!
