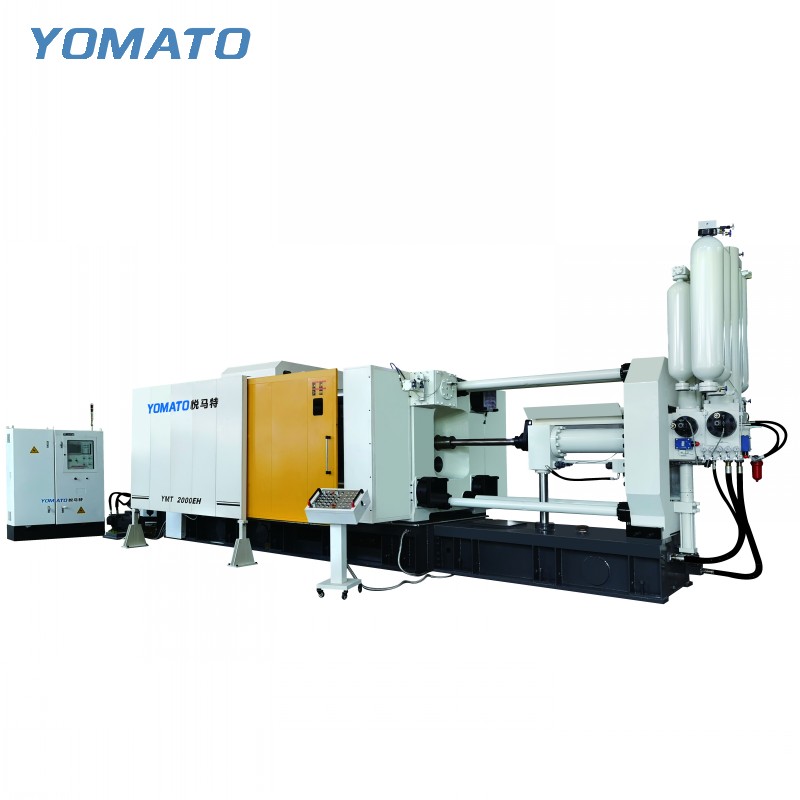

Magnesium Die Casting Machine 2000Ton

High Preformance
High Efficiency
High Precision
Higher Stability

Product Description

Highlights of MMT Series Magnesium Die Casting Machine

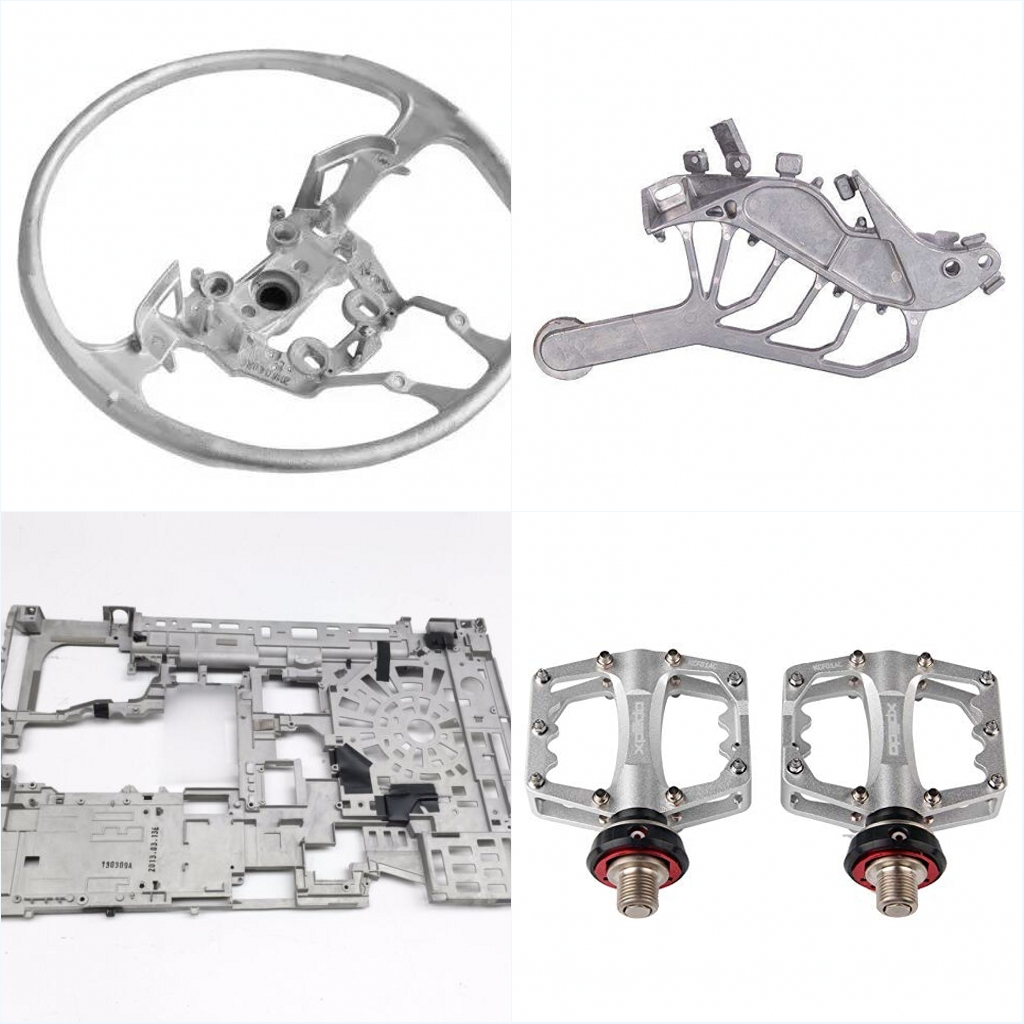

Magnesium light metal element, Magnesium light metal element has the excellent performances of light weight, high strength, good absorption of vibration and strong electromagnetic shielding. It is honor as "Green Engineer Materials in the 21st Century.It is widely used for the key components in the Pelds of autocar motorcycle, 3C, aerospace, electric tools and household electric, etc.
1.Good performance of injection system: max. air pressure injection speed >8m/s, time of pressure boost to form pressure <15ms;
2.On injection system can realize the stepless speed and pressure regulations by the pressure and Bowing volume transducers and the Germany Park big Bowing volume proportional plug-in valve used on injection part.
3.Equipped with fully enclosed electric door; quick and stable running, protect the device safe and reliable.
4.Germany Siemens high speed PLC control system and Japanese Fuji big screen color contact screen are adopted with stable operation, strong anti-interference, high control precision.
5.Injection speed and pressure curves are displayed and stored.
6.Status monitor and trouble diagnose (attached with alarm unit) can stop machine automatically when trouble takes place.
7.Very large-scale mould memory function, over ten groups of mould parameter can be stored.
8.Electric protection unit hydraulic safety lock and all kinds of safe protection units equipped according to standard CE can ensure the absolute safety of machine and human body.
9.Equipped with imported famous brand protection gas mixing unit, fully enclosed constant casting melter which ensures production safe.

Features of MMT Series Magnesium Die Casting Machine

Injection System of <a href=https://www.yomato-machinery.com/Magnesium-Die-Casting-Machine.html target='_blank'>Magnesium Die Casting Machine</a>

Superior Injection System

Yomato’s superior non-floating piston injection system has a low malfunction rate,built-in one-way valve control, shorten the pressure build-up time and ensure the good stability.

Lubrication System of <a href=https://www.yomato-machinery.com/Magnesium-Die-Casting-Machine.html target='_blank'>Magnesium Die Casting Machine</a>

Central Lubrication System

The toggles are equipped with an automatic central lubrication system that allows separate adjustments of the lubrication interval and oil volume and improves the lifespan and reliability of the machine.

Toggle System of <a href=https://www.yomato-machinery.com/Magnesium-Die-Casting-Machine.html target='_blank'>Magnesium Die Casting Machine</a>

Highly Stable Toggle System

The high-rigidity mold opening and closing mechanism meets the requirements of high-speed machines and it is resistant to impacts and has long lifespan. In addition, the fast clamping system is a standard feature for the purpose of high-speed production.

Hydraulic Control System of <a href=https://www.yomato-machinery.com/Magnesium-Die-Casting-Machine.html target='_blank'>Magnesium Die Casting Machine</a>

Precise Hydraulic Control System

Multi-level electrically operated proportional pressure and flow control, as well as low-pressure mold protection is available;Original imported high performance, low noise dual vane pump from Japan;Electromagnetic valve,Electrical hydraulic valve.

Electrical Control System of <a href=https://www.yomato-machinery.com/Magnesium-Die-Casting-Machine.html target='_blank'>Magnesium Die Casting Machine</a>

Stable Electrical Control System

The ORMON PLC control system (touch screen) is safe and reliable with high control accuracy. Separate integration of the electrical and electronic systems effectively enhances the stability of the electrical circuit.

Servo System of <a href=https://www.yomato-machinery.com/Magnesium-Die-Casting-Machine.html target='_blank'>Magnesium Die Casting Machine</a>

Energy Saving Servo System(optional device)

Yomato Magnesium Die Casting Machine supply the  servo system for machine energy saving as optional.

Servo motor:Hilectro(China famous brand)+Servo Pump:Sumitomo brand+Servo Driver:MODROL

Or customized making under special requirements brands.

Specification List

Item Unit MMT1600 MMT2000 MMT2500 MMT3000 MMT3500
Clamping Unit Clamping Force KN 16000 20000 25000 30000 35000
Platen Size(HxV) mm 2000x2000 2150x2150 2350x2350 2650x2650 2800x2800
Space Between Tie Bars(HxV) mm 1250x1250 1350x1350 1500x1500 1650x1650 1750x1750
Tie Bar Diameter mm 260 290 330 350 360
Mold Height(Min.-Max.) mm 550-1350 650-1600 750-1800 800-2000 850-2000
Clamping Stroke mm 1000 1400 1500 1500 1600
Ejection Stroke mm 250 300 320 320 320
Ejection Force KN 600 650 800 900 900

Injection Unit Injection Force KN 1280 1500 1800 2100 2400
Injection Stroke mm 980 1050 1100 1150 1400
Injection Position mm 0,-350 0,-350 - 200,- 400 - 250,- 450 - 300,- 600
Injection Plunger Diameter mm 110-150 120-160 140-180 150-190 160-200
Injection Weight(Mg) KG 17.2-32 22-38 31-59 37-60 52-83
Casting Pressure(Intensify.) MPa 134-72 132-74 116-70 118-74 120-77
Casting Area cm2 1185-2205 1505-2680 2138-3534 2520-4050 2900-4540
Max.Casting Area(40MPa) cm2 4000 5000 6250 7500 8750
Casting Flange Protrusion mm 25-0.05 25-0.05 30-0.05 30-0.05 35-0.05
Casting Flange Diameter mm 260 260 280 280 320
Plunger Penetration mm 380 450 500 550 600

Others System Working Pressure MPa 16 16 16 16 16
Motor Power KW 90 110 135 165 220
Oil Tank Capacity L 2500 3000 3400 3600 4600
Machine Weight KG 105000 130000 180000 220000 250000
Machine Dimensions(LxWxH) m 13x4x4.2 14x4.2x4.5 14.8x4.8x4.6 15.8x5x4.8 16x5.38x5.3
