Electrical Magnesium Dosing Furnace 250kg/h

High Preformance
Energy Saving
High Safety
Higher Stability

Product Description

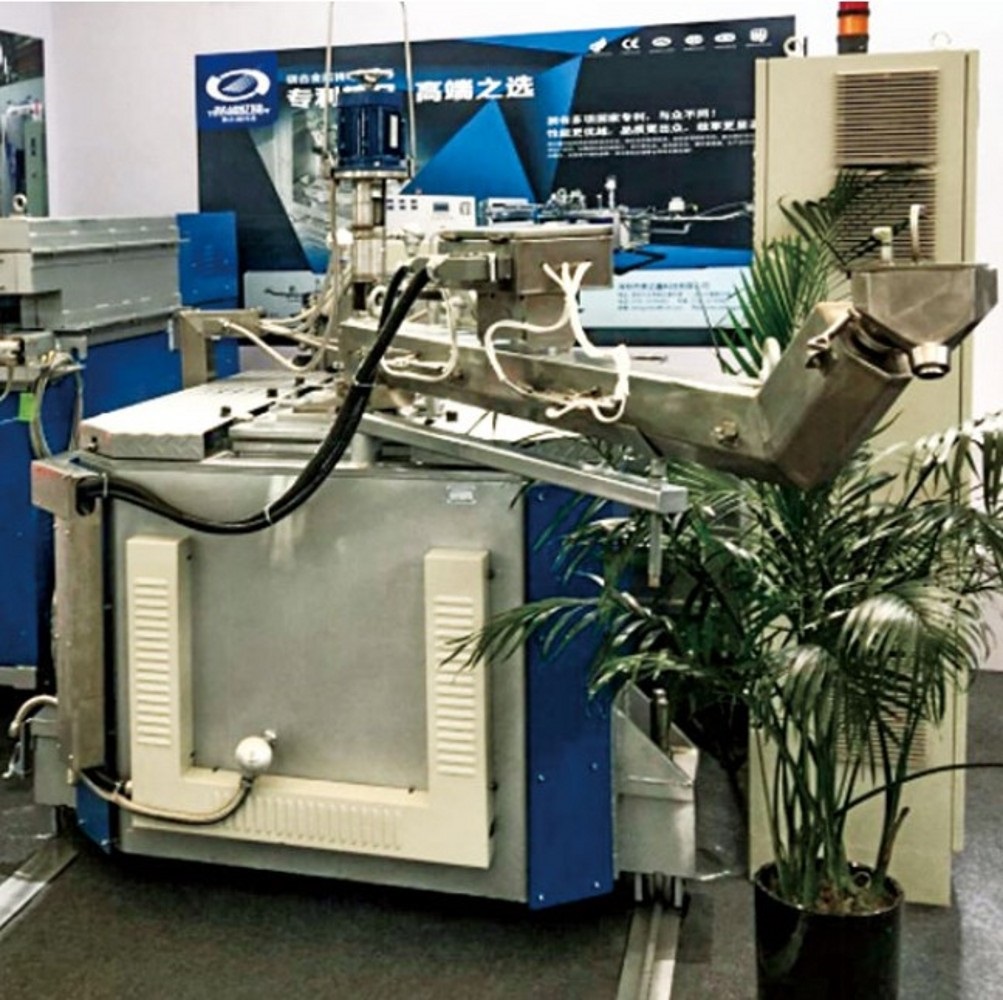

DMD-M Electrical Magnesium Dosing Furnace

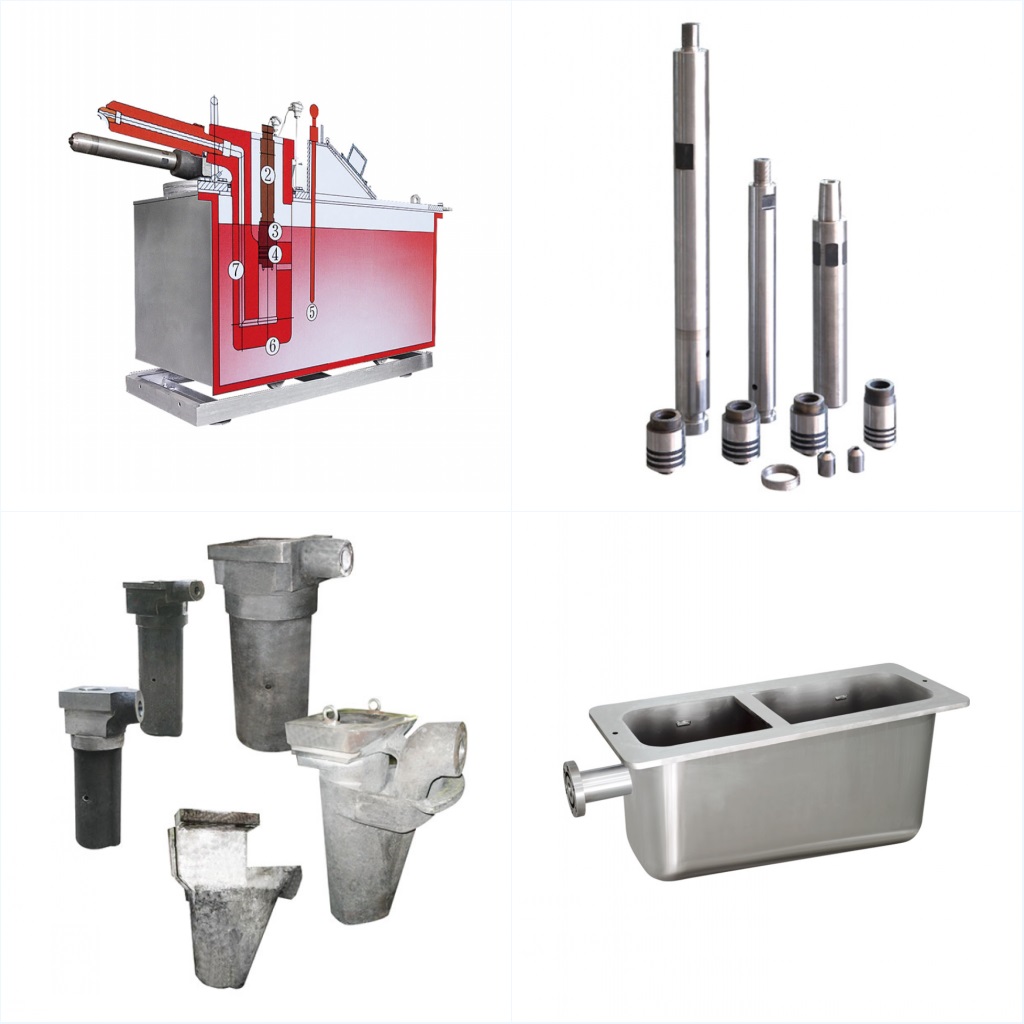

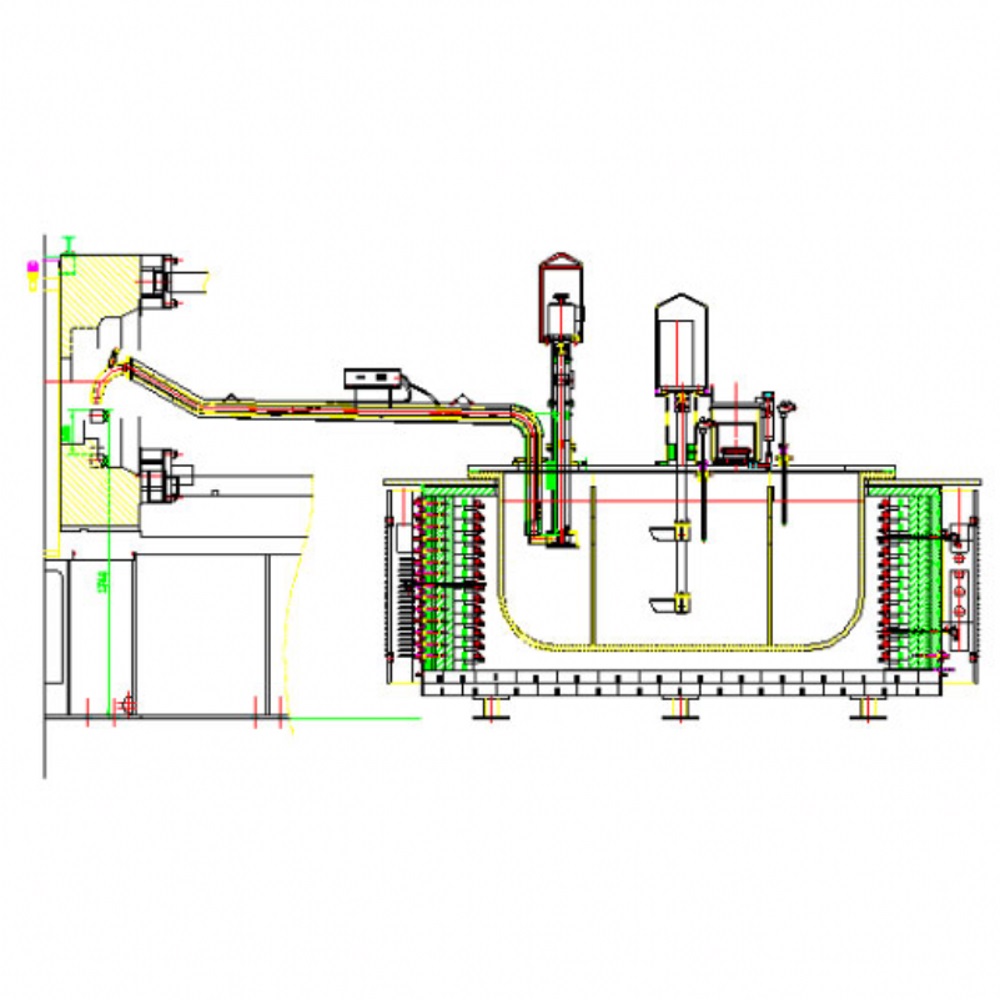

Magnesium Alloy Furnace structure system:
1) The concrete made of special composite steel plate does not pollute the magnesium liquid, has anti-corrosion structure inside, and has long service life.
2) Using a radiant tube or other heating method, the heater can be quickly replaced
3) Stainless steel casing and panel, corrosion resistant, high temperature resistant
4) Imported thermocouple, accurate temperature control and high service life
5) Quantitative pump instantaneous flow design, maintenance time of more than 30 days (patent: ZL201220249304.8)
6) The transmission tube is made of special corrosion-resistant materials, which can be quickly changed, and the maintenance time is more than 30 days (patent: ZL201120347014.2)
7) Preheater adopts clamping mechanism to make liquid level control stable and accurate feeding (patent: ZL201420137471.2)
8) Preheating machine has low energy consumption and good preheating effect.
Specification List

Parameter Unit DMD250M DMD300M DMD500M DMD800M DMD1000M DMD1200M DMD1500M
Furnace size(L*W*H)
Mm 2000*800* 1000 2750*950* 1300 3060*950* 1300 3400*1000* 1900 3650*1450* 2350 3650*1450* 2350 3650*1450* 2350
Rated Volume Volume Kg 250 350 550 800 1100 1200 1500
Melting rate Kg/h 80 100 200 250 300 400 450
Crucible structure
Double room Double room Double room Double room Double room Double room Double room
Power V/Hz/Phase 380-420V/50-60Hz/Three-phase Five-wire
Rated power KW 60 75 120 180 220 260 300
Rated current A 90 120 180 270 330 390 450
Highest Furnace working temperature ºC 850
Highest work  temperature of magnesium liquid ºC 710
provide gas temperature ºC 350
Transportation temperature ºC 680-720
quantitative way
Centrifugal
Quantitative range Kg 0.2~5 0.2~5 0.2~5 0.5~10 0.5~10 0.5~20 0.5~20
(max.)Protection gas flow(max.) L/min 25 25 25 25 50 50 50
Lifting height of lifting frame mm 150 150 150 150 150 250 250
Lift moving distance mm 300 300 300 300 300 500 500
PIPE of rotation of lifting frame ° ±60
DIN45635-01-K1.2   noise dB(A) <85
Preheater power KW 20 20 20 30 30 60 60
Furnace weight Kg 1200 1500 2400 3000 4000 4500 5500
Suitable for die casting machine model T ≤300 ≤400 ≤650 ≤900 ≤1250 ≤1250 ≤1650
Special note: the company for the above product pictures and parameters to retain the right of final interpretation!
