Pressure Die Casting Machine

  • Pressure Die Casting Machine 30Ton
  • Pressure Die Casting Machine 30Ton
  • Pressure Die Casting Machine 30Ton
  • Pressure Die Casting Machine 30Ton
  • Pressure Die Casting Machine 30Ton
  • Pressure Die Casting Machine 30Ton
Pressure Die Casting Machine 30TonPressure Die Casting Machine 30TonPressure Die Casting Machine 30TonPressure Die Casting Machine 30TonPressure Die Casting Machine 30TonPressure Die Casting Machine 30Ton

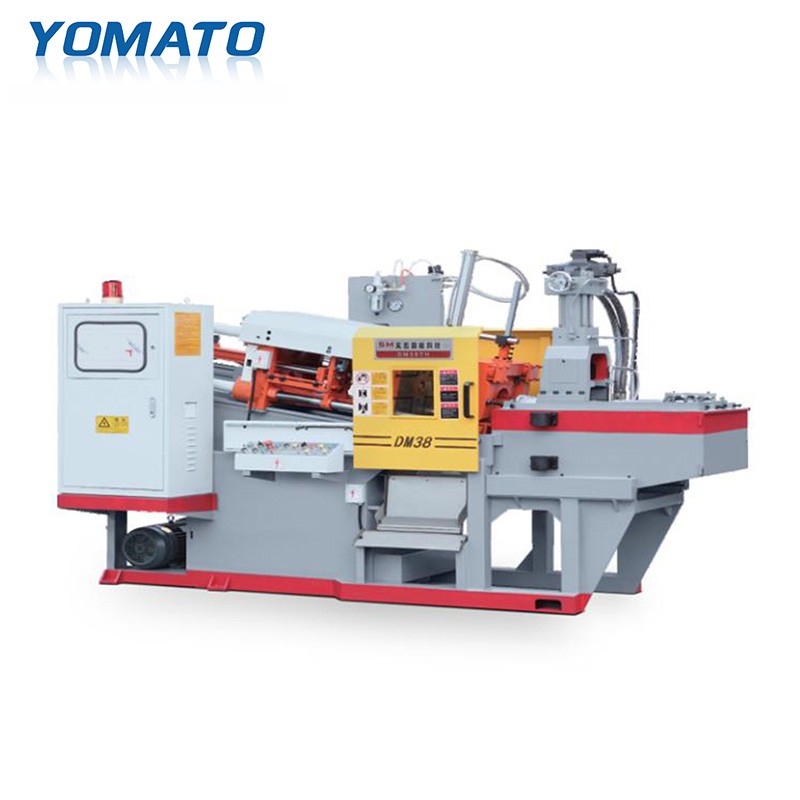

Pressure Die Casting Machine 30Ton

  • Energy Saving
  • High Efficiency
  • High Precision
  • Higher Stability
  • Product description: Leave your E-mail to Get Quotation within 2 Hours. Inquiry Now. E-mail:[email protected]
  • INQUIRY   EMAIL

Leave your E-mail to Get Quotation within 2 Hours. Inquiry Now.

E-mail:[email protected]

Product Description

Highlights of HT Series Pressure Die Casting Machine 30Ton

  1. Air Injection Speed ≥5m/s;
  2. Multi-stage pressure sectional control mold open & close and low-pressure mold close protection;
  3. 2 Stages injection controls with large volume air-bag accumulator;
  4. Adopt the Electric Chain for mold adjustment;
  5. More suitable for automatically production.

Features of HT Series pressure die casting machine 30Ton

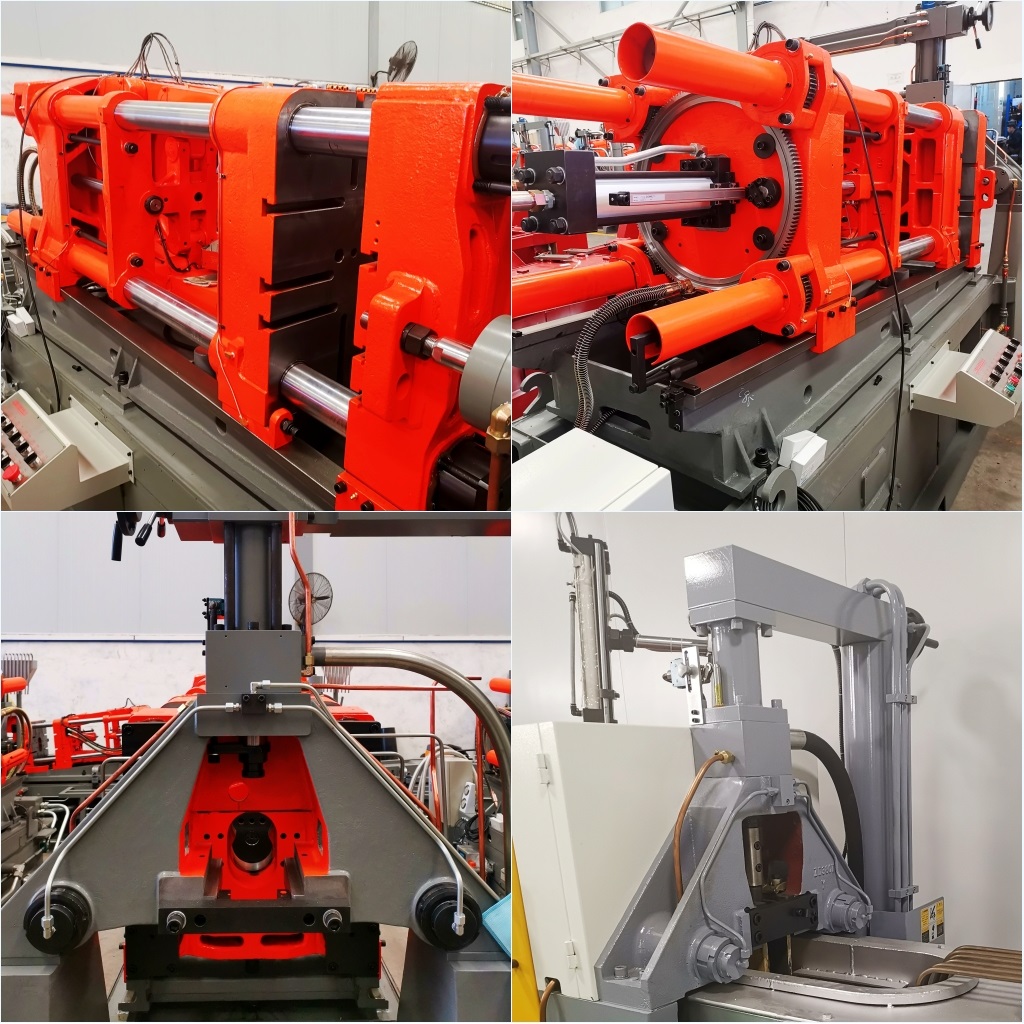

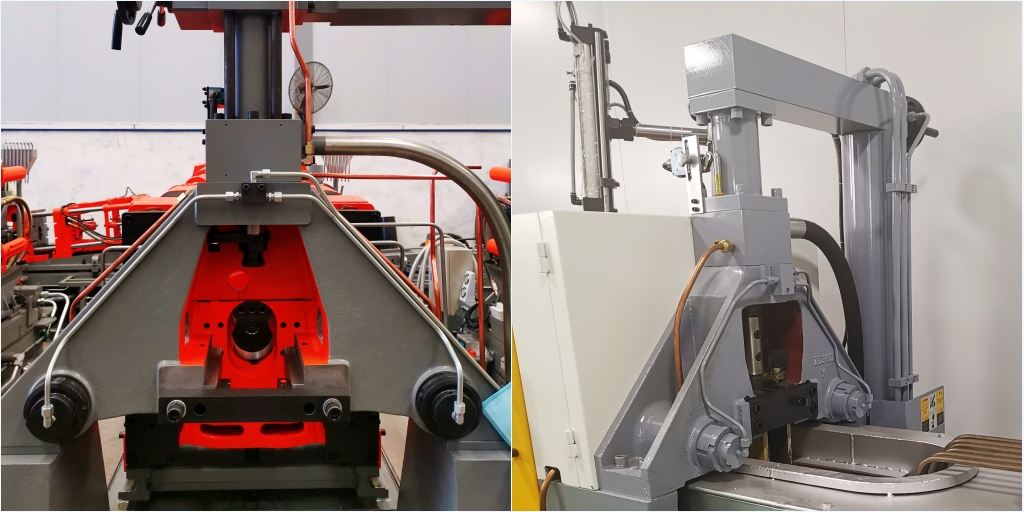

Injection System of <a href=https://www.yomato-machinery.com/ target='_blank'>pressure die casting machine</a> 30Ton

Superior Injection System

Yomato pressure die casting machine injection system has powerful structure and strong design to ensure the good stability.

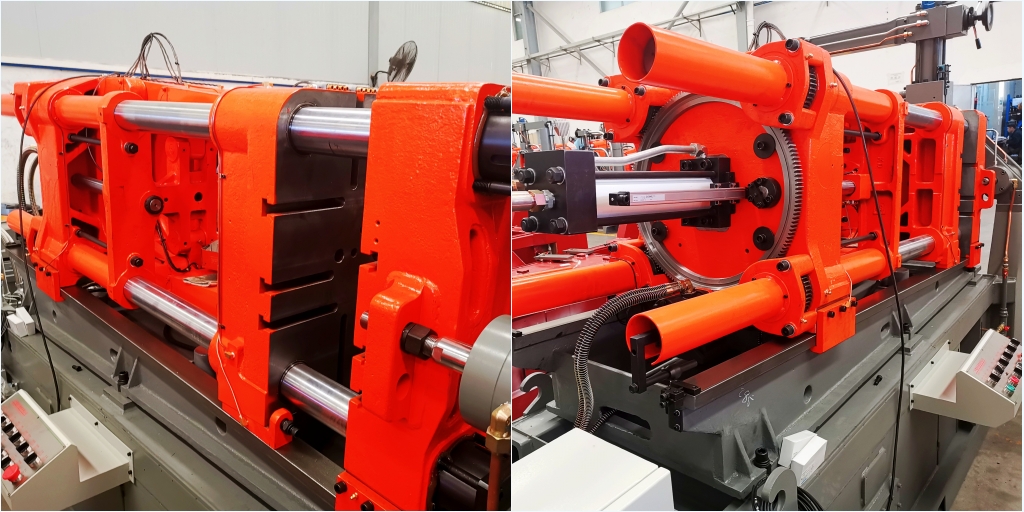

Toggle System of Pressure Die Casting Machine 30Ton

Highly Stable Toggle System

High strength casting iron platen, high tension alloy steel tie bars, safety and durable.Faster mold open & close,Faster accumulating, effectively shorten the cycle time.

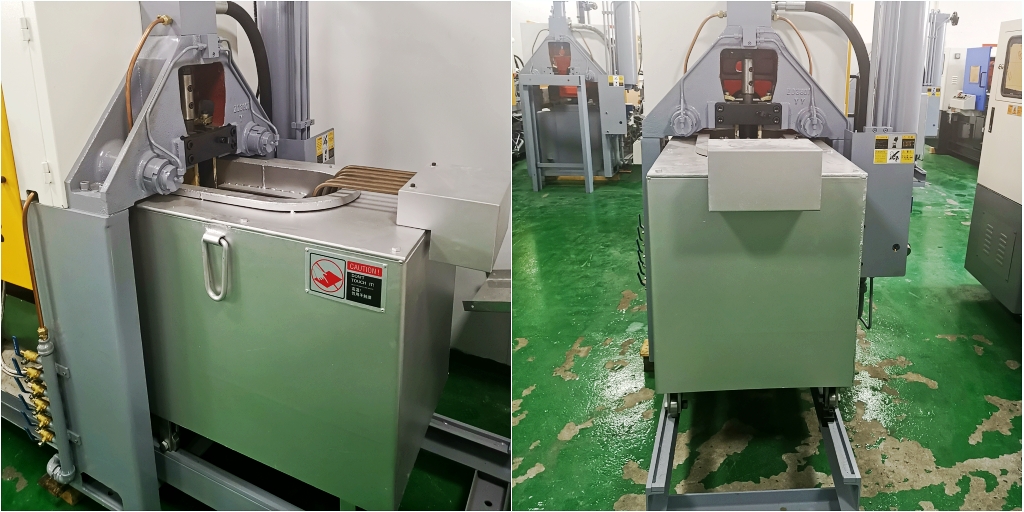

Melting Furnace System of Pressure Die Casting Machine 30Ton
Melting Furnace System

Yomato pressure die casting machine,standard with electrical melting furnace,aviaiable to suplly the fuel furnace,nature gas furnace as special requirement.

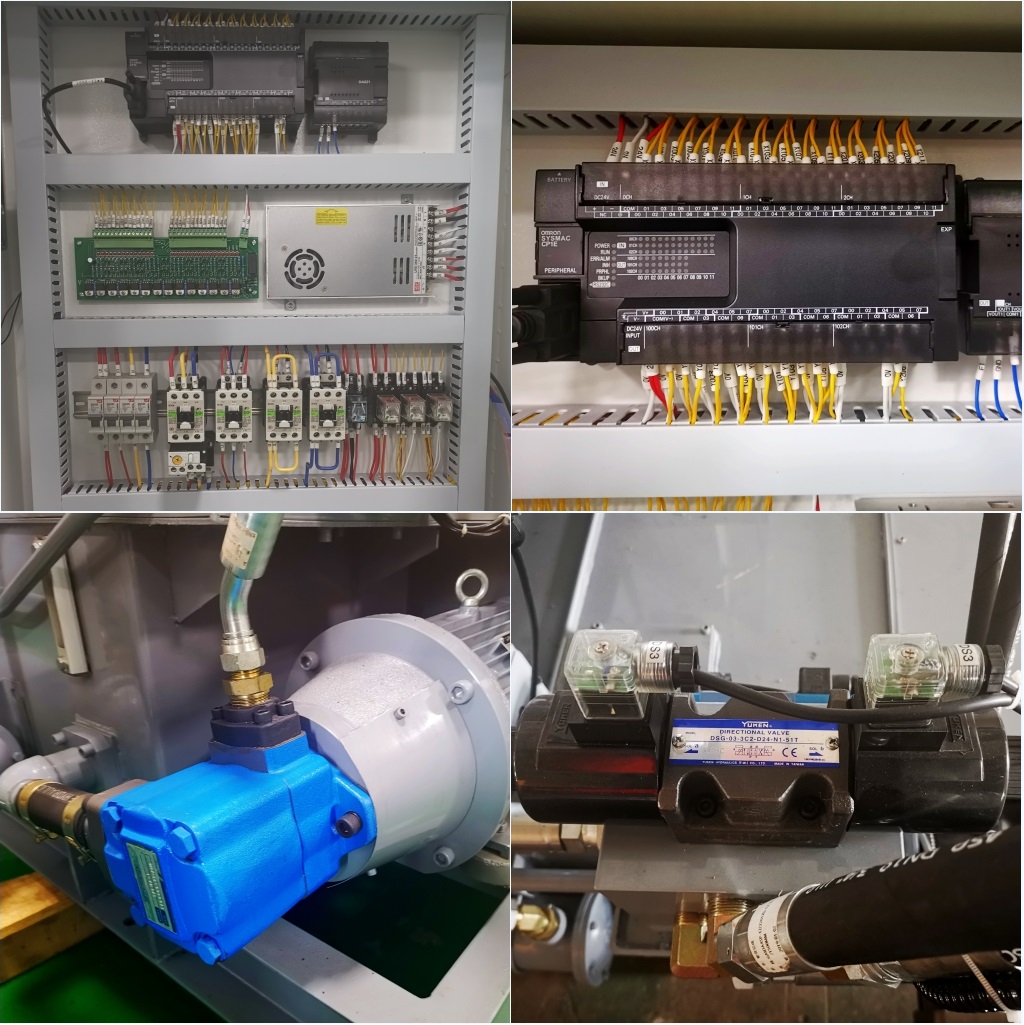

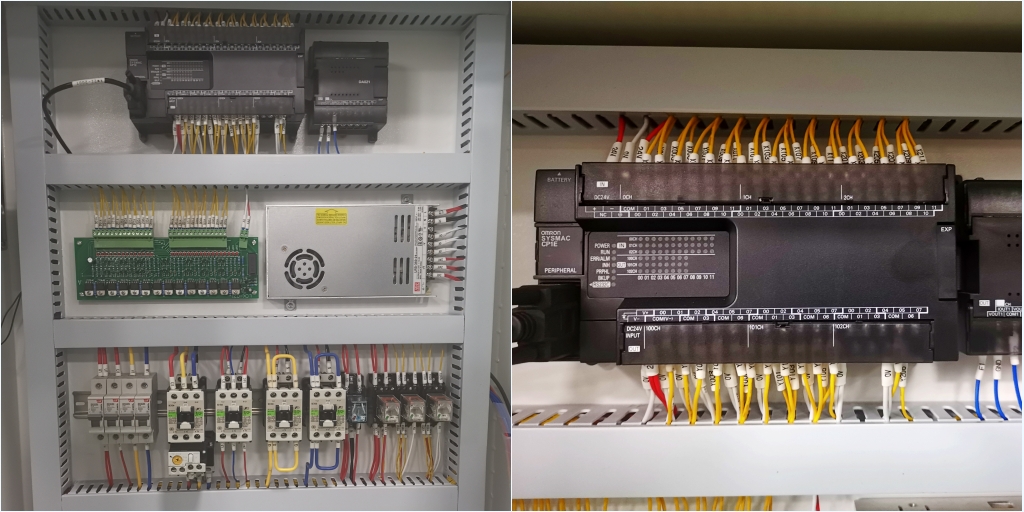

Electrical Control System of Pressure Die Casting Machine 30Ton

Stable Electrical Control System

The ORMON PLC control system (touch screen) is safe and reliable with high control accuracy. Separate integration of the electrical and electronic systems effectively enhances the stability of the electrical circuit.

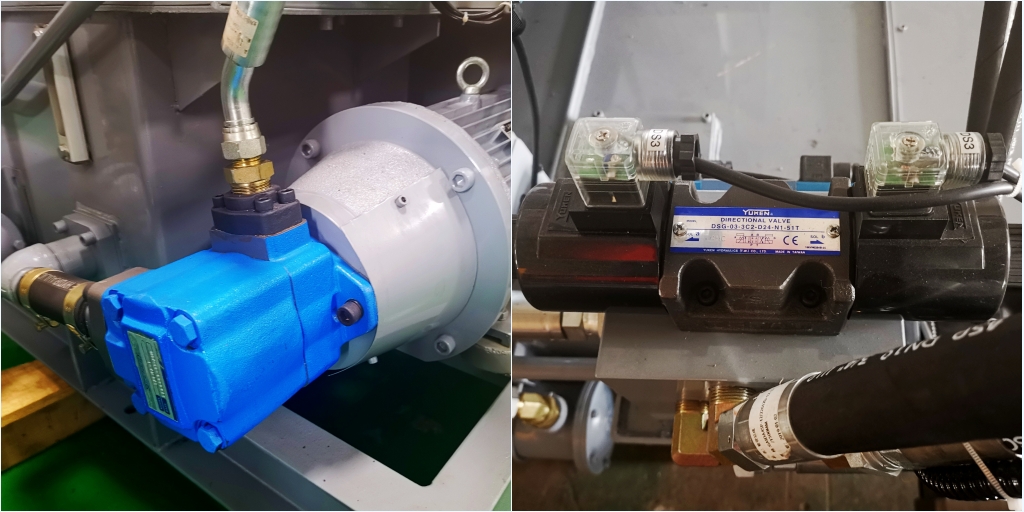

Power System of Pressure Die Casting Machine 30Ton

Precision Power System

High preformance vane pump,low noize,optimized oil control,improve production efficiency.

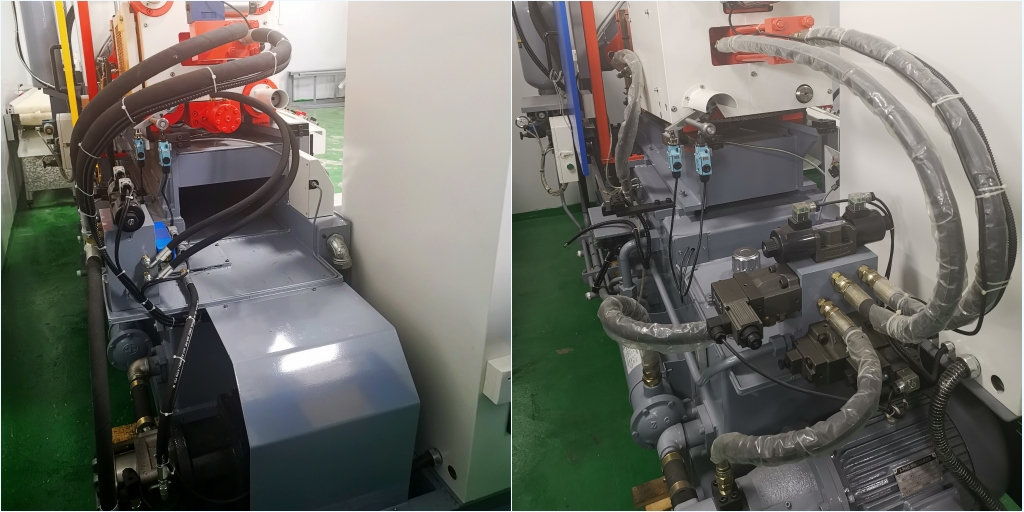

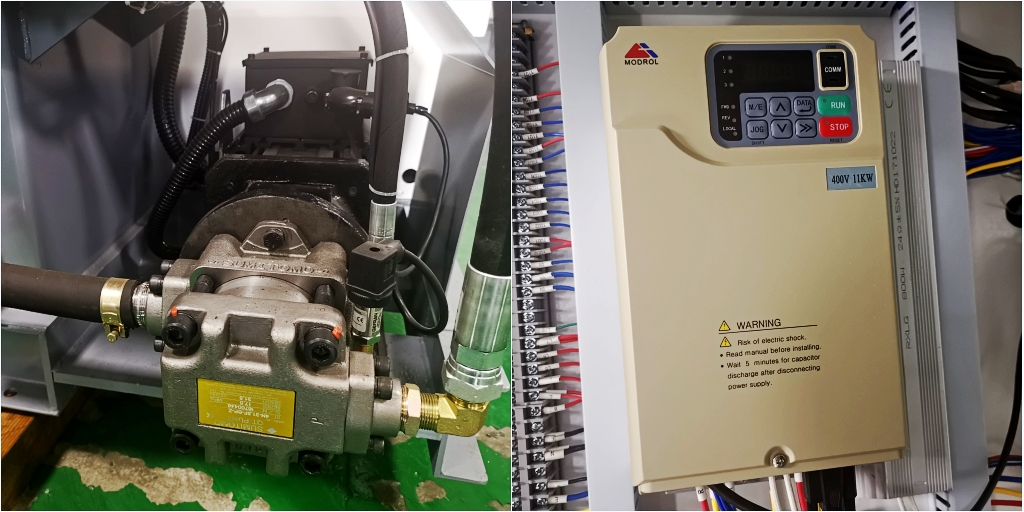

Servo System of Pressure Die Casting Machine 30TonEnergy Saving Servo System

Yomato pressure die casting machine supply the  servo system for machine energy saving as optional.

Servo motor:Hilectro(China famous brand)+Servo Pump:Sumitomo brand+Servo Driver:MODROL

Or customized making under special requirements brands.

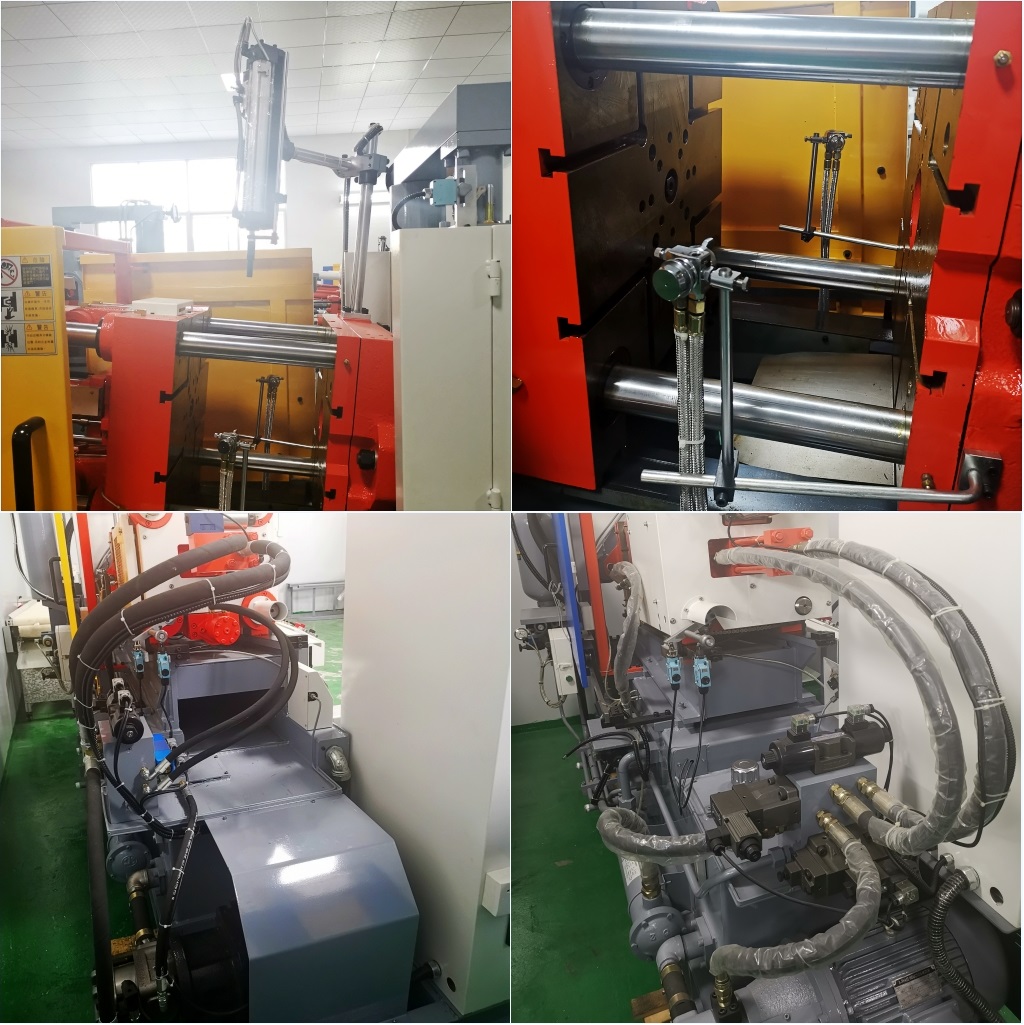

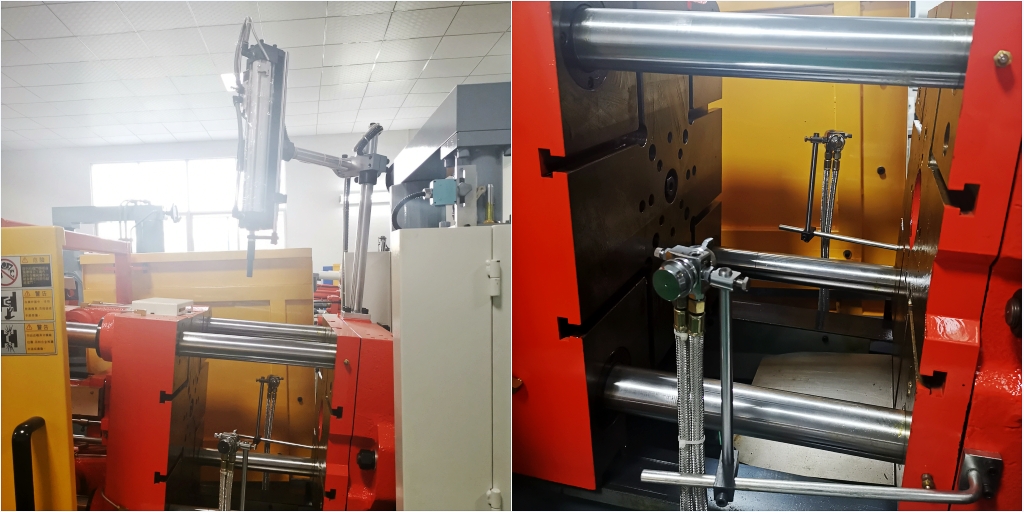

Air ejection and spraying system of Pressure Die Casting Machine 30Ton

Air ejection system and spraying system(optional device)

Yomato pressure die casting machine supply the  air ejection from top side,to eject the parts fastly,to shorten the cycle time and improve the production.

The spraying system also aviable to supply.

Conveying system of Pressure Die Casting Machine 30Ton

Conveying system(optional device)

Yomato pressure die casting machine supply the special converying system,to keep the automatic production with lower cost,applied with more production requirement.


Specification List
Item Unit HT30 HT40 HT50 HT90
Clamping Unit Clamping Force KN 300 400 500 900
Space Between Tie Bars mm 255x255 309x309 309x309 357x357
Clamping Stroke mm 180 215 215 270
Mold Thickness (min-max) mm 100-270 120-340 120-340 150-400
Platen Size (H x V) mm 390x425 450x500 450x500 540x580
Tie Bars Diameter mm 45 50 50 63
Ejection Force KN 40 40 40 50
Ejection Stroke mm 50 55 55 60

Injection Unit Injection Force KN 45 60 60 90
Injection Stroke mm 100 120 120 130
Nozzle Traverse Stroke mm 200 160 200 200
Shot Position mm 0-40 0-40 0-40 0-60
Plunger Diameter mm 36/40 30/40/45 30/40/45 45/50/55
Shot Weight(Zn) kg 0.50/0.65 0.60/0.78/0.98 0.60/0.78/0.98 1.02/1.26/1.53
Crucible Capacity(Zn) L/kg 50/325 50/325 50/325 55/360
Casting Pressure Mpa 35/28 42/32.2/25.4 42/32.2/25.4 42/34/28.1
Maximum Casting Area cm² 120 150 150 220

Others System Pressure Mpa 10.5 10.5 10.5 10.5
Motor Power KW 7.5 7.5 7.5 11
Oil Tank Capacity L 200 200 200 240
Machine Weight kg 2500 2800 2800 3600
Machine Dimensions(LxWxH) m 3.3x1.25x1.8 3.5x1.35x1.9 3.5x1.35x1.9 3.95x1.45x2
