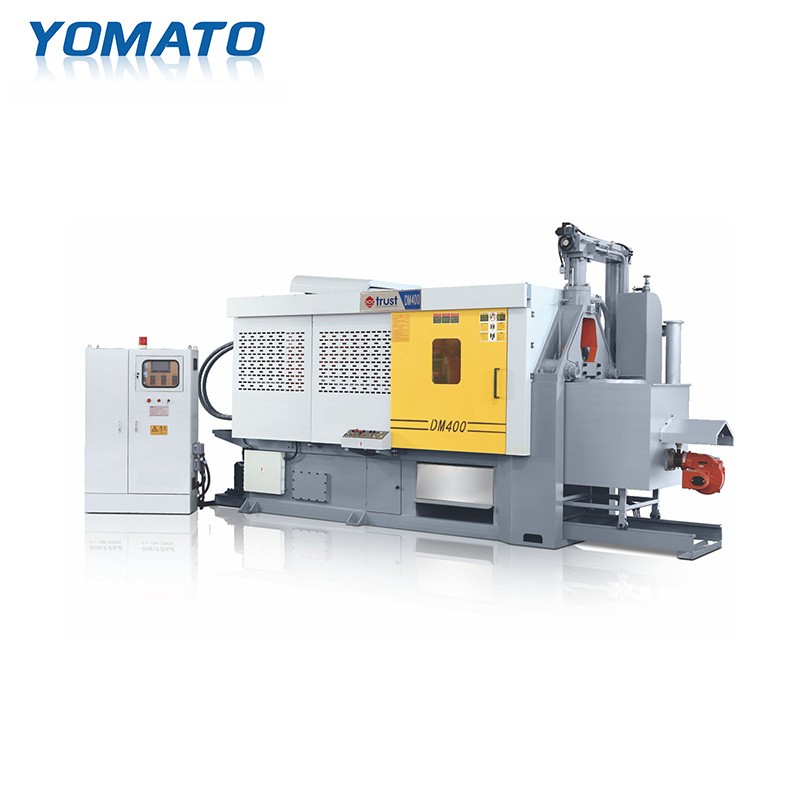

Pressure Die Casting Machine

  • Pressure Die Casting Machine 280Ton
  • Pressure Die Casting Machine 280Ton
  • Pressure Die Casting Machine 280Ton
  • Pressure Die Casting Machine 280Ton
  • Pressure Die Casting Machine 280Ton
  • Pressure Die Casting Machine 280Ton
Pressure Die Casting Machine 280TonPressure Die Casting Machine 280TonPressure Die Casting Machine 280TonPressure Die Casting Machine 280TonPressure Die Casting Machine 280TonPressure Die Casting Machine 280Ton

Pressure Die Casting Machine 280Ton

  • Energy Saving
  • High Efficiency
  • High Precision
  • Higher Stability
  • Product description: Introduction of Pressure Die Casting Machine 280Ton, include the highlights, features and specification list of Pressure Die Casting Machine.
  • INQUIRY   EMAIL

Leave your E-mail to Get Quotation within 2 Hours. Inquiry Now.

E-mail:sale[email protected]

Product Description

Highlights of HT Series Pressure Die Casting Machine 280Ton

  1. Air Injection Speed ≥5m/s;
  2. Multi-stage pressure sectional control mold open & close and low-pressure mold close protection;
  3. 2 Stages injection controls with large volume air-bag accumulator;
  4. Adopt the Electric Chain for mold adjustment;
  5. More suitable for automatically production.

Features of HT Series Pressure Die Casting Machine 280Ton


Injection System of <a href=https://www.yomato-machinery.com/ target='_blank'>pressure die casting machine</a> 280Ton

Superior Injection System

Yomato pressure die casting machine injection system has powerful structure and strong design to ensure the good stability.

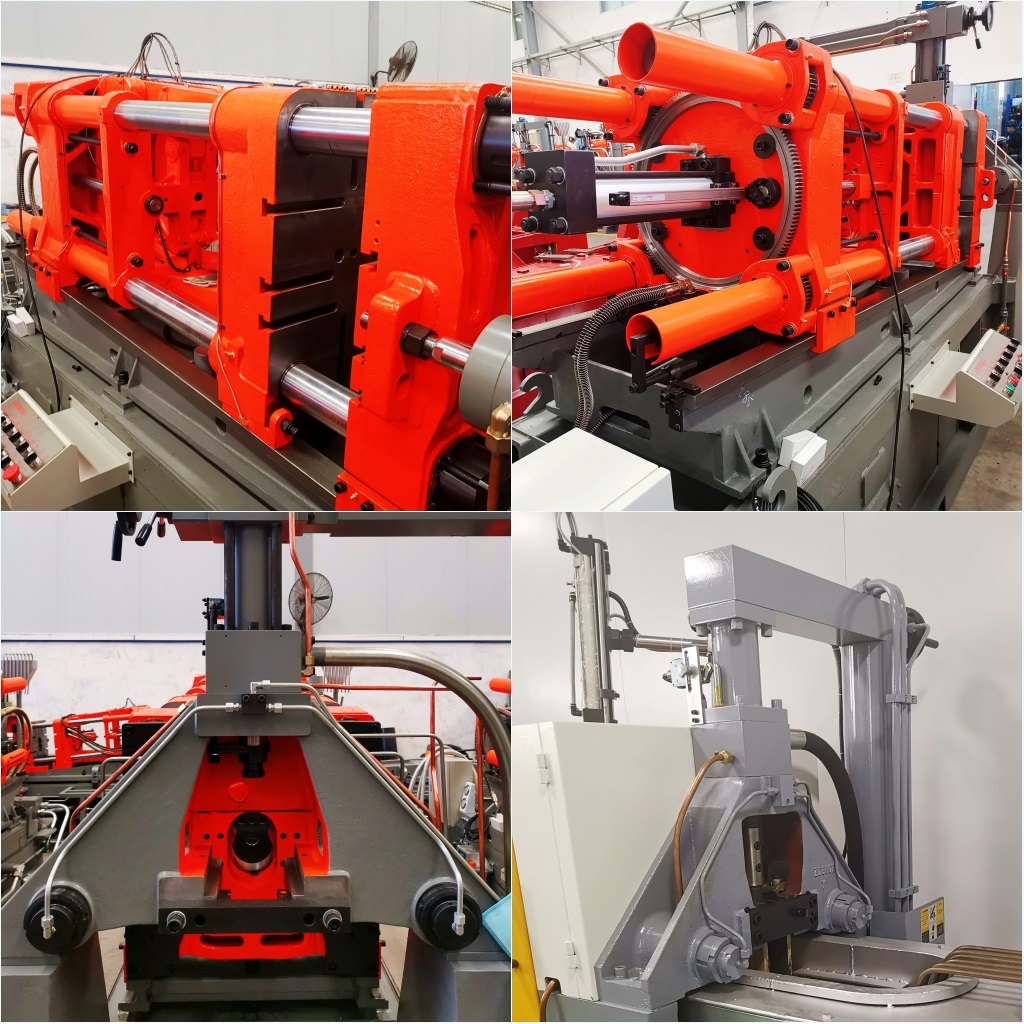

Toggle System of <a href=https://www.yomato-machinery.com/ target='_blank'>pressure die casting machine</a> 280Ton

Highly Stable Toggle System

High strength casting iron platen, high tension alloy steel tie bars, safety and durable.Faster mold open & close,Faster accumulating, effectively shorten the cycle time.

Melting Furnace System of Pressure Die Casting Machine 280Ton
Melting Furnace System

Yomato pressure die casting machine,standard with electrical melting furnace,aviaiable to suplly the fuel furnace,nature gas furnace as special requirement.

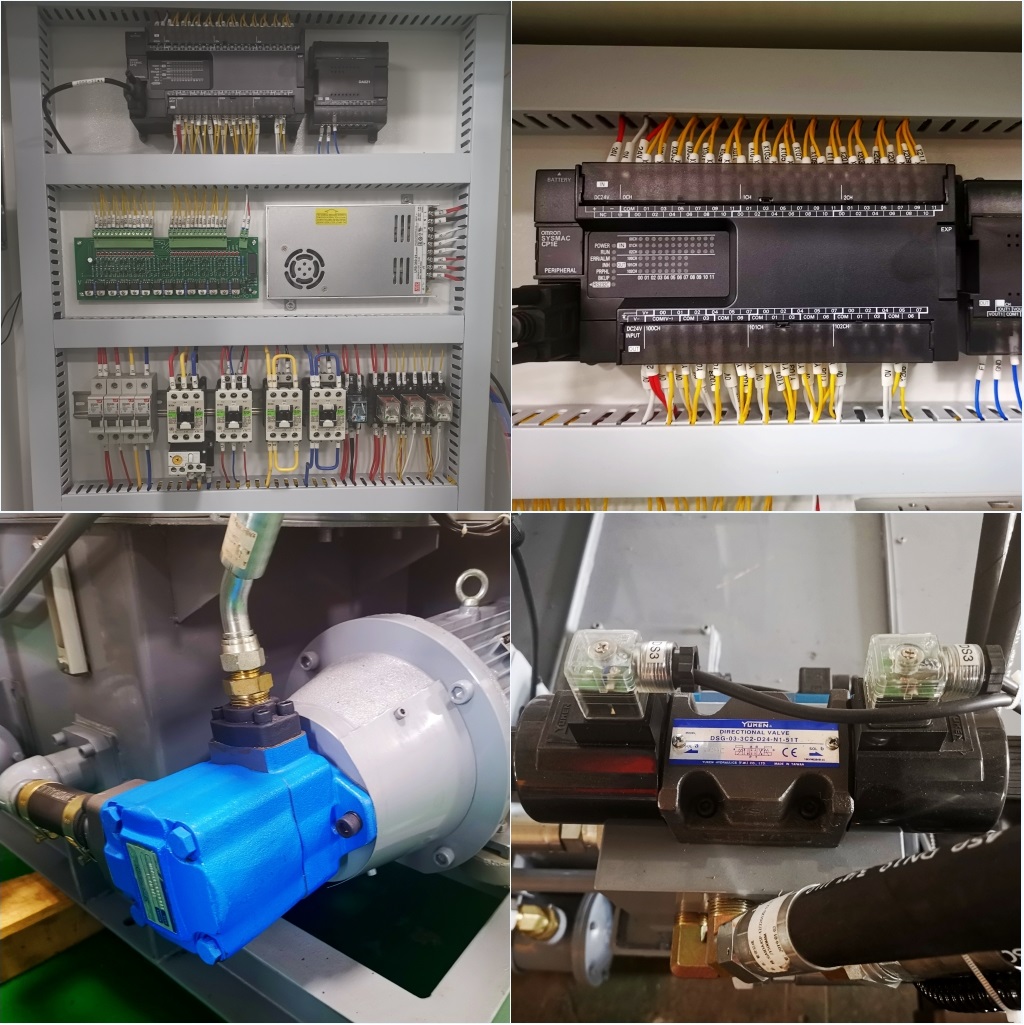

Electrical Control System of Pressure Die Casting Machine 280Ton

Stable Electrical Control System

The ORMON PLC control system (touch screen) is safe and reliable with high control accuracy. Separate integration of the electrical and electronic systems effectively enhances the stability of the electrical circuit.

Power System of Pressure Die Casting Machine 280Ton

Precision Power System

High preformance vane pump,low noize,optimized oil control,improve production efficiency.


Servo System of Pressure Die Casting Machine 280TonEnergy Saving Servo System

Yomato pressure die casting machine supply the  servo system for machine energy saving as optional.

Servo motor:Hilectro(China famous brand)+Servo Pump:Sumitomo brand+Servo Driver:MODROL

Or customized making under special requirements brands.

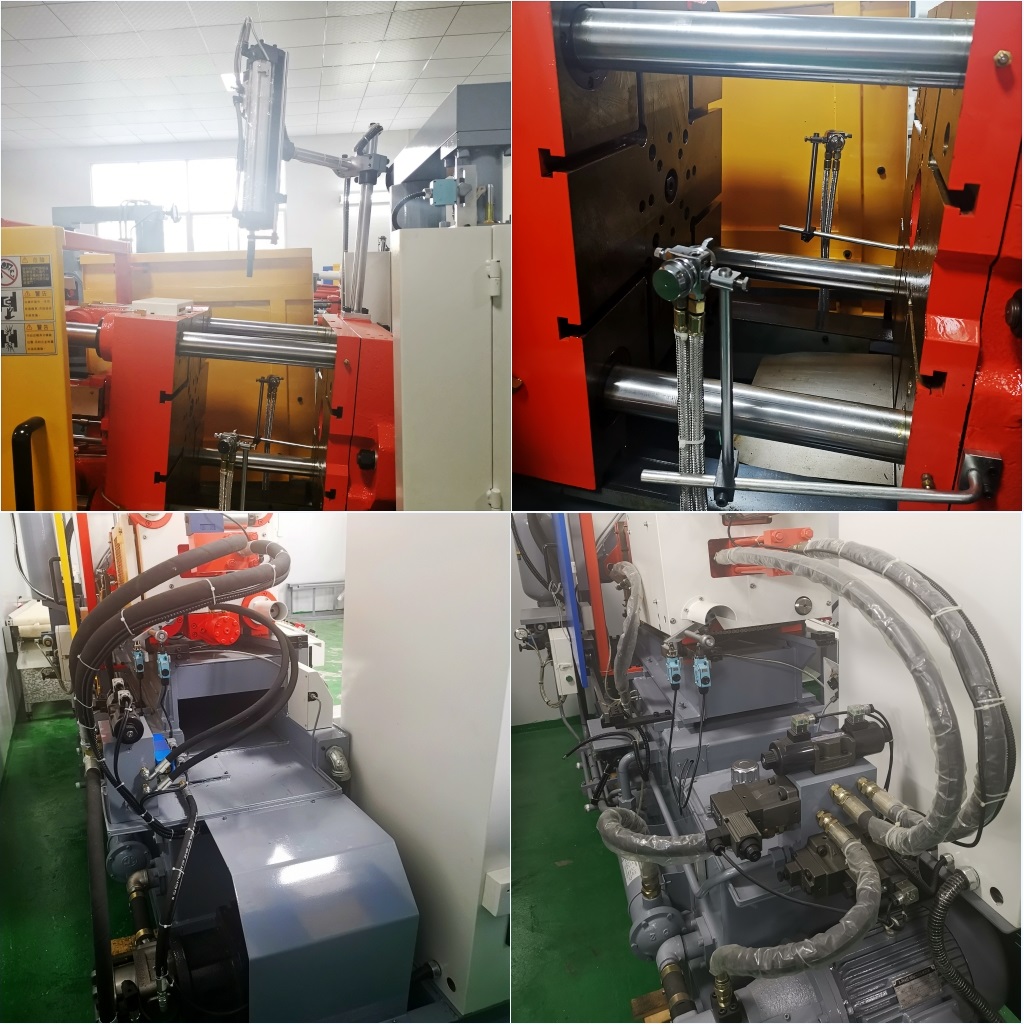

Air ejection and spraying system of Pressure Die Casting Machine 280Ton

Air ejection system and spraying system(optional device)

Yomato pressure die casting machine supply the  air ejection from top side,to eject the parts fastly,to shorten the cycle time and improve the production.

The spraying system also aviable to supply.

Conveying system of Pressure Die Casting Machine 280Ton

Conveying system(optional device)

Yomato pressure die casting machine supply the special converying system,to keep the automatic production with lower cost,applied with more production requirement.


Specification List

Item Unit HT130 HT160 HT200 HT280
Clamping Unit Clamping Force KN 1300 1600 2000 2800
Space Between Tie Bars mm 409X409 460x460 510x510 560x560
Clamping Stroke mm 330 340 410 460
Mold Thickness (min-max) mm 170-500 220-550 250-600 250-650
Platen Size (H x V) mm 615X685 680x725 755x755 860x875
Tie Bars Diameter mm 75 80 90 110
Ejection Force KN 110 110 110 158
Ejection Stroke mm 85 85 100 105
Injection Unit Injection Force KN 110 110 130 158
Injection Stroke mm 150 150 175 200
Nozzle Traverse Stroke mm 200 200 200 200
Shot Position mm 0-80 0-80 0-100 0-125
Plunger Diameter mm 60/65 60/65/70 65/70/75 70/80
Shot Weight(Zn) kg 2.10/2.46 2.10/2.46/2.86 2.87/3.33/3.83 3.80/5.00
Crucible Capacity(Zn) L/kg 55/360 55/360 110/720 110/720
Casting Pressure Mpa 38.9/33.1 38.9/33.1/28.6 40.1/34.8/30.1 42.2/33.6
Maximum Casting Area cm² 360 400 500 700
Others System Pressure Mpa 14 14 14 14
Motor Power KW 15 15 18.5 18.5
Oil Tank Capacity L 300 300 400 500
Machine Weight kg 5700 6500 8500 11000
Machine Dimensions(LxWxH) m 4.21x1.5x2.2 4.8x1.51x2.3 5.62x1.72x2.5 6.4x1.85x2.5
