Magnesium Dosing Furnace U Type 250kg/h

High Preformance
Energy Saving
High Safety
Higher Stability

Product Description

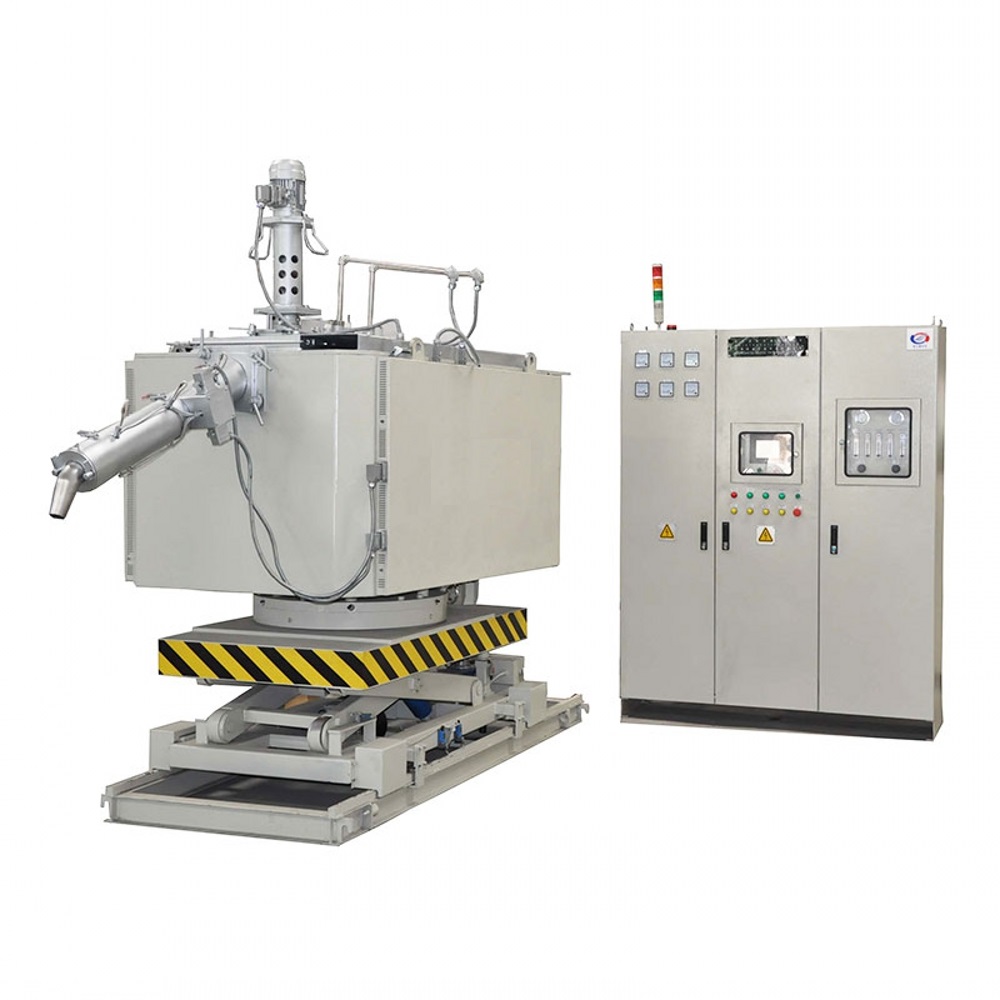

DMD-U Magnesium Dosing Furnace
Structural system:
1) Quickly replace the heater with a radiant tube or other heating method
2) Imported thermocouple, accurate temperature control and high service life

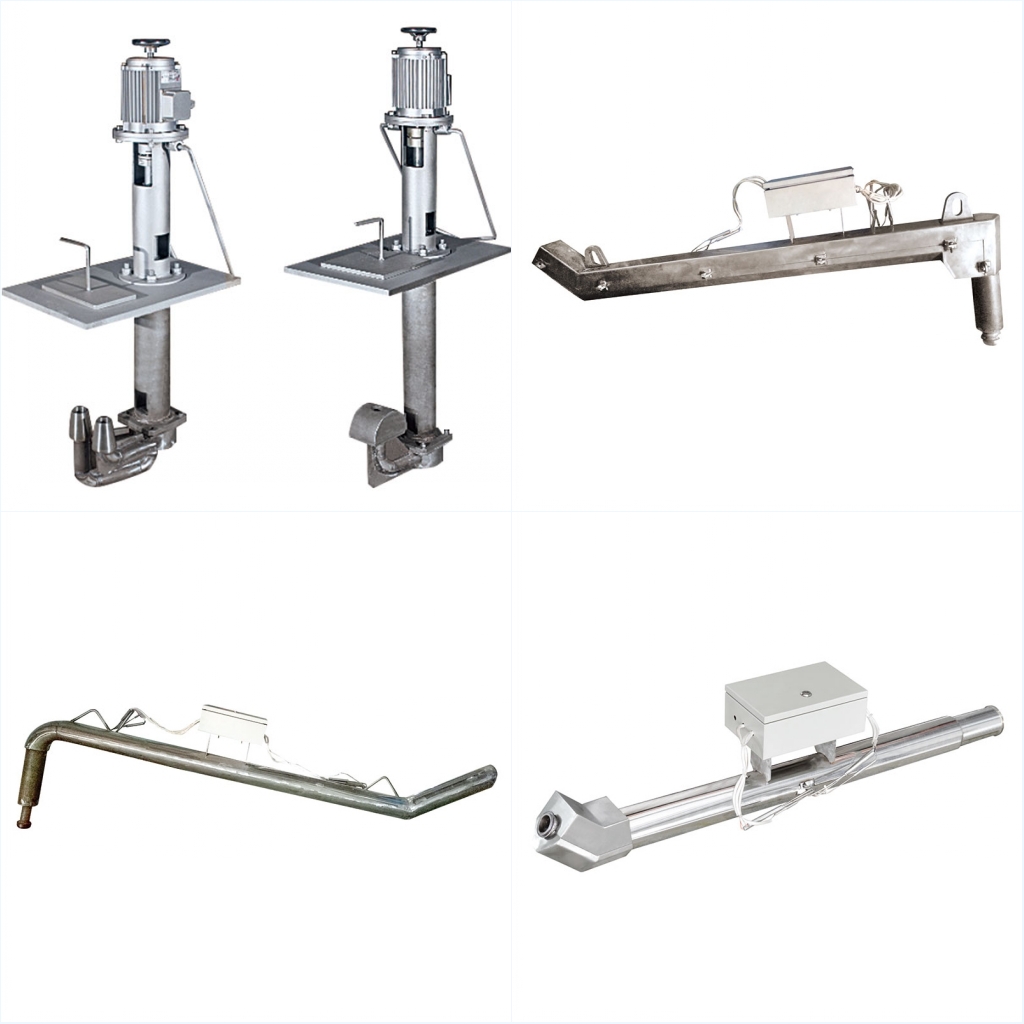

3) Quantitative pump lift impeller design, maintenance time every day

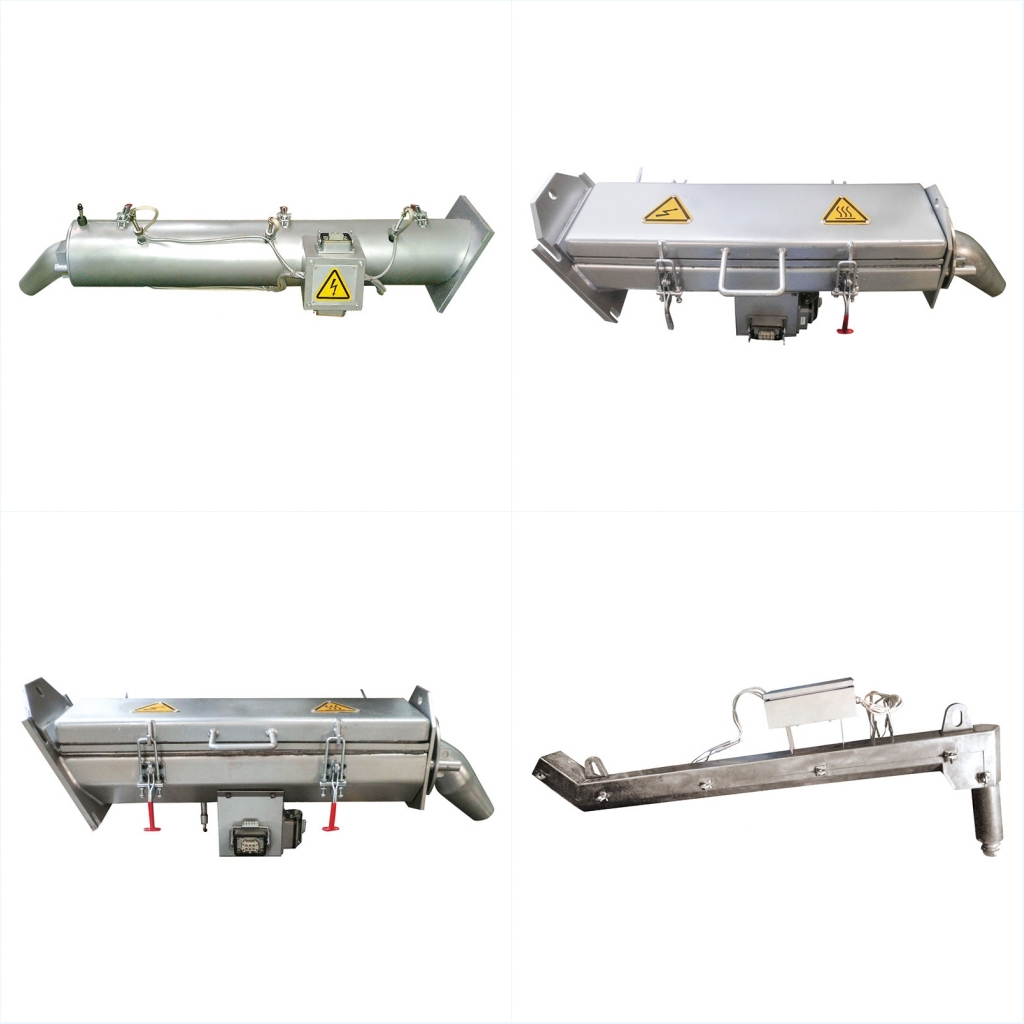

4) The transmission tube is made of special corrosion-resistant material, which is clamshell design and easy to clean.
5) Anti-blocking elbow design (patent: ZL201120322157.8)
6) Quick release heater design (patent: ZL201120322188.3)
7) Preheater adopts clamping mechanism to make liquid level control stable and accurate feeding (patent: ZL201420137471.2)

Specification List

Parameter Unit DMD250U DMD300U DMD500U DMD800U DMD1000U DMD1000U DMD1000U
Furnace size(L*W*H)
Mm 2000*800* 1000 2750*950* 1300 3060*950* 1300 3400*1000* 1900 3650*1450* 2350 3850*1450* 2450 3900*1550* 2550
Rated Volume Kg 250 350 550 850 1000 1200 1500
Melting rate Kg/h 80 100 200 250 300 400 450
Crucible structure
Double room
Power V/Hz/Phase 380-420V/50-60Hz/Three-phase Five-wire
Rated power KW 60 75 120 180 220 260 300
Rated current A 90 120 180 270 330 390 450
Highest Furnace working temperature ºC 850
Highest work  temperature of magnesium liquid ºC 710
provide gas temperature ºC 350
Transportation temperature ºC 500-600
quantitative way
Centrifugal
Quantitative range Kg 0.2~5 0.2~5 0.2~5 0.5~10 0.5~10 0.5~20 0.5~20
Protection gas flow L/min 25 25 25 25 50 50 50
Lifting height of lifting frame mm 400 400 400 400 500 500 500
Lift moving distance mm 500 500 500 600 600 600 600
Angle of rotation of lifting frame ° ±60
DIN45635-01-K1.2   noise dB(A) <85
Furnace weight Kg 1300 1800 2500 3200 4200 4800 5700
Suitable for die casting machine model T ≤300 ≤400 ≤650 ≤900 ≤1250 ≤1250 ≤1650
Special note: The company reserves the right of final interpretation of the above product pictures and parameters!
