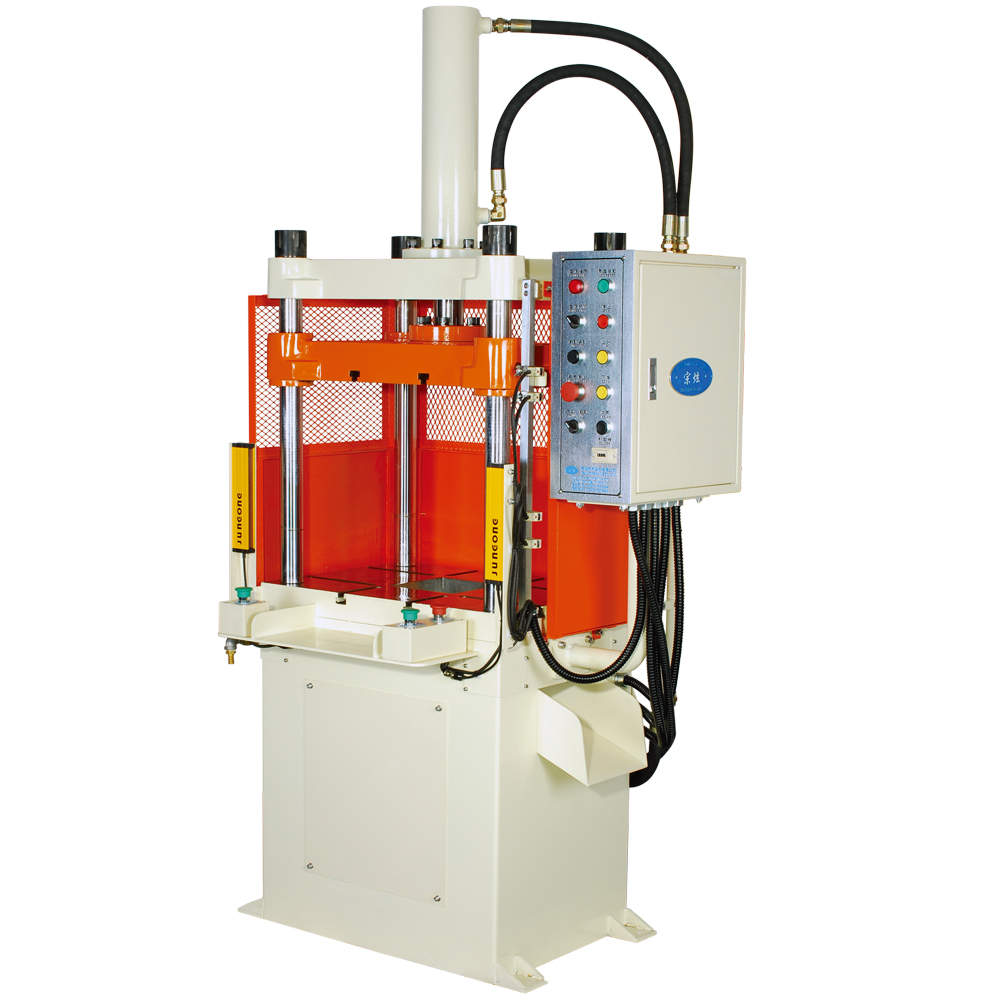

Hydraulic Trimming Press 30Ton

Powerful Press
High Efficiency
High Precision Control System
Higher Stability

Product Description

1.Adopt steel construction of 4-poles and 3-boards,with high precision,good rigidity,and high intension of anti-pressure.
2.With simple designed hydraulic loop, controlled by PLC, it makes the maintenance very easy.
3.The pressure, moving distance and pressure-keeping are adjustable according to press requests easily.
4.Adopt imported hydraulic and electrical components, has a long working life.
5.Adopt two-arm operation style, with function of urgent stop andjiggle movement ifs safe and efficient. With the raster protection, the operation is more safe.
6.Especially suitable for pressing the aluminum castings, plastic and rubber products, flatting silicon work-pieces.

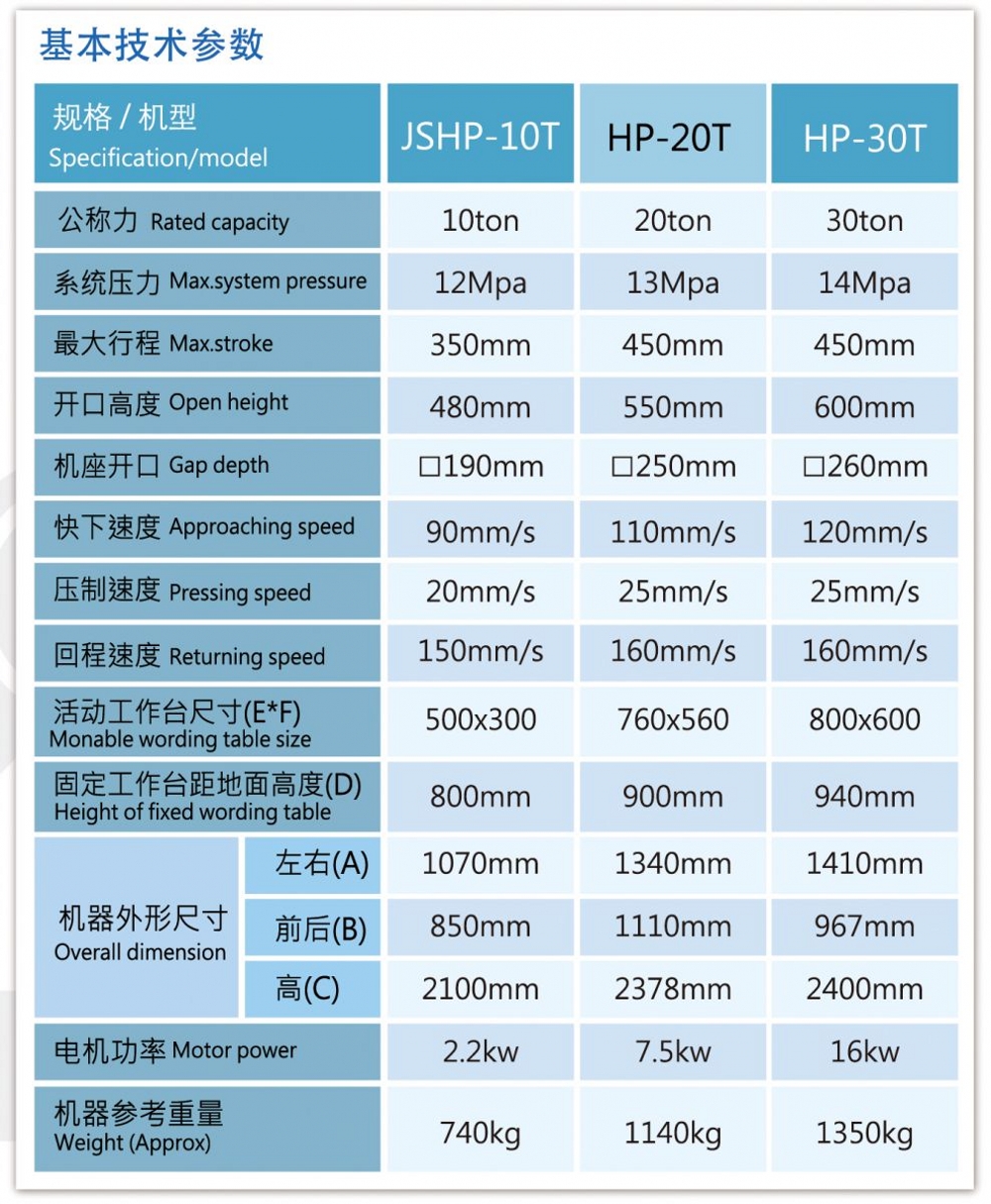

Specification List
