Gas Rotary Crucible Furnace 2X200kg

High Preformance
Energy Saving
High Efficiency
Higher Stability

Product Description

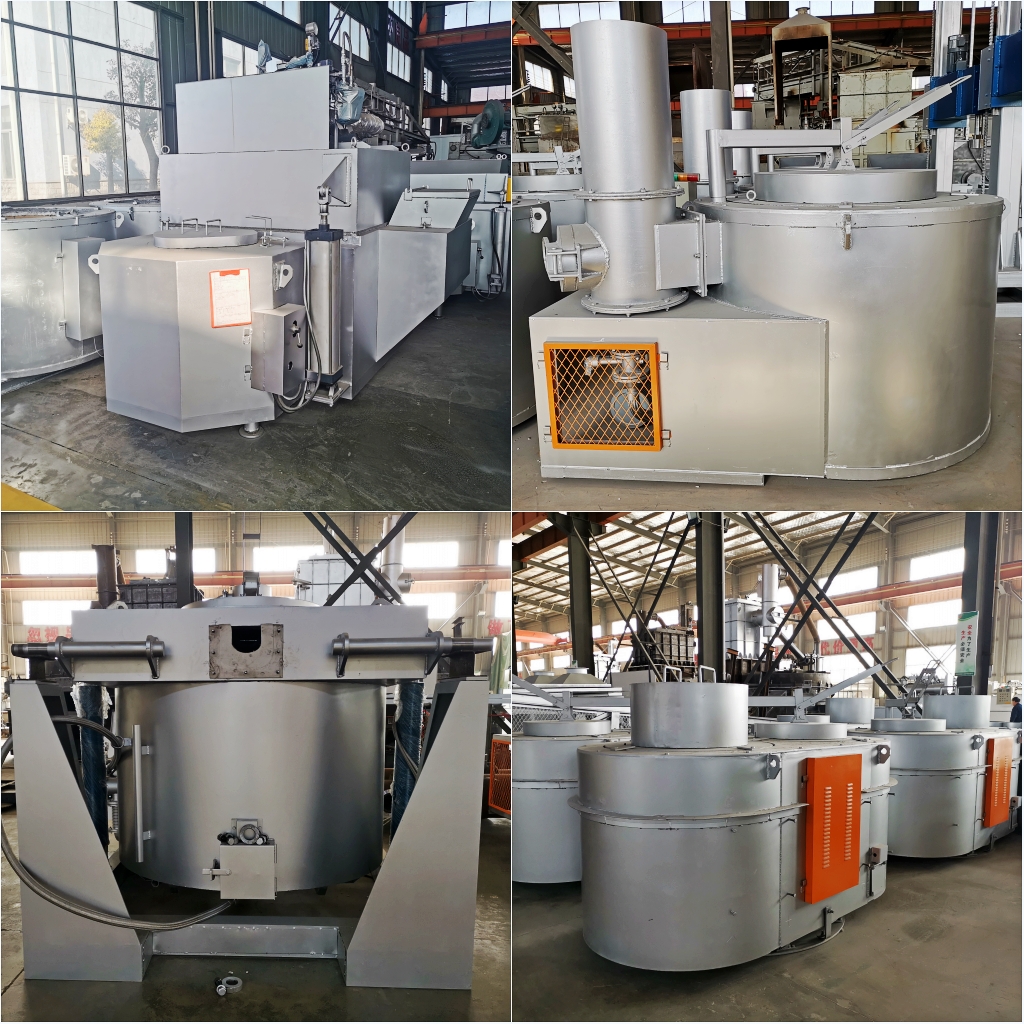

XGQR Gas Rotary Crucible Furnace

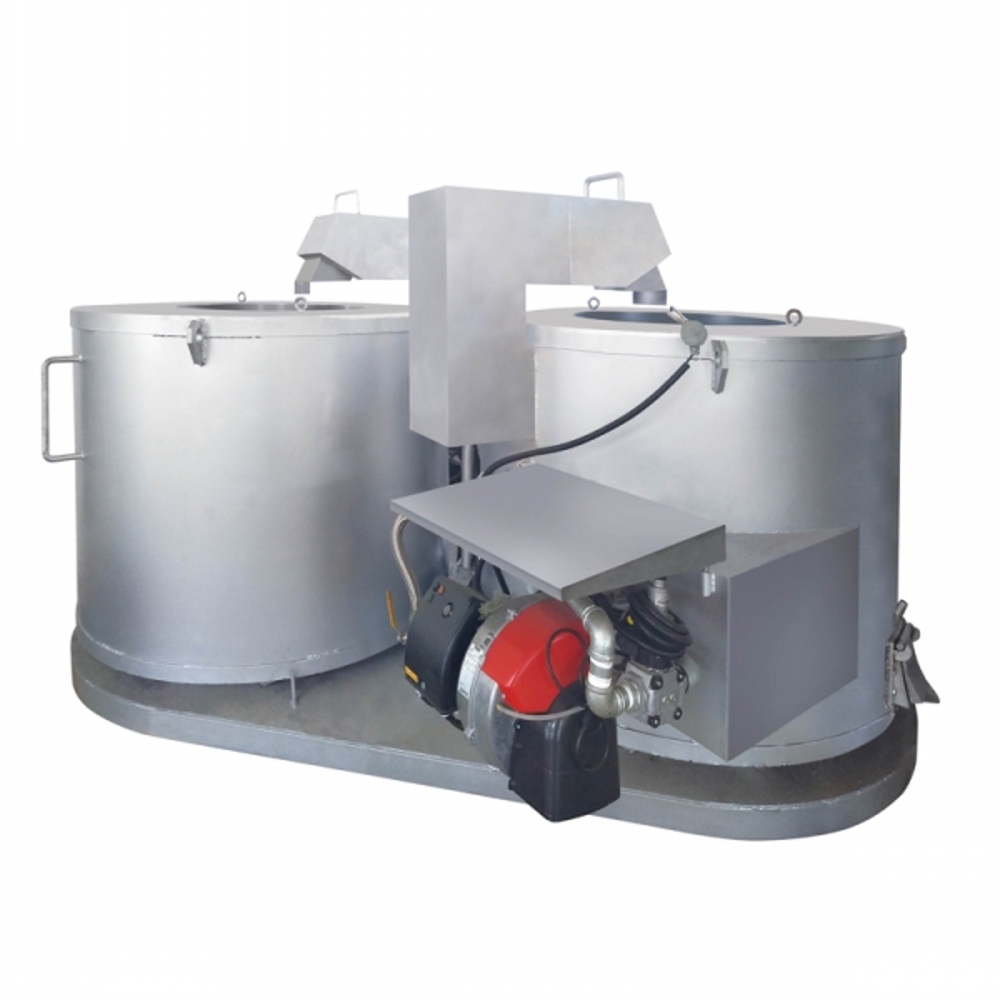

1.Double crucible design, furnace can be manual or electric rotation, alternate use.;
2.Furnace lining is composed of high aluminum lightweight brick and refractory fiber, which has the characteristics of good heat preservation, small heat storage and fast heating speed, and the temperature rise of furnace wall is less than 35°C;
3.Adopts inlet temperature control instrument, PID control, furnace temperature stability control at ≤±5°C;

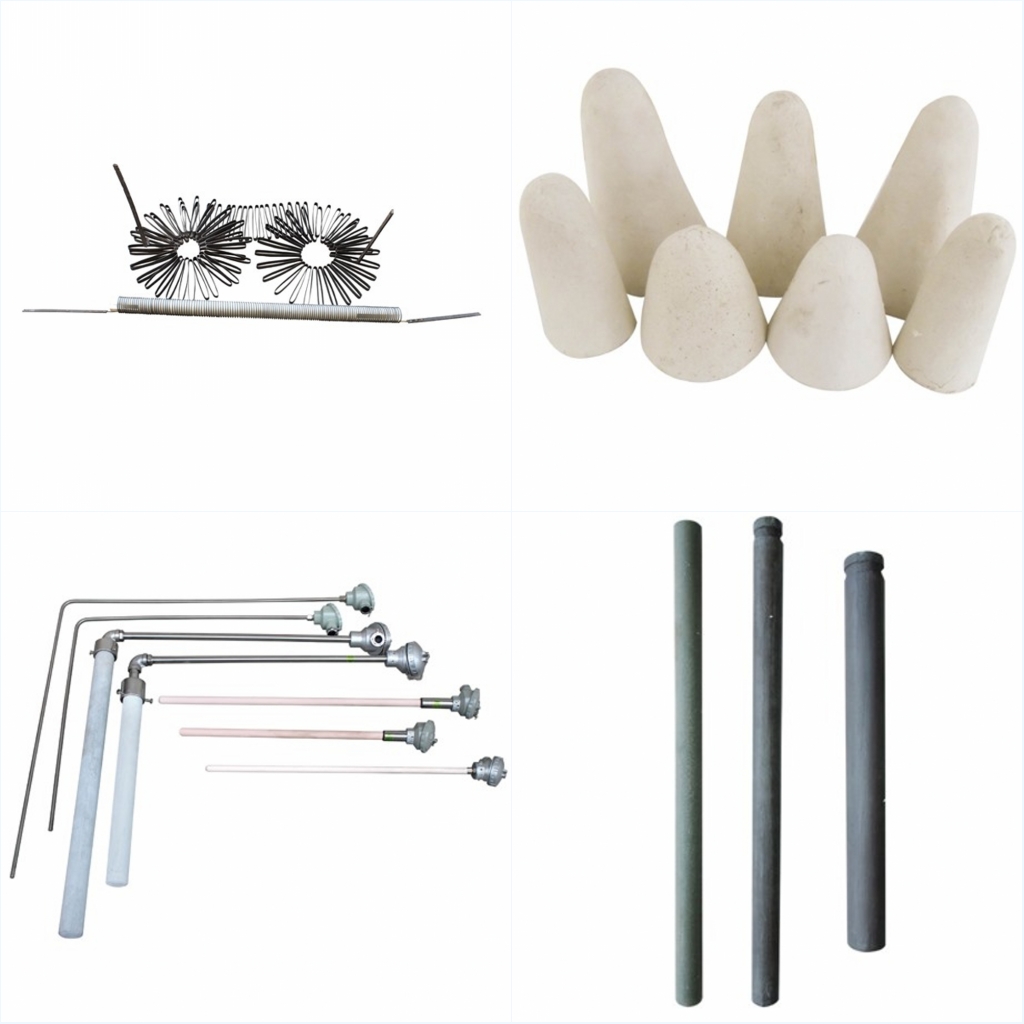

4.Equipped with a non-metallic thermocouple protection tube, direct measurement of aluminum temperature, double temperature control, conducive to the correct implementation of the process;
5.Selected imported graphite crucible, good thermal conductivity, long service life, no iron proliferation;
6.Adopts international famous brand burner with stable performance and long service life;

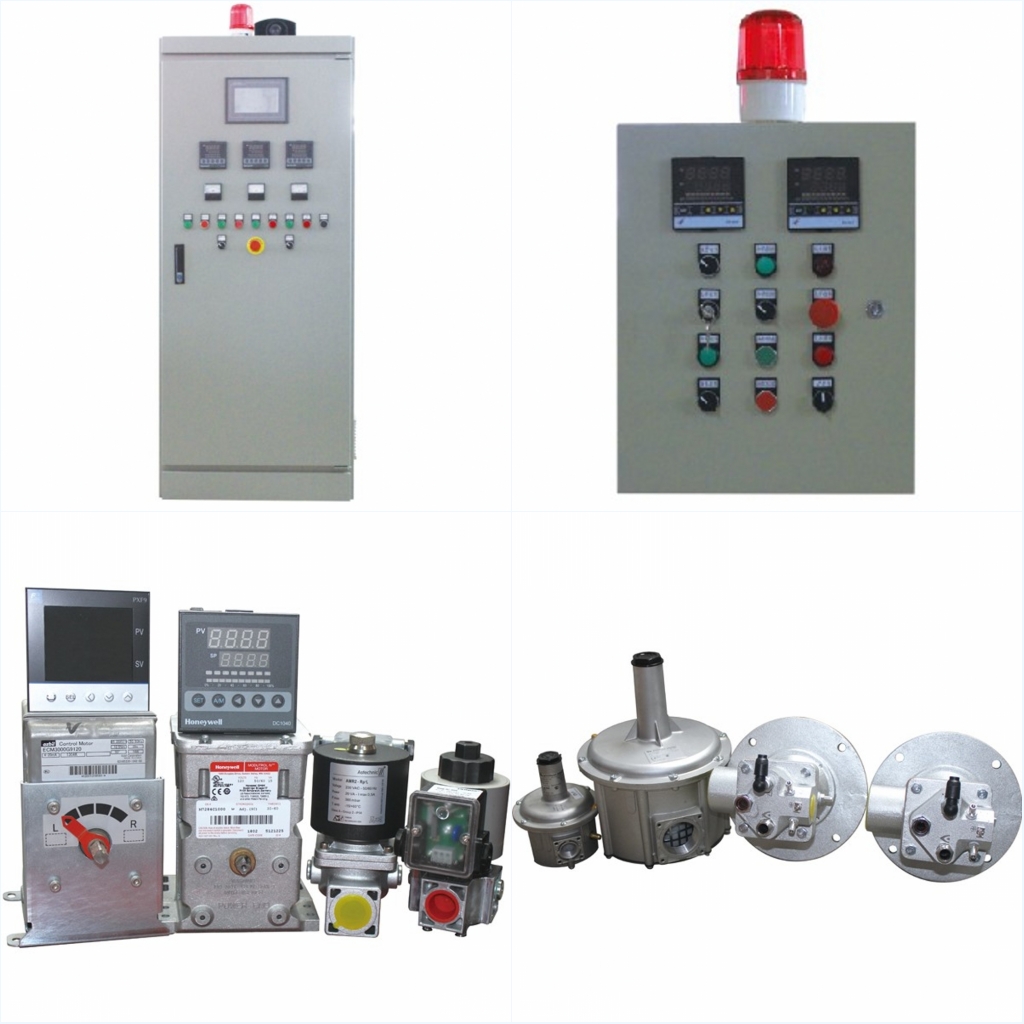

7.Control system is also equipped with leakage alarm, over temperature alarm and other functions to ensure the safety of equipment and operation.
Specification List

Model Holding capacity
kg
Melting capacity
kg/h
Power
104 kcal
Length
mm
Width
mm
Height
mm
XGQR-150 x 2 150×2 60×2 15×2 2690 1350 1200
XGQR-200 x 2 200×2 80×2 15×2 2690 1350 1200
XGQR -250 x 2 250×2 100×2 15×2 2750 1380 1250
XGQR-300 x 2 300×2 120×2 15×2 3000 1550 1300
XGQR-400 x 2 400×2 150×2 15×2 3000 1550 1300
XGDR -500 x 2 500×2 200×2 20×2 3200 1600 1350
XGDR -600 x 2 600×2 250×2 20×2 3200 1600 1500
XGQR -800 x 2 800×2 300×2 30×2 3400 1750 1600
