Gas Magnesium Dosing Furnace 500kg/h

High Preformance
Energy Saving
High Safety
Higher Stability

Product Description

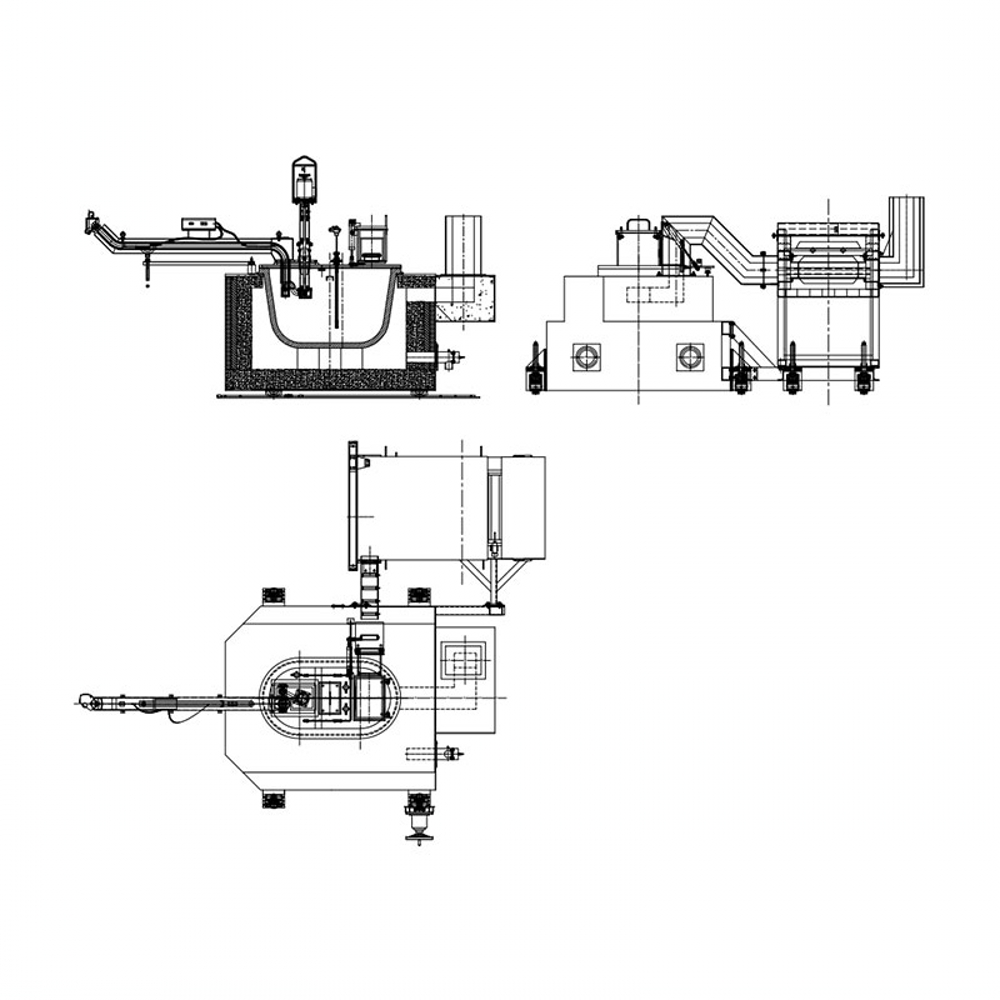

DMQ-M Gas Magnesium Dosing Furnace
Magnesium alloy gas furnace structural system:

  1. The concrete made of special composite steel plate does not pollute the magnesium liquid, has anti-corrosion structure inside, and has long service life.
  2. Using natural gas and other heating methods, automatic flame detection, automatic power adjustment, gas automatic gas shutoff protection.
  3. The automatic thermal cycle control of the burner improves the gas utilization rate, and the natural gas usage is controlled within 80M3/T.
  4. Stainless steel casing and panel, corrosion resistant, high temperature resistant
  5. Imported thermocouple, accurate temperature control and high service life

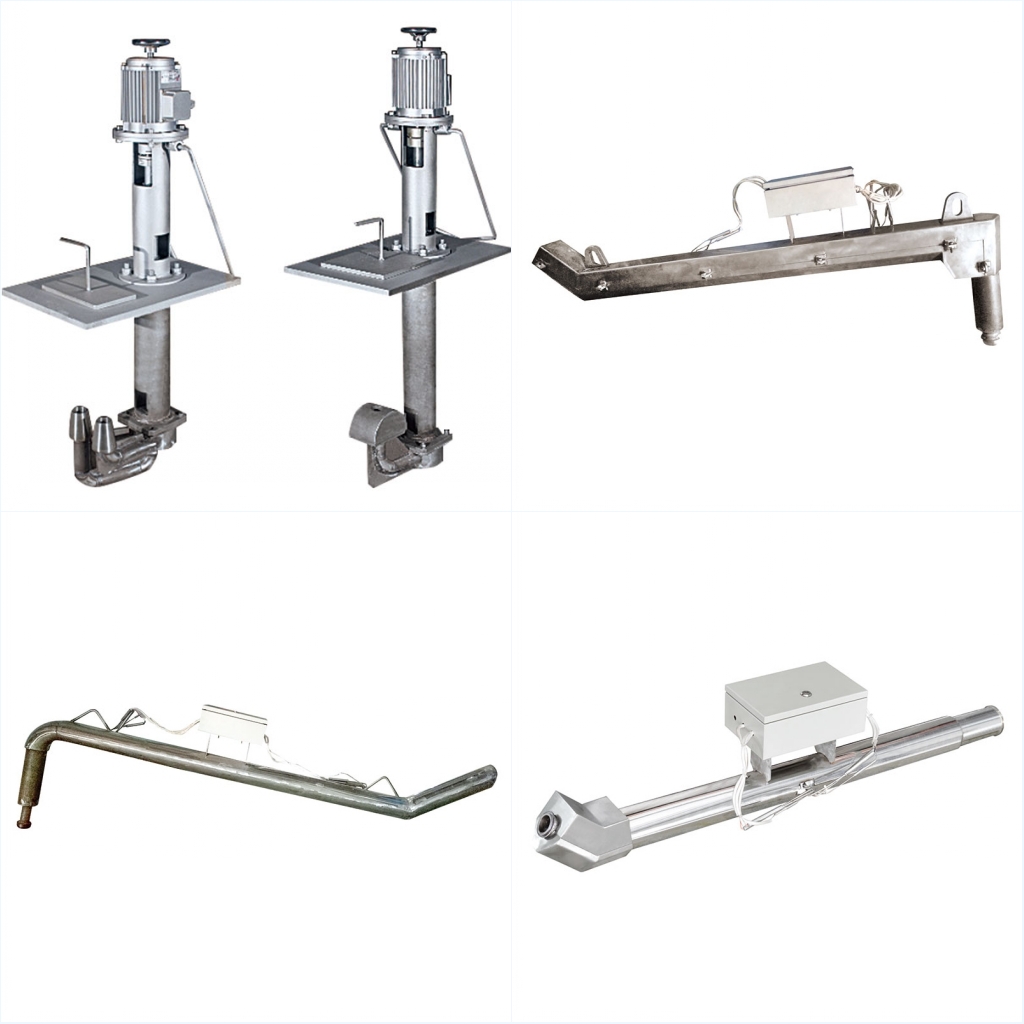

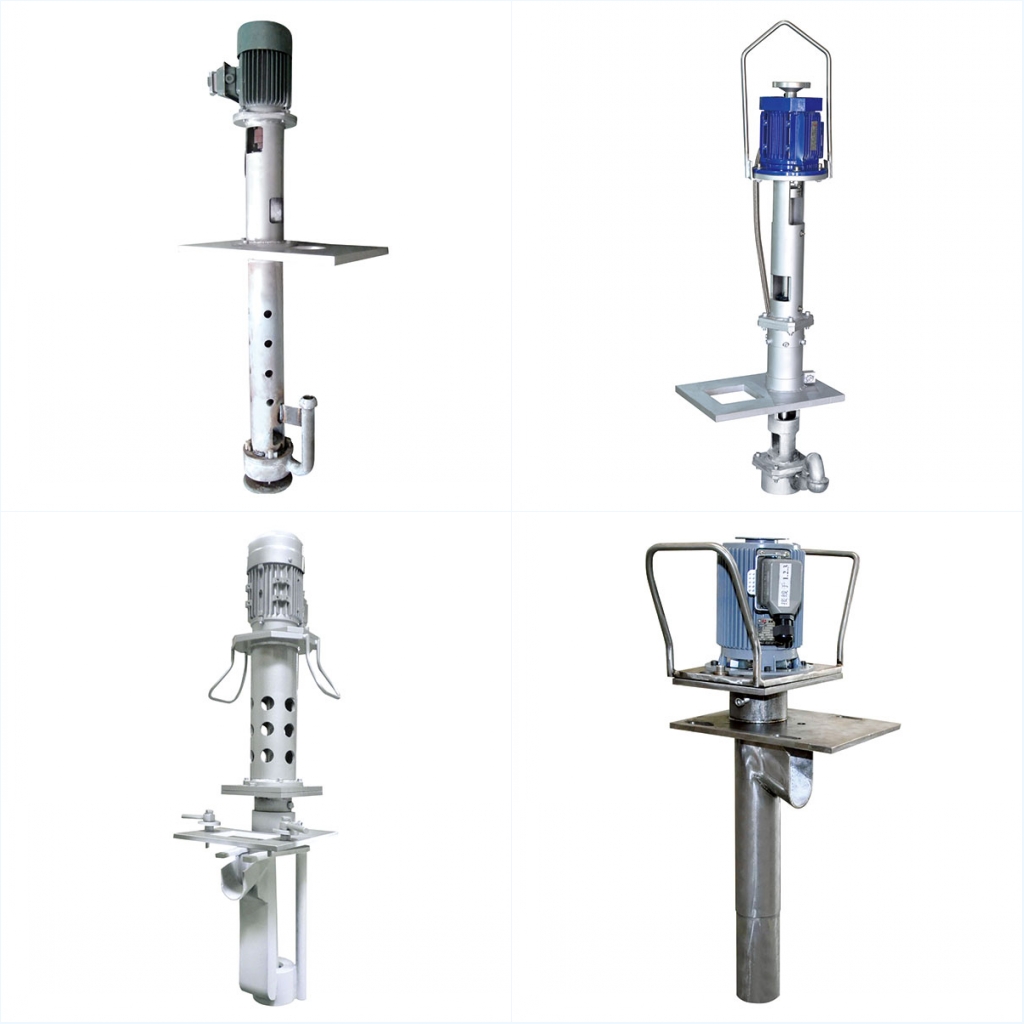

  6. Quantitative pump instantaneous flow design, maintenance time of more than 30 days
  7. The transmission tube is made of special corrosion-resistant materials, which can be quickly changed, and the maintenance time is more than 30 days.

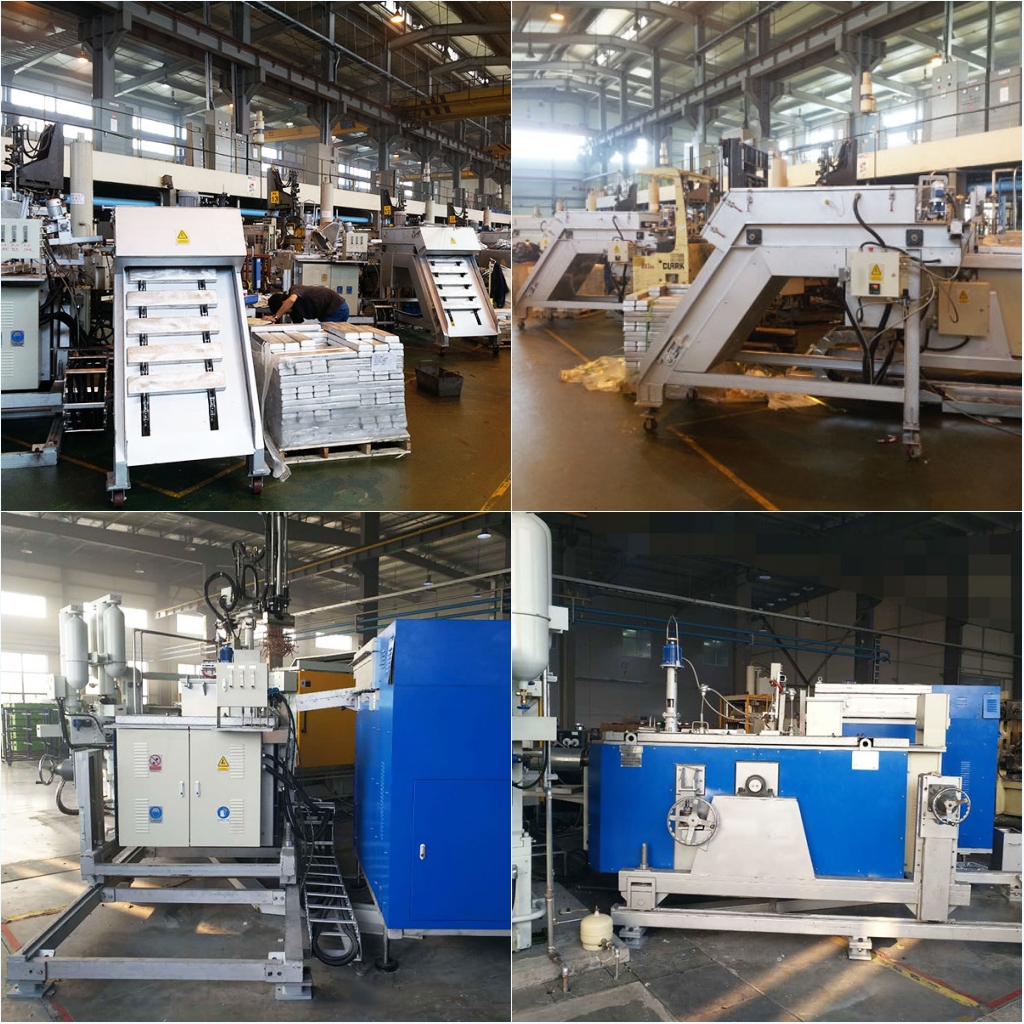

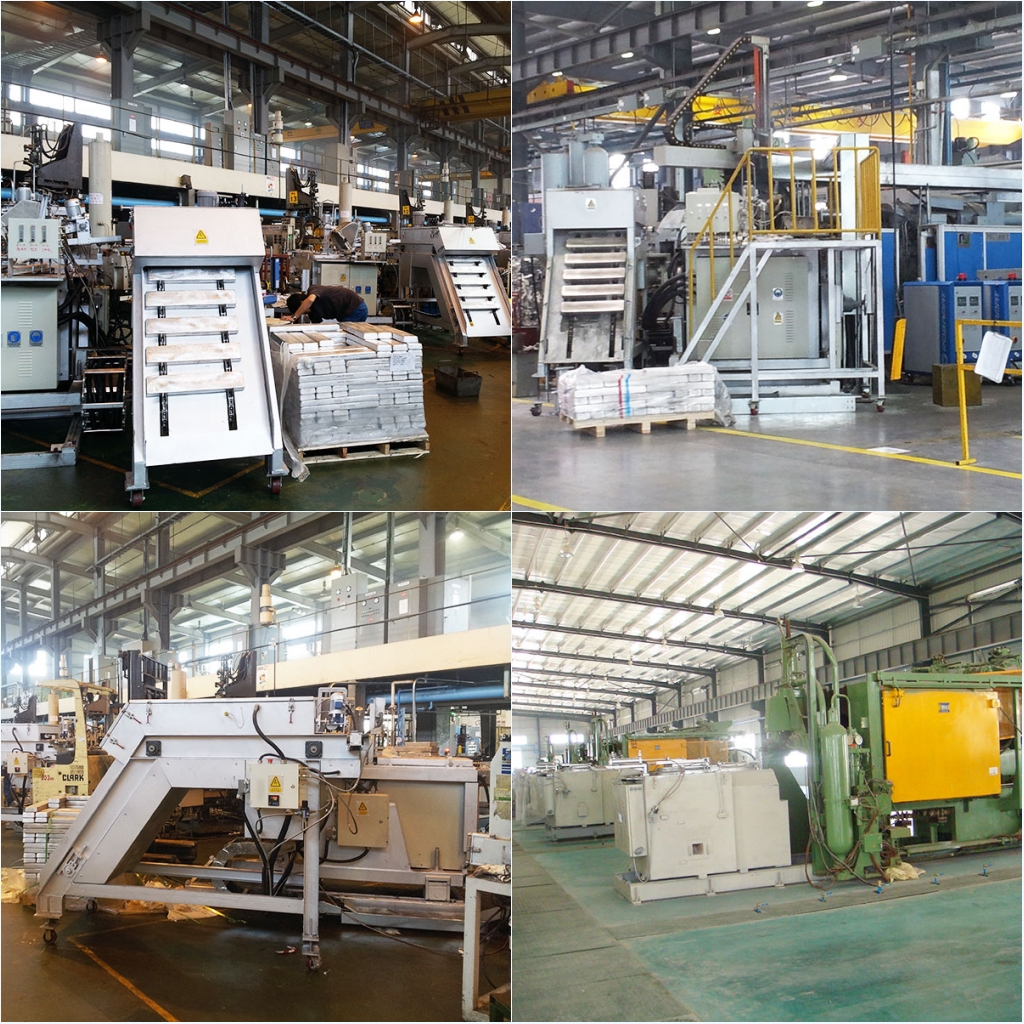

  8. Preheater adopts clamping mechanism to make liquid level control stable and accurate feeding
  9. Preheating machine uses residual heat for reuse, and the preheating effect is good.
Characteristic:
  1. Insulation furnace over-temperature, leaking furnace automatic alarm.
  2. Protection alarm is low, and the protection air flow is low.
  3. Automatic flame detection, automatic power regulation, gas automatic shut-off protection.
  4. Automatic heat cycle control of the burner, improve gas utilization and save energy.
  5. The preheater uses the furnace flue gas to preheat the magnesium ingot without heating the heating element.
  6. Alarm and fault information can be traced back.
  7. Power supply voltage, operating current LED display.
  8. Working status I/O output signal is automatically displayed.
  9. Furnace parameter input authorization password control.
  10. The backup protection gas is automatically switched.
  11. Peripheral device PLC output can be expanded.
  12. The status indicator on the control panel of the key work status.
  13. Real-time temperature curve visually tracks temperature changes.
  14. Temperature data can be exported and process data can be analyzed and saved.
  15. The inductive detection function of the bismuth magnesium liquid outlet prevents the empty hammer from being discharged when the pouring pipe is blocked.
  16. The quantity and quantity of strontium magnesium ingots are automatically recorded and inquired.

Specification List

NO Item Unit

DMQ-

300M

DMQ-

600M

DMQ-1000M DMQ-1500M DMQ-2000M

DMQ

-2500 M

DMQ-

3000 M

DMQ-

3500 M

01 Furnace external dimensions mm 2000*1550* 1800 2500*2050* 2250 3430*2260* 2360 3900*2300* 2800 4500*2300* 3000 4600*2800* 3200 4800*3200* 3500 4950*3400* 3800
02 Rated Volume Kg 350 600 1100 1500 2000 2500 3000 3500
03 Melting rate Kg/h 150 250 350 500 600 800 1000 1200
04 Crucible structure
Double room Double room Double room Double room three room three room three room three room
05 Power V/Hz/Phase 380-420V/50-60Hz/Three-phase Five-wire
06 Number of burning machines PCS 2 2 2 2 4 4 4 4
07 Power Kw 230 230 260 260 300 360 420 420
08 Crucible thickness mm 24 24 30 30 30 30 36 36
09 (max.)Furnace working temperature(max.) ºC 900
10 (max.)Magnesium liquid temperature(max.) ºC 710
11 provide gas temperature ºC 350
12 Transportation temperature ºC 680-720
13 quantitative way
Centrifugal
14 Main gas type
SF6/R134a+ N2/Ar
15 (max.)Mix gas flow(max.) L/min 10 25 50 50 50 50 50 50
16 Quantitative range Kg/s 0.2~5 0.2~5 0.5~10 0.5~10 0.5~50 1~50 1~50 1~50
17 Pouring precision % ±3 ±3 ±3 ±3 ±3 ±3 ±3 ±3
18 Lifting height of lifting frame mm 150 150 150 150 250 250 250 250
19 Lift moving distance mm 700 700 700 800 800 800 800 800
20 DIN45635-01-K1.2   noise dB(A) <85
21 (max.)Preheating machine power KW 20 30 30 30 60 60 90 90
22 Preheating temperature ºC 150-250
23 Furnace weight Kg 1800 2500 3600 5000 6000 7500 8800 9800
24 Suitable for die casting machine model T ≤500 ≤800 ≤1650 ≤2000 ≤2000 ≤3500 ≤4000 ≤4500

Special note: The company reserves the right of final interpretation of the above product pictures and parameters!
