Gas Holding Furnace 1000kg

High Preformance
Energy Saving
High Efficiency
Higher Stability

Product Description

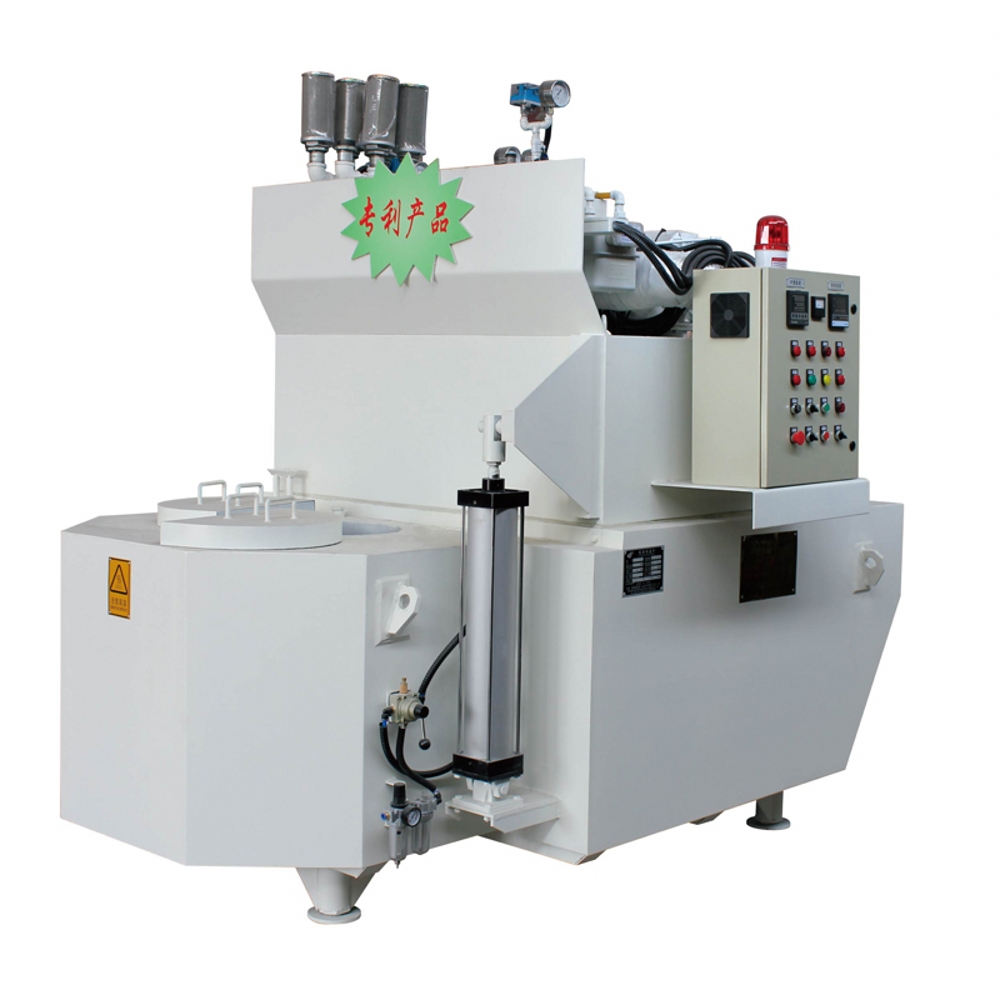

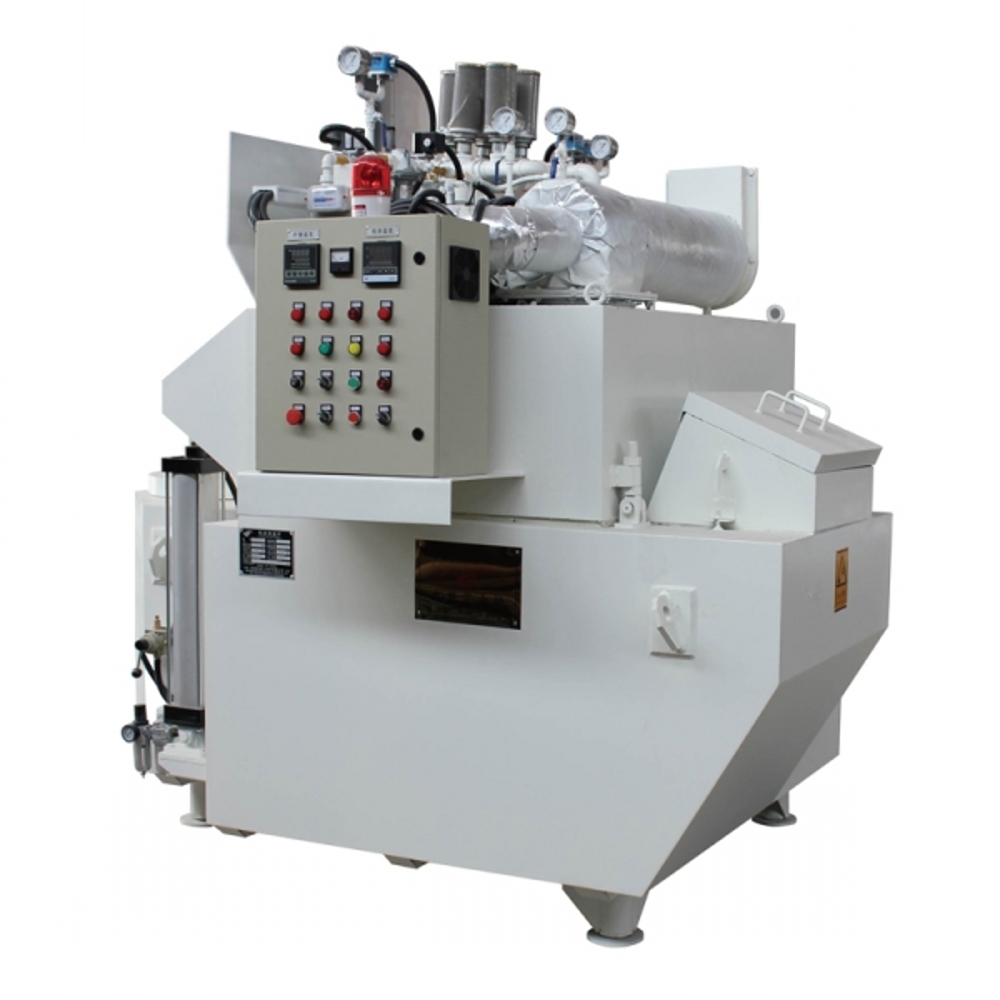

LQB Gas Holding Furnace
1.International famous brand flat flame burner, frequency conversion combustion technology, maximum range of flame radiation, to ensure full combustion, improve thermal efficiency, through combustion to remove oxygen in the furnace, to reduce the burning rate;
2.Powerful heat exchange equipment (patent technology), flue gas waste heat reuse, energy conservation and environmental protection;
3.Directly measure the temperature of aluminum liquid, double temperature control, accurate temperature control of aluminum liquid, temperature difference of aluminum liquid ≤±2°C;
4.Furnace lining selected imported high-quality materials, integral pouring, service life of more than five years, no aluminum, no crucible loss, no iron proliferation;
5.With high temperature aluminum water, low temperature alarm, high aluminum water alarm and other functions, is conducive to the correct implementation of the process;
6.Adopts nano-adiabatic material, the heat preservation effect is excellent, the temperature rise of furnace wall is less than 30°C;
7.Furnace cover pneumatic lift, convenient slag cleaning and maintenance, high degree of automation.
Specification List

Model Holding Capacity
kg
Average gas
Consumption
Nm3/h
Length
mm
Width
mm
Height of the soup outlet
mm
LQB-300 300 1.4 2370 1540 1000
LQB-400 400 1.6 2420 1590 1000
LQB-600 600 1.8 2570 1700 1150
LQB-800 800 2 2800 1800 1300
LQB-1000 1000 2.2 2990 1900 1500
LQB-1200 1200 2.4 3090 2000 1500
LQB-1500 1500 2.8 3190 2100 1600
LQB-2000 2000 3.5 3390 2200 1800
LQB-2500 2500 4.2 3490 2400 1800
LQB-3000 3000 5 3590 2500 1850
