Gas Crucible Tilting Furnace 600kg

High Preformance
Energy Saving
High Efficiency
Higher Stability

Product Description

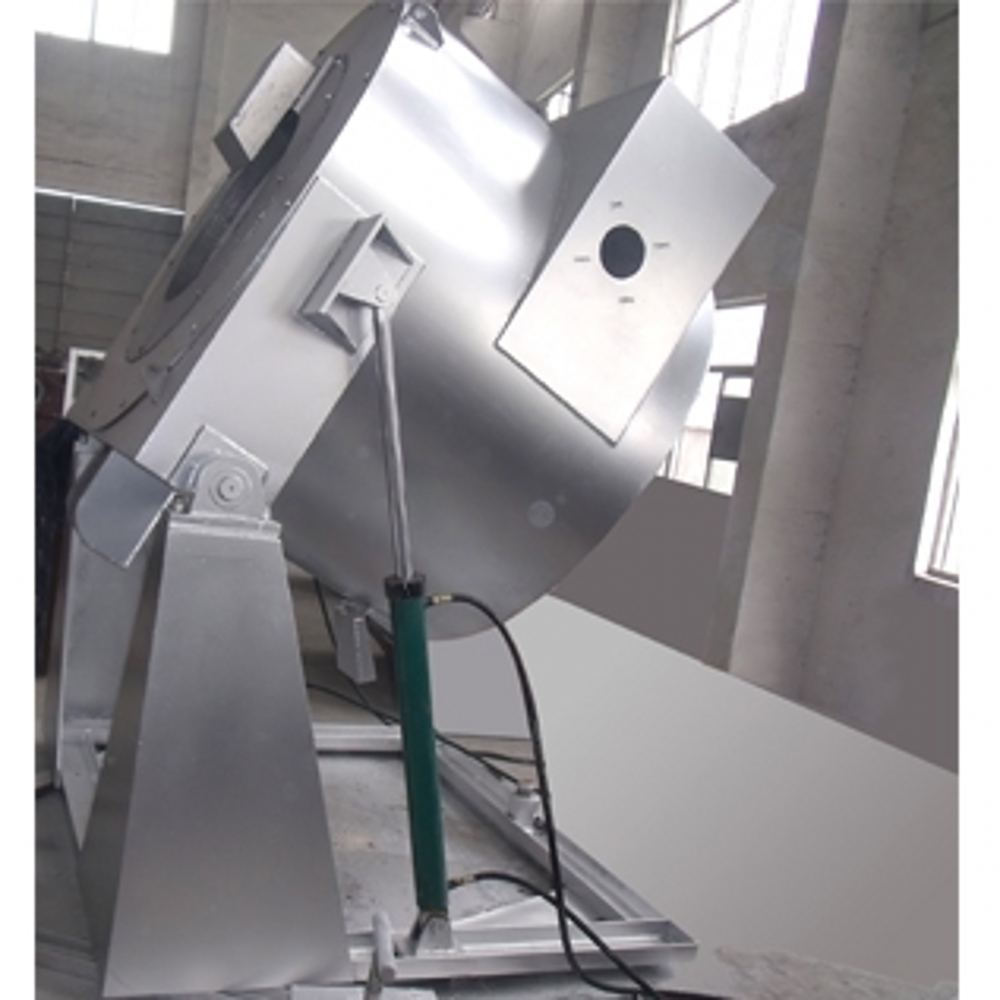

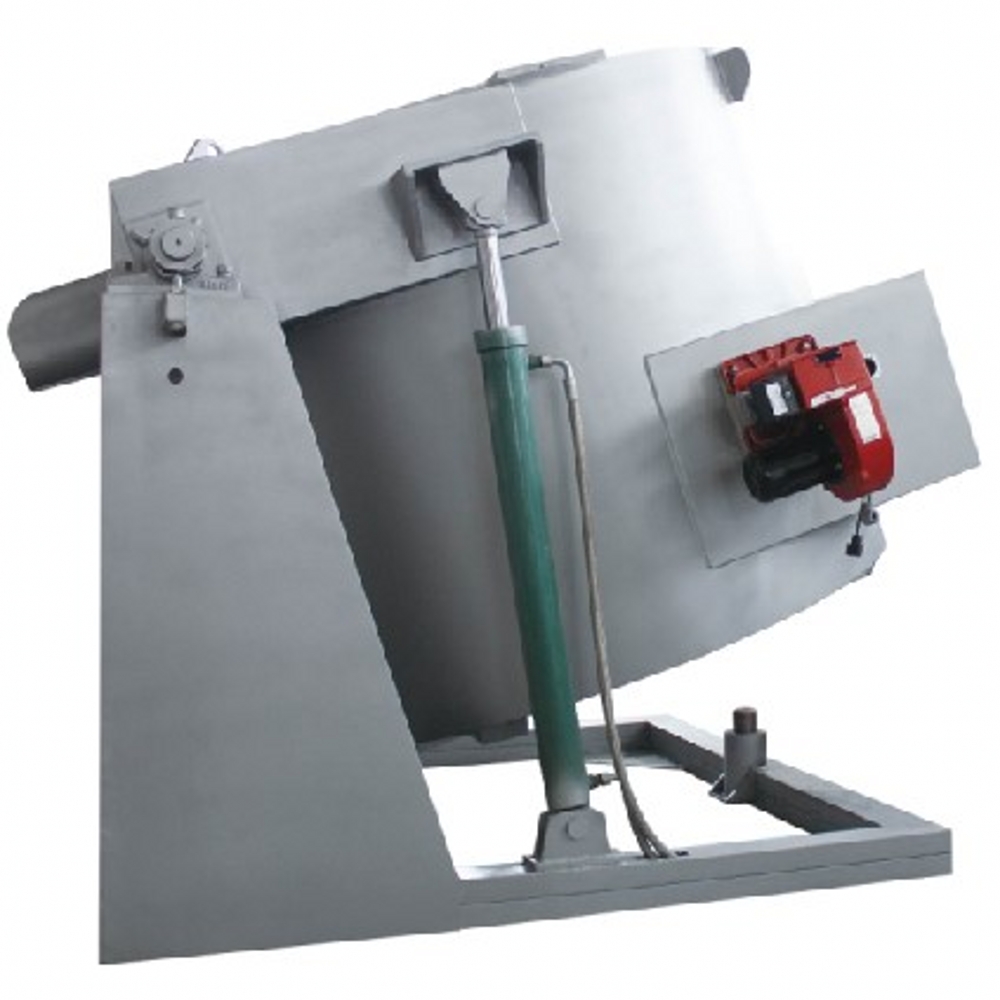

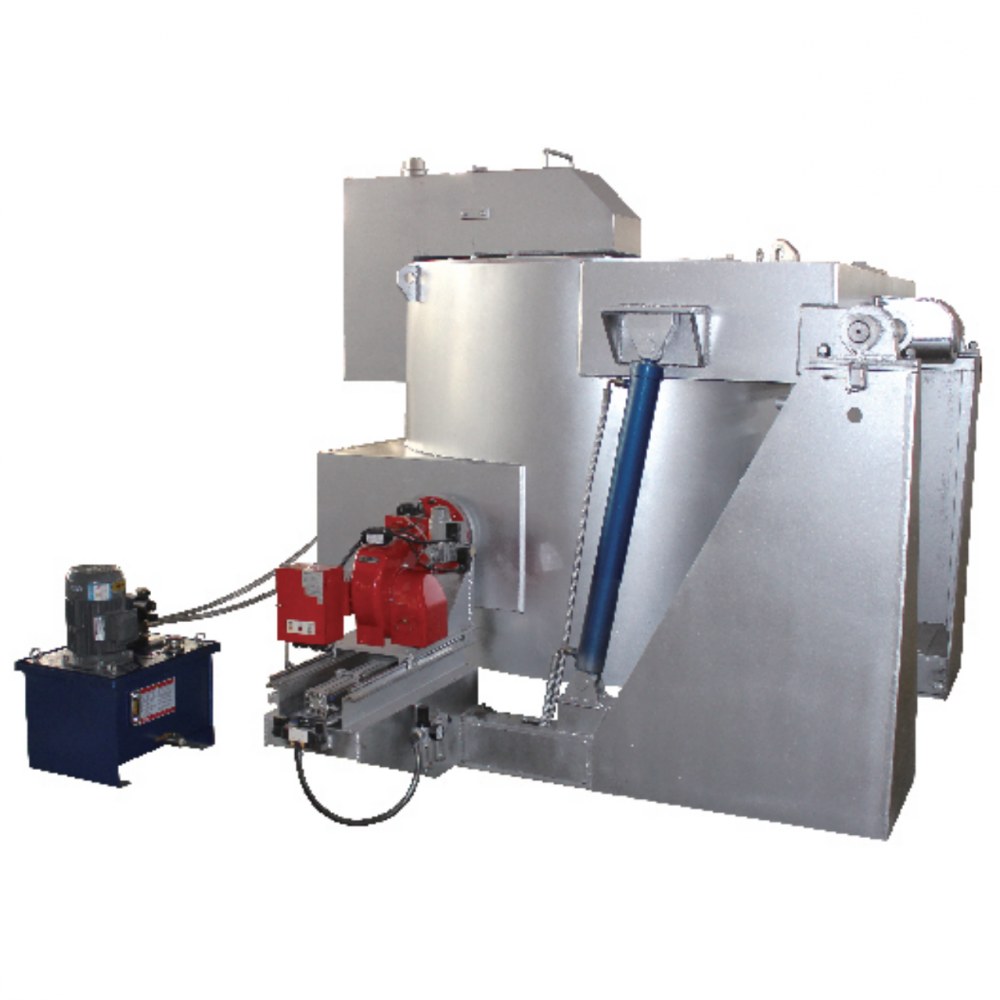

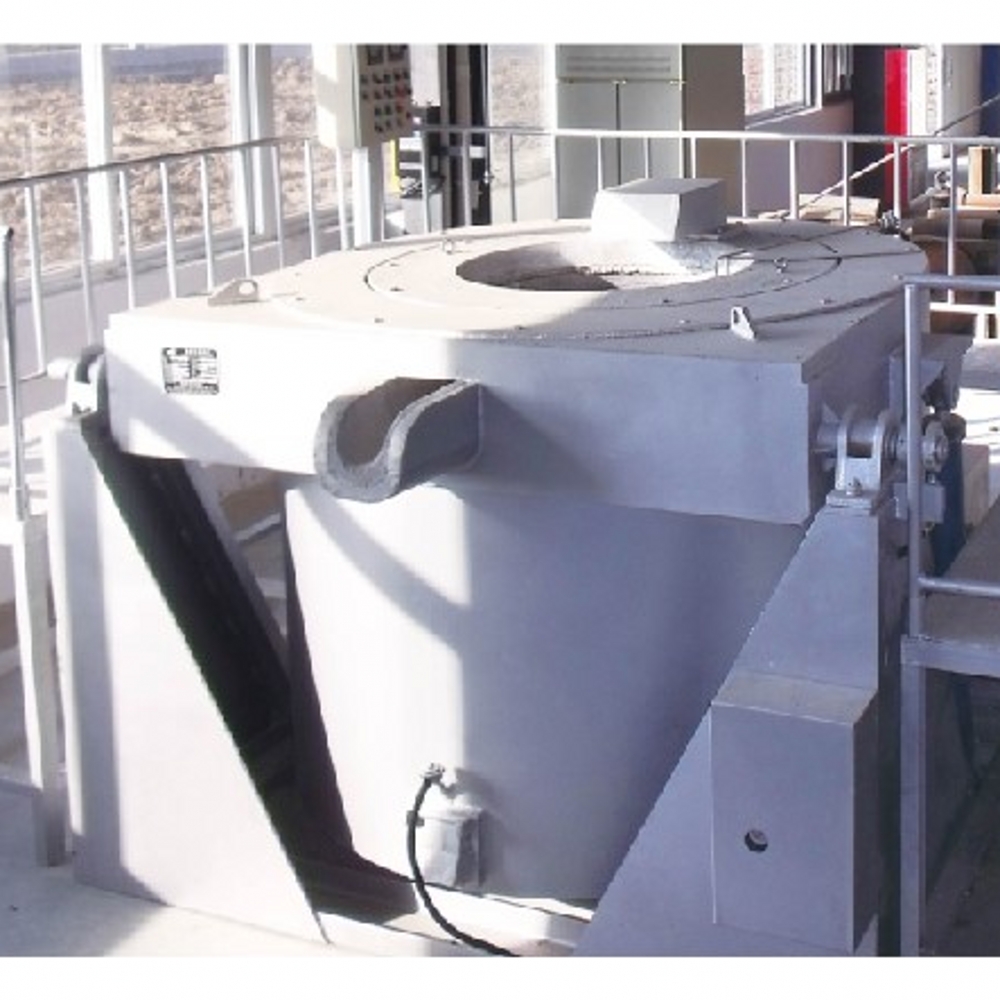

QGQR Gas Crucible Tilting Furnace
1.Furnace lining is composed of high aluminum lightweight brick and refractory fiber, which has the characteristics of good heat preservation, small heat storage and fast heating speed, and the temperature rise of furnace wall is less than 35°C;
2.Adopts inlet temperature control instrument, PID control, furnace temperature stability control at ≤±5°C;
3.Equipped with a non-metallic thermocouple protection tube, direct measurement of aluminum temperature, double temperature control, conducive to the correct implementation of the process;
4.Selected imported graphite crucible, good thermal conductivity, long service life, no iron proliferation;
5.Adopts international famous brand burner with stable performance and long service life;

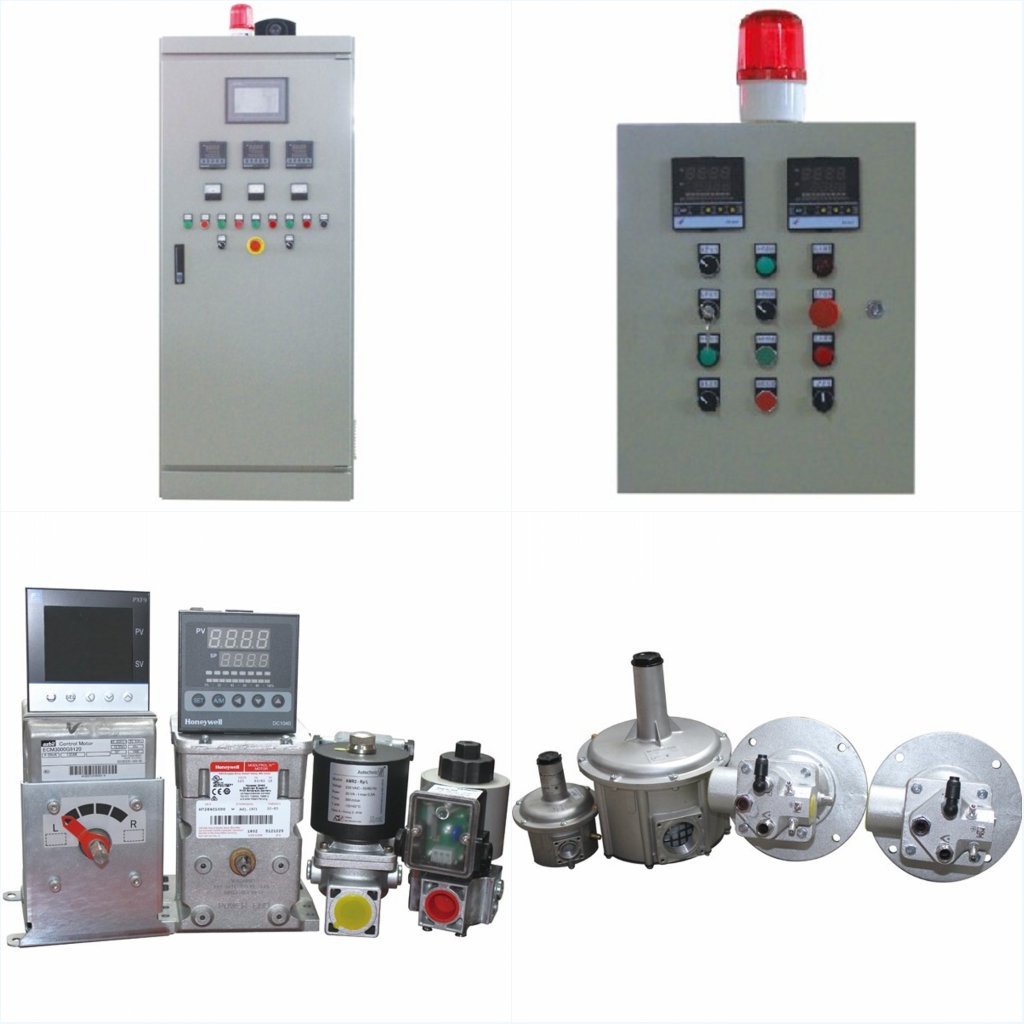

6.Control system is also equipped with leakage alarm, over temperature alarm and other functions to ensure the safety of equipment and operation;
7.Hydraulic automatic water dumping, easy to operate, safe and reliable;
8.LPG (liquefied petroleum gas), LNG (liquefied natural gas), diesel, cold gas and urban gas can be used as fuel.
Specification List

Model Holding capacity
kg
Melting capacity
kg/h
Power
104Kcal/h
Length
mm
Width
mm
Height
mm
Energy consumption Nm3/T
QGQR-400 400 150 15 1890 1660 1480 90
QGQR-600 600 200 20 2200 1850 1620 90
QGQR-800 800 300 30 2250 1950 1850 90
QGQR-1000 1000 350 30 2250 1950 1950 90
