Gas Crucible Melting Furnace With Recovery System 200kg

High Preformance
Energy Saving
High Efficiency
Higher Stability

Product Description

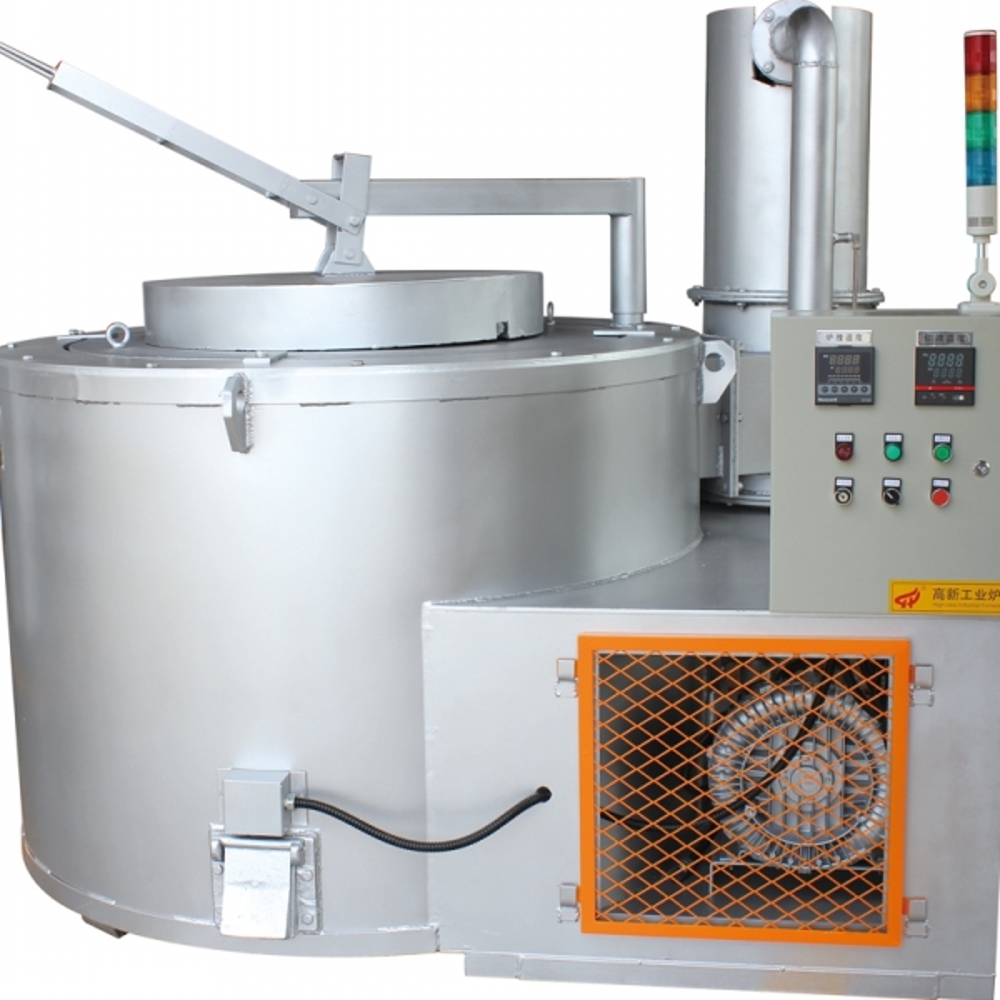

Gas Crucible Melting Furnace

1.Furnace lining is composed of high aluminum lightweight brick and refractory fiber, which has the characteristics of good heat preservation, small heat storage and fast heating speed, and the temperature rise of furnace wall is less than 35°C;

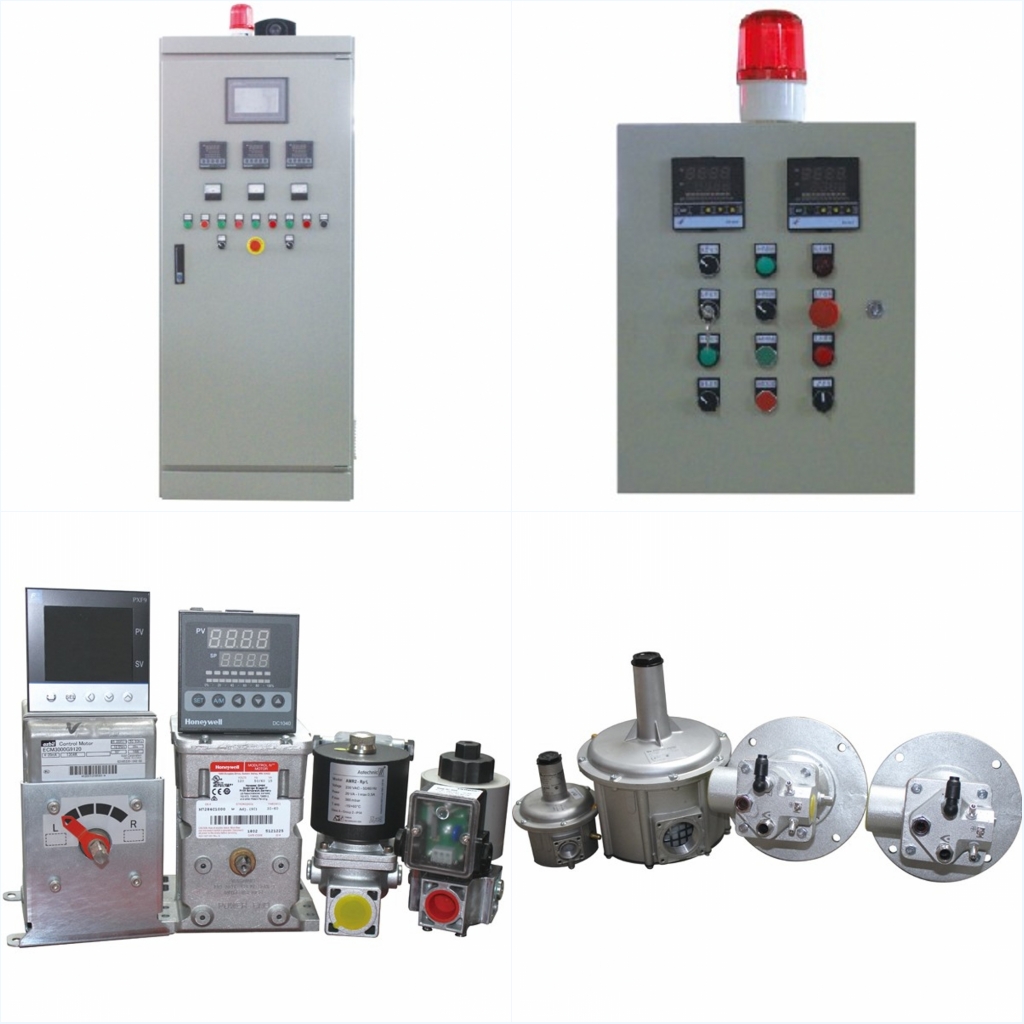

2.Adopts inlet temperature control instrument, PID control, furnace temperature stability control at ±5°C;

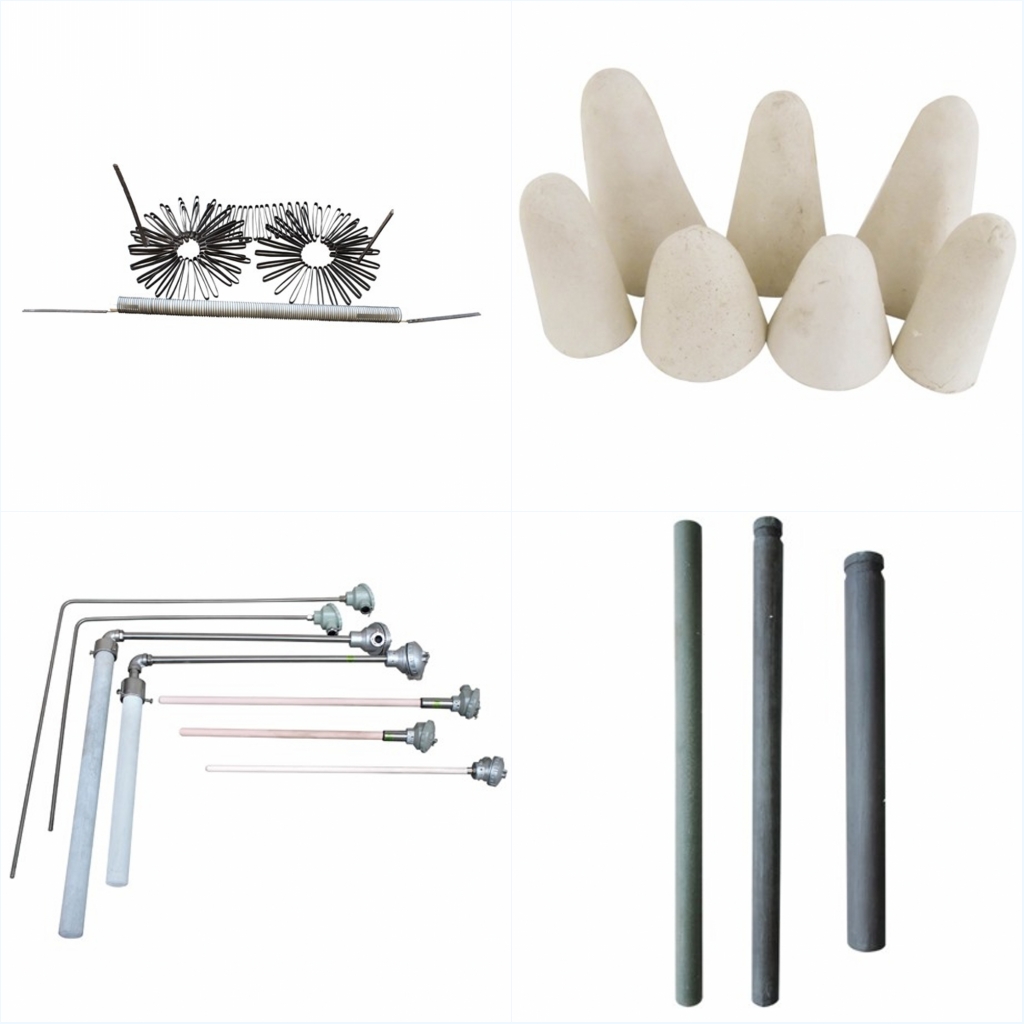

3.Equipped with a non-metallic thermocouple protection tube, direct measurement of aluminum temperature, double temperature control, conducive to the correct implementation of the process;
4.Selected imported graphite crucible, good thermal conductivity, long service life, no iron proliferation;
5.Control system is also equipped with leakage alarm, over temperature alarm and other functions to ensure the safety of equipment and operation;
6.Adopts the international famous brand split burner, the performance is stable, the automation degree is high, the maintenance is convenient;
7.Adopts the heat exchange device, the flue gas waste heat heating fuel air, enhances the waste heat recovery utilization ratio to the maximum extent.
Specification List

Model Holding Capacity
kg
Melting capacity
kg/h
Power
104 kcal/h
Outer Diameter
mm
Height
mm
Energy consumption Nm³/T
FGQR-100 100 40 10 1245 970 80
FGQR-150 150 60 10 1245 970 80
FGQR-200 200 80 10 1245 970 80
FGQR-250 250 100 13 1320 1050 80
FGQR-300 300 120 13 1320 1050 80
FGQR-400 400 150 20 1390 1070 80
FGQR-500 500 200 20 1500 1150 80
FGQR-600 600 250 20 1500 1150 80
FGQR-800 800 300 27.5 1700 1440 80
FGQR-900 900 300 27.5 1700 1440 80
FGQR-1000 1000 350 27.5 1700 1440 80
