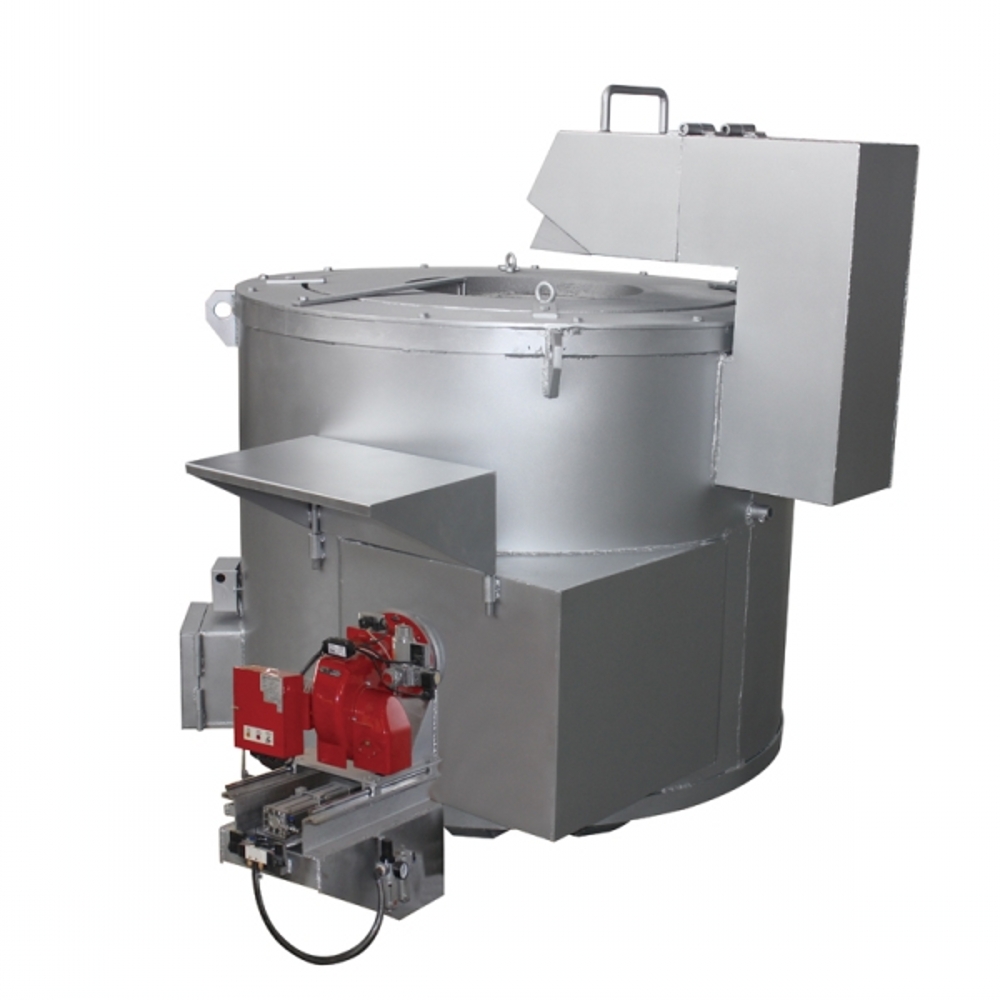

Gas Crucible Melting Furnace 400kg

High Preformance
Energy Saving
High Efficiency
Higher Stability

Product Description

1.Furnace lining is composed of high aluminum lightweight brick and refractory fiber, which has the characteristics of good heat preservation, small heat storage and fast heating speed, and the temperature rise of furnace wall is less than 35°C.
2.Adopts inlet temperature control instrument, PID control, furnace temperature stability control at ≤±5°C;
3.Equipped with a non-metallic thermocouple protection tube, direct measurement of aluminum temperature, double temperature control, conducive to the correct implementation of the process;
4.Selected imported graphite crucible, good thermal conductivity, long service life, no iron proliferation;
5.Adopts international famous brand burner with stable performance and long service life;
6.Control system is also equipped with leakage alarm, over temperature alarm and other functions to ensure the safety of equipment and operation.
Specification List

Model Holding Capacity
kg
Melting capacity
kg/h
Power
104 kcal
Outer Diameter
mm
Height
mm
Energy consumption
Nm3/T
GQR-100 100 40 15 Φ1200 970 90
GQR-150 150 60 15 φ1250 970 90
GQR-200 200 80 15 φ1250 970 90
GQR-250 250 100 15 φ1330 1100 90
GQR-300 300 120 15 φ1330 1100 90
GQR-400 400 150 15 φ1330 1150 90
GQR-500 500 200 20 φ1510 1150 90
GQR-600 600 250 20 φ1510 1150 90
GQ R-800 800 300 30 φ1700 1520 90
GQR-900 900 300 30 φ1700 1520 90
GQR-1000 1000 350 30 φ1700 1520 90
