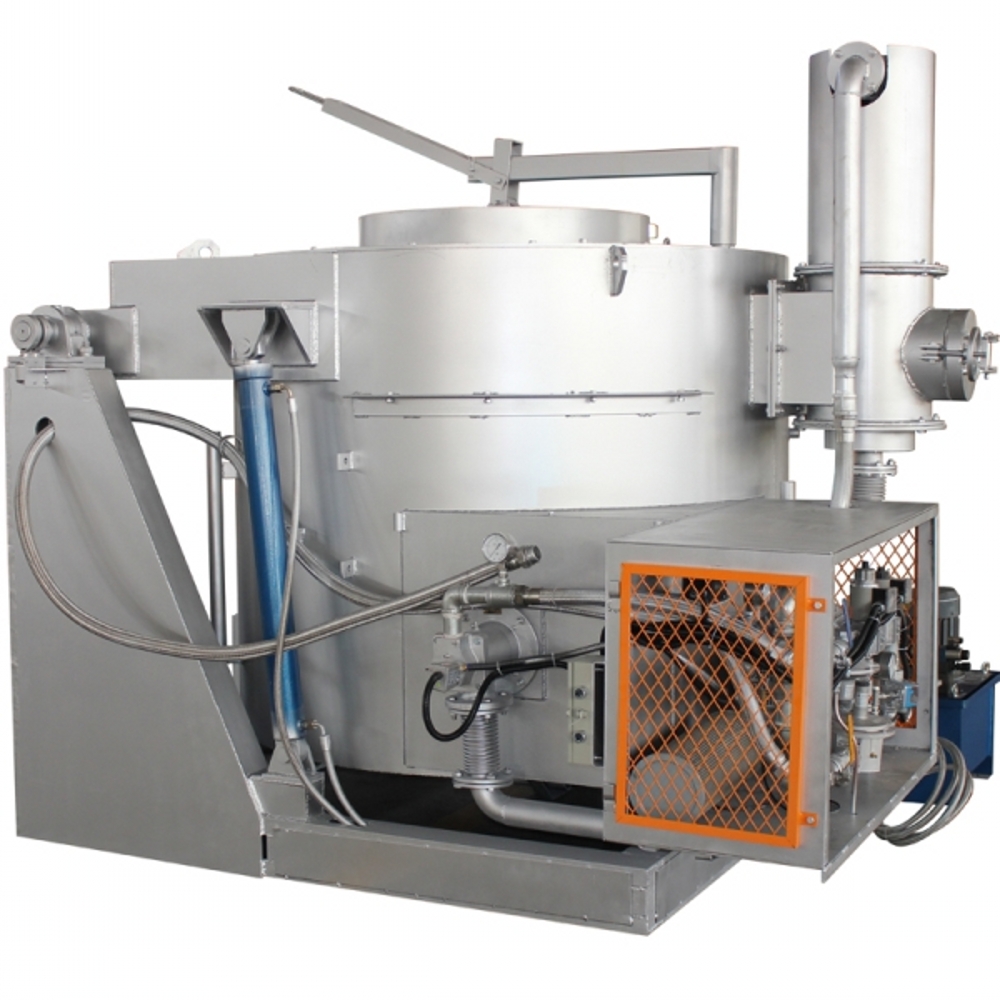

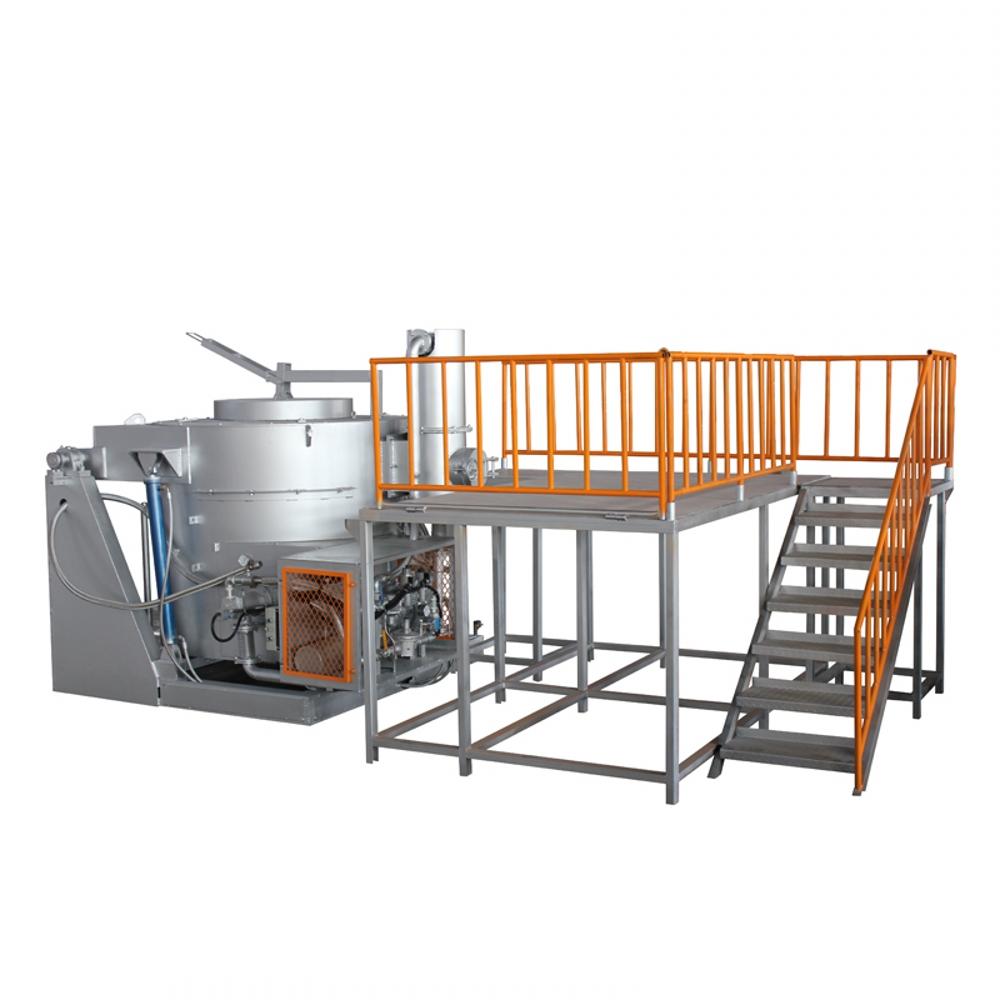

Gas Crucible Dumping Furnace 400kg

High Preformance
Energy Saving
High Efficiency
Higher Stability

Product Description

1.Furnace lining is composed of high aluminum lightweight brick and refractory fiber, which has the characteristics of good heat preservation, small heat storage and fast heating speed, and the temperature rise of furnace wall is less than 35°C.
2.Adopts inlet temperature control instrument, PID control, furnace temperature stability control at ≤±5°C;
3.Equipped with a non-metallic thermocouple protection tube, direct measurement of aluminum temperature, double temperature control, conducive to the correct implementation of the process.
4.Selected imported graphite crucible, good thermal conductivity, long service life, no iron proliferation;
5.Control system is also equipped with leakage alarm, over temperature alarm and other functions to ensure the safety of equipment and operation;
6. hydraulic automatic water dumping, easy to operate, safe and reliable;
7.Adopts the international famous brand split burner, the performance is stable, the automation degree is high, the maintenance is convenient;
8.Adopts the heat exchange device, the flue gas waste heat heating fuel air, enhances the waste heat recovery utilization ratio to the maximum extent.
Specification List

Model Holding capacity
kg
Melting capacity
kg/h
Power
104Kcal/h
Length
mm
Width
mm
Height
mm
Energy consumption Nm3/T
FQGQR-400 400 150 20 2400 2150 2170 80
FQGQR-600 600 200 20 2550 2300 2260 80
FQGQR-800 800 300 27.5 2700 2500 2280 80
FQGQR-1000 1000 350 27.5 2700 2500 2380 80
