Experimental Magnesium Melting Furnace 25kg/h

High Preformance
Energy Saving
High Safety
Higher Stability

Product Description

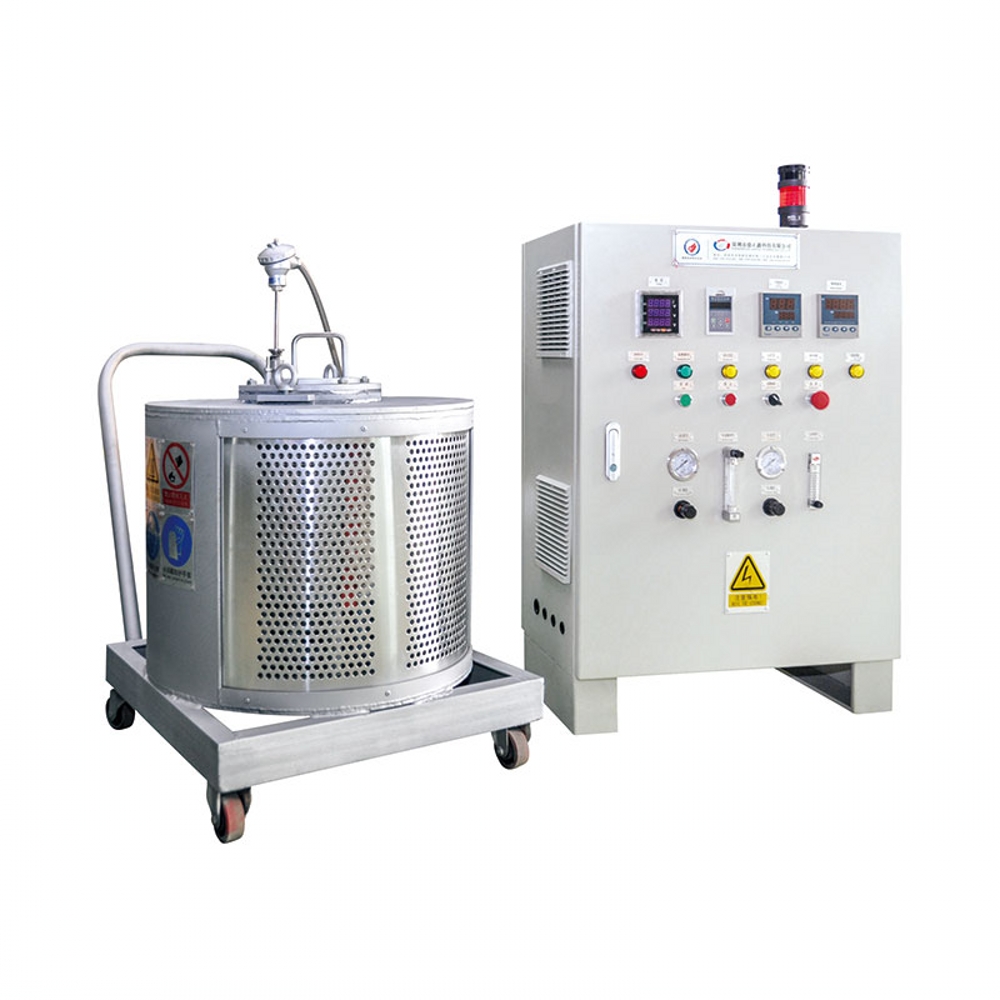

DME Experimental Magnesium Melting Furnace
This experimental furnace is suitable for the research of magnesium alloys used by research institutes and universities and universities, and can be customized according to the needs of various non-standard furnaces.
Specification List

Parameter Unit DME10 DME30 DME50 DME100
Furnace size mm 800*900*1100 800*900*1100 1000*1000*1200 1100*1100*1250
Rated capacity Kg 10 30 50 100
Melting rate Kg/h 3 12 25 45
Crucible structure
Single chamber round Single chamber round Single chamber round Single chamber round
Rated power Kw 8 10 12 40
Rated current A 36 45 18 60
Rated power/frequency/Phase number V/Hz/Phase 220/50/Single-phase 220/50/Single-phase 380/50/3 380/50/3
Furnace working temperature ºC ≤680 ≤680 ≤680 ≤680
provide gas temperature ºC 350 350 350 350
Protection gas flow L/min 1~5 1~5 2~10 5~15
Pouring way
Manual dumping or hydraulic dumping Manual dumping or hydraulic dumping Manual dumping or hydraulic dumping Manual dumping or hydraulic dumping
Furnace weight Kg 400 500 580 700

This experimental furnace is suitable for the research of magnesium alloys used by research institutes and universities and universities, and can be customized according to the needs of various non-standard furnaces.
Note: The company reserves the right to make improvements to the products described in the samples. Specifications are subject to change without notice. The product images in the samples are for reference only and the products are subject to actual products.
