Electrical Rotary Crucible Furnace 2X150kg

High Preformance
Energy Saving
High Efficiency
Higher Stability

Product Description

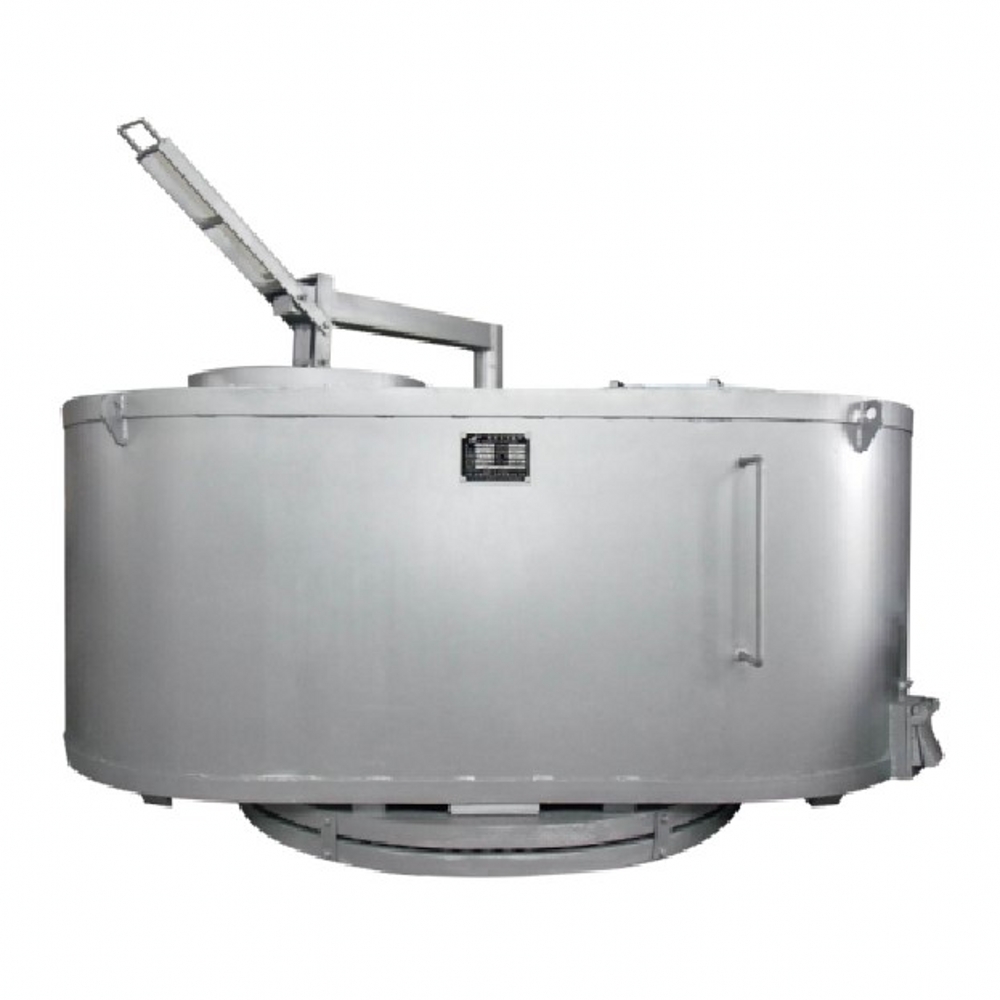

XGDR Electrical Heating Rotary Double Crucible Furnace
1.Double crucible design, furnace can be manual or electric rotation, alternate use;
2.Furnace lining is pressed by imported refractory fiber module, replacing the original refractory brick structure, which has the characteristics of good heat preservation effect, small heat storage capacity and high heating speed, and the temperature rise of furnace wall is less than 25°C;
3.Adopts inlet temperature control instrument, PID control, furnace temperature stability control at ±5°C;
4.Equipped with a non-metallic thermocouple protection tube, direct measurement of aluminum temperature, double temperature control, conducive to the correct execution of the art;
5.Selected imported graphite crucible, good thermal conductivity, long service life, no iron proliferation;
6.It is heated by high temperature alloy resistance band, which has the characteristics of large heat dissipation surface area and long service life;
7.Control system is also equipped with leakage alarm, over temperature alarm and other functions to ensure the safety of equipment and operation;
8.Furnace cover under pressure rotation, easy to operate.
Specification List

Model Holding capacity
kg
Melting capacity
kg/h
Electrical power
KW
Length
mm
Width
mm
Height
mm
XGDR-150 x 2 150×2 50×2 45×2 2390 1250 1150
XGDR-200 x 2 200×2 60×2 45×2 2390 1250 1150
XGDR-250 x 2 250×2 80×2 55×2 2450 1280 1200
XGDR-300 x 2 300×2 100×2 75×2 2700 1450 1250
XGDR-400 x 2 400×2 120×2 75×2 2700 1450 1450
XGDR -500 x 2 500×2 150×2 90×2 2900 1500 1300
XGDR -600 x 2 600×2 180×2 90×2 2900 1500 1450
XGDR -800 x 2 800×2 200×2 120×2 3200 1650 1650
