Electrical Magnesium Dosing Furnace 620kg/h

High Preformance
Energy Saving
High Safety
Higher Stability

Product Description

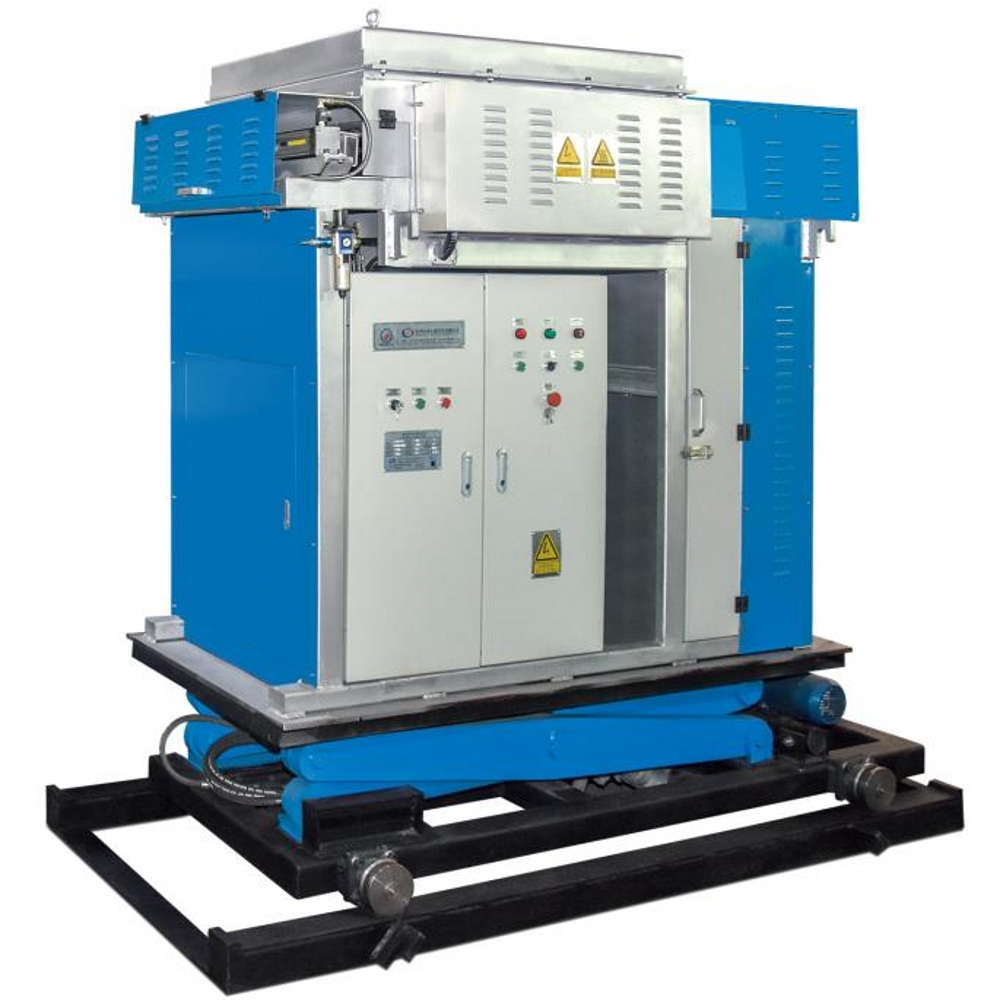

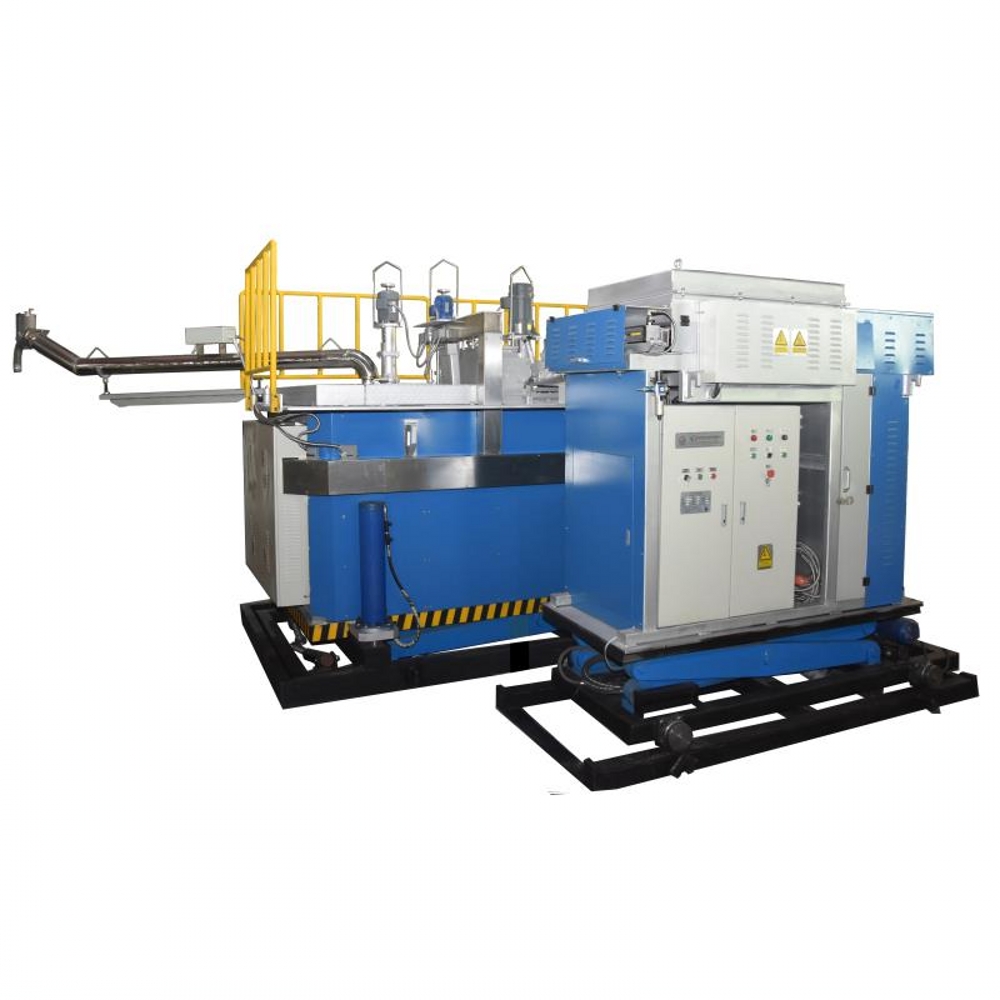

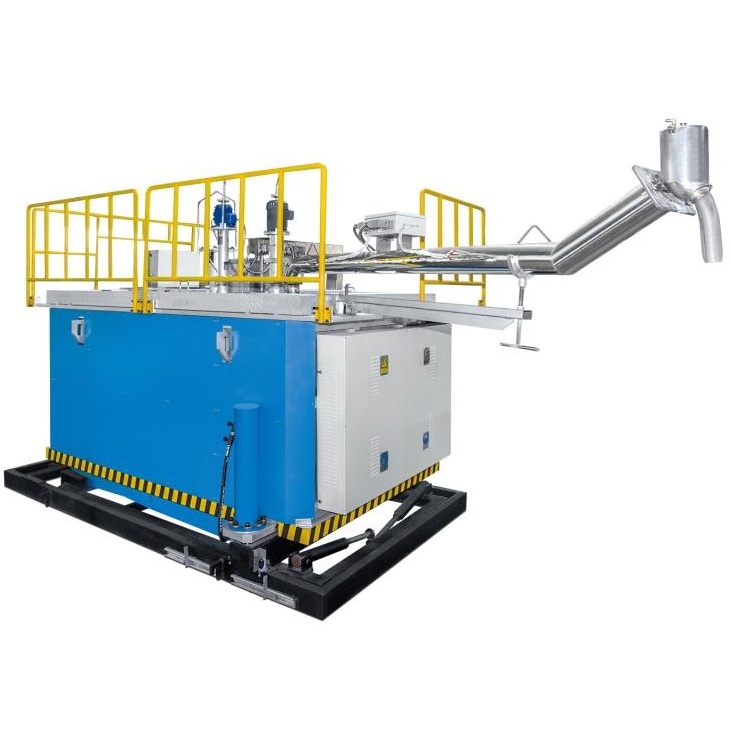

DMD large size Electrical Magnesium Dosing Furnace
Characteristic:

  1. Insulation furnace over-temperature, leaking furnace automatic alarm.
  2. Protection alarm is low, and the protection air flow is low.
  3. Heated device short circuit, overload automatic power off protection.
  4. Thermal short circuit and open circuit fault alarm automatically.
  5. Alarm and fault information can be traced back.
  6. Power supply voltage, operating current LED display.
  7. Working status I/O output signal is automatically displayed.
  8. Furnace parameter input authorization password control.
  9. The backup protection gas is automatically switched.
  10. Peripheral device PLC output can be expanded.
  11. The status indicator on the control panel of the key work status.
  12. Real-time temperature curve visually tracks temperature changes.
  13. Temperature data can be exported and process data can be analyzed and saved.
  14. The inductive detection function of the bismuth magnesium liquid outlet prevents the empty hammer from being discharged when the pouring pipe is blocked.
  15. The quantity and quantity of strontium magnesium ingots are automatically recorded and inquired.

Specification List

NO Item Unit Type and Technology Parameter
DMD-1500T DMD-2000T DMD-2500T DMD-3000T DMD-3500T
01 Furnace external dimensions mm 2800*2000*3000 4300*2260*3000 4600*2800*3100 4800*3000*3300 4900*3100*3500

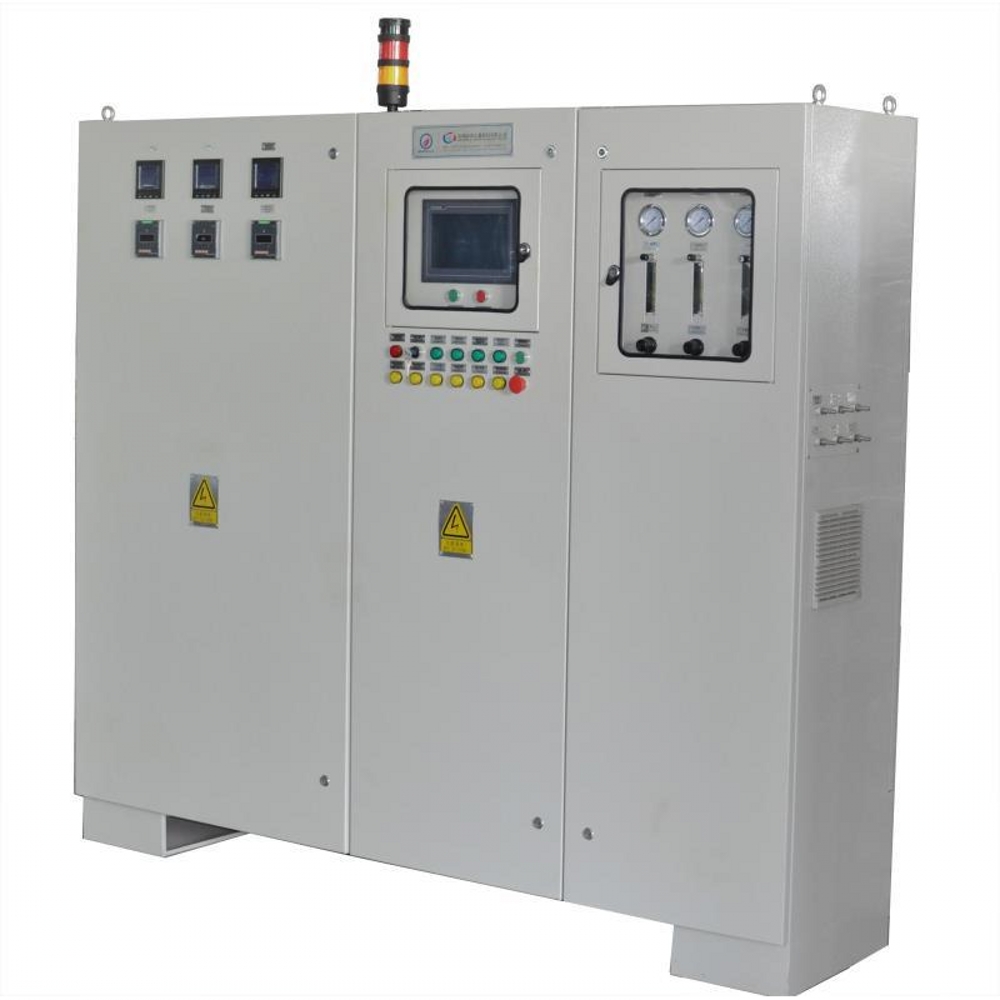

02 Control cabinet external dimensions mm 1950*500*1900 2025*500*1900 1950*500*1900
1300*500*1900
1950*500*1900
1600*500*1900
1950*500*1900
1950*500*1900
03 Power Kw 280KW 310KW 380KW 450KW 520KW
04 voltage V 380 380 380 380 380
05 current A 420 460 570 670 780
06 Crucible Volume Kg 1500 2000 2500 3000 3500
07 Crucible thickness mm 28 28 30 35 35
08 Melting rate Kg/h 560 620 760 900 1040
09 Furnace working temperature ºC 900 900 900 900 900
10 Magnesium liquid temperature ºC 700 700 700 700 700
11 Main gas type SF6/R134 SF6/R134 SF6/R134 SF6/R134 SF6/R134 SF6/R134
12 Transportation gas type N2/Ar N2/Ar N2/Ar N2/Ar N2/Ar N2/Ar
13 Mix gas flow L/min 25-35 30-40 35-45 40-55 45-60
14 Pouring pump power Kw 0.75 0.75 0.75 0.75 0.75
15 Max pouring volume Kg/s 2.0 2.0 2.0 2.0 2.0
16 Pouring precision % ±1.5 ±1.5 ±1.5 ±1.5 ±1.5
17 Transportation pipe power Kw 6KW 6KW 6KW 6KW 6KW
18 Magnesium ingot entrance pcs 1 1 2 2 2
19 Helping melting stir Yes/No Yes Yes Yes Yes Yes

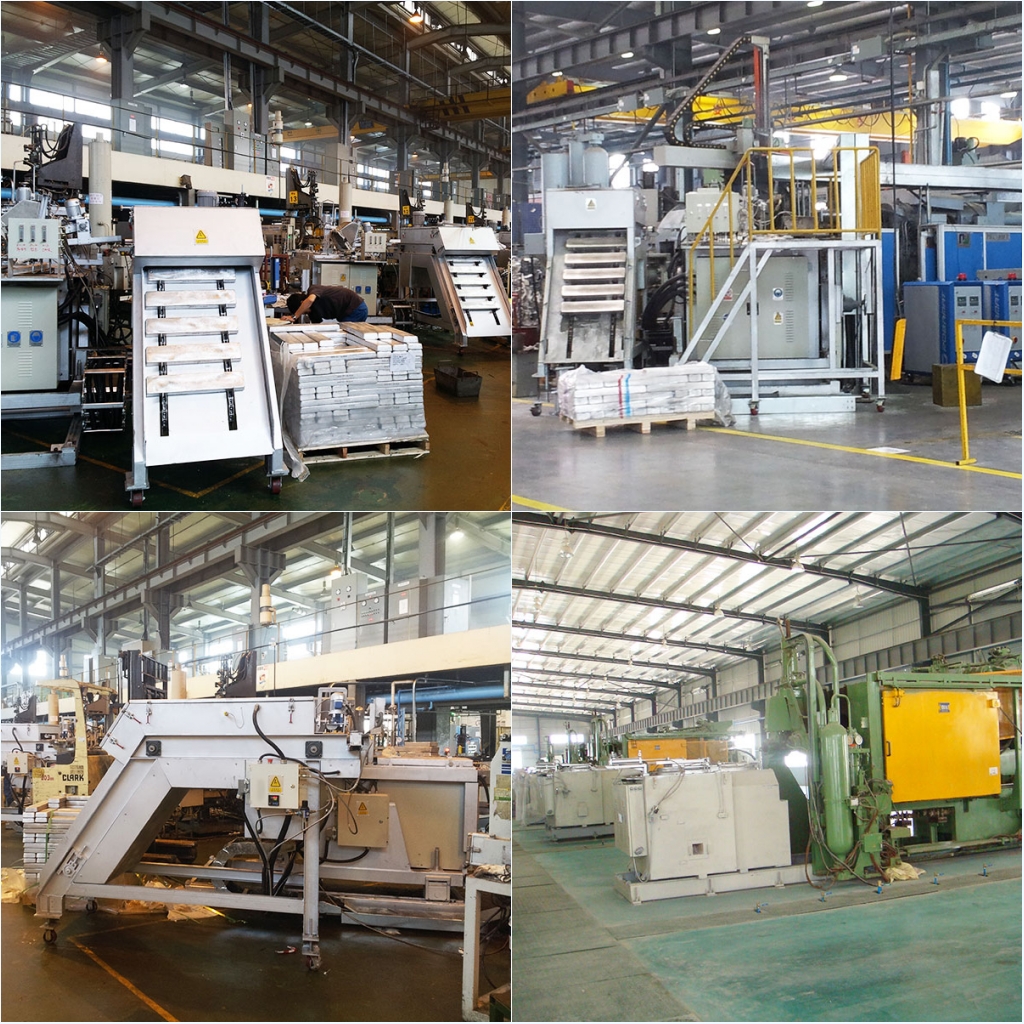

Remarks: The above furnace needs to be equipped with a magnesium ingot automatic preheating feeder according to the number of magnesium ingots.
