Electrical Magnesium Alloy Dosing Furnace 350kg/h

High Preformance
Energy Saving
High Safety
Higher Stability

Product Description

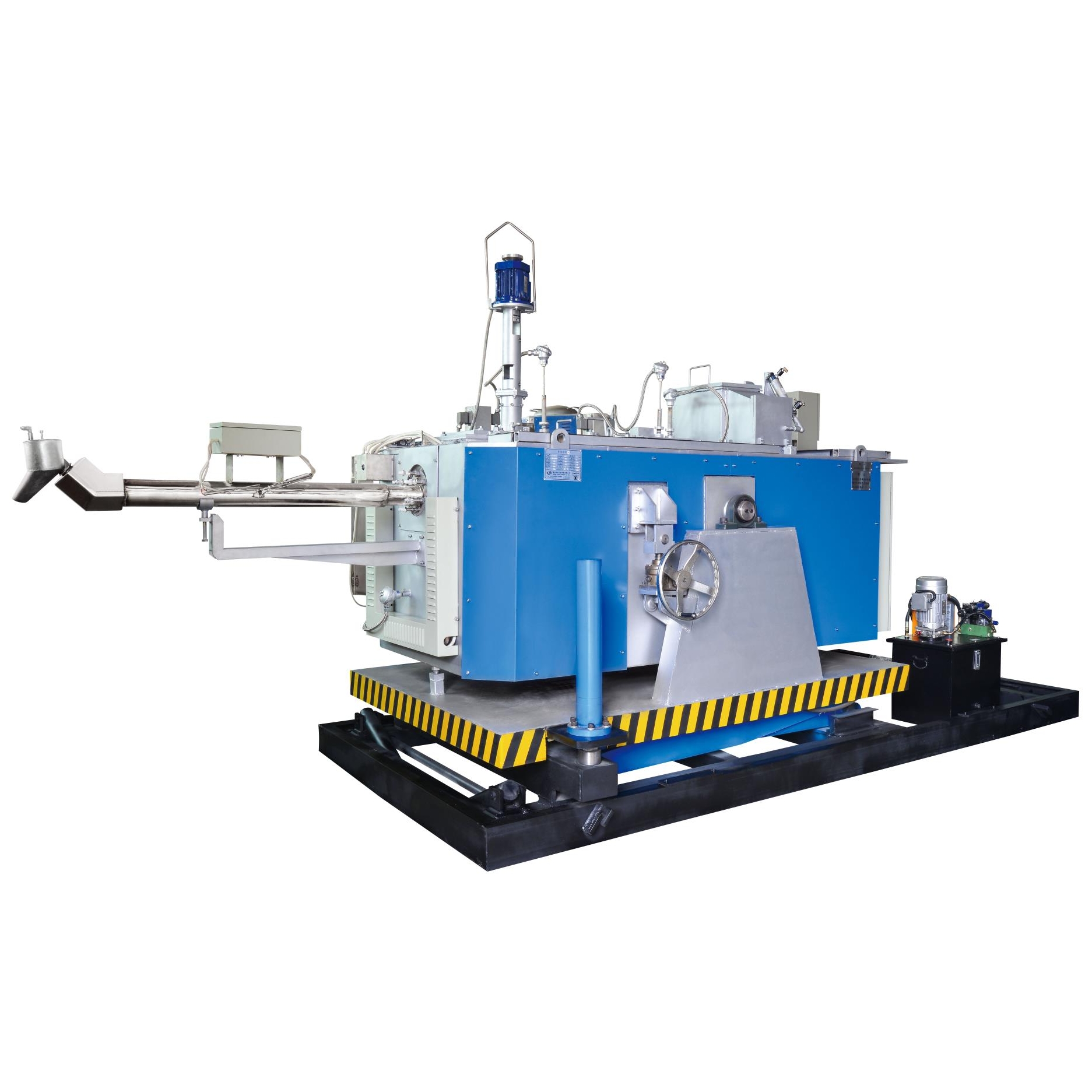

DMD-J Series Electrical Magnesium Alloy Furnace
Structural systems:

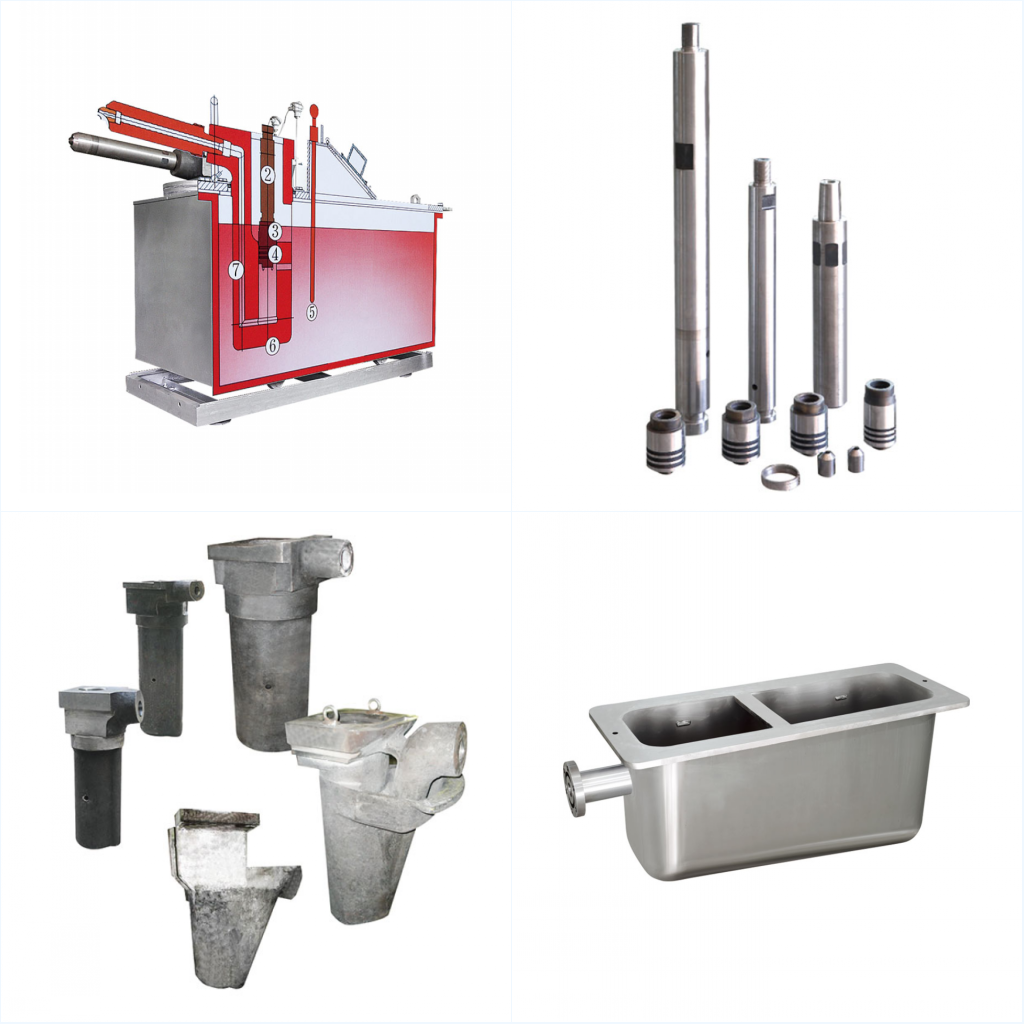

1) Crucible made of special composite steel plate, no contamination of magnesium liquid, anticorrosive structure, long service life;
2) Stainless Steel Case and Panel, Corrosion Resistance, High Temperature Resistance (Patent: ZL201430063916.2)

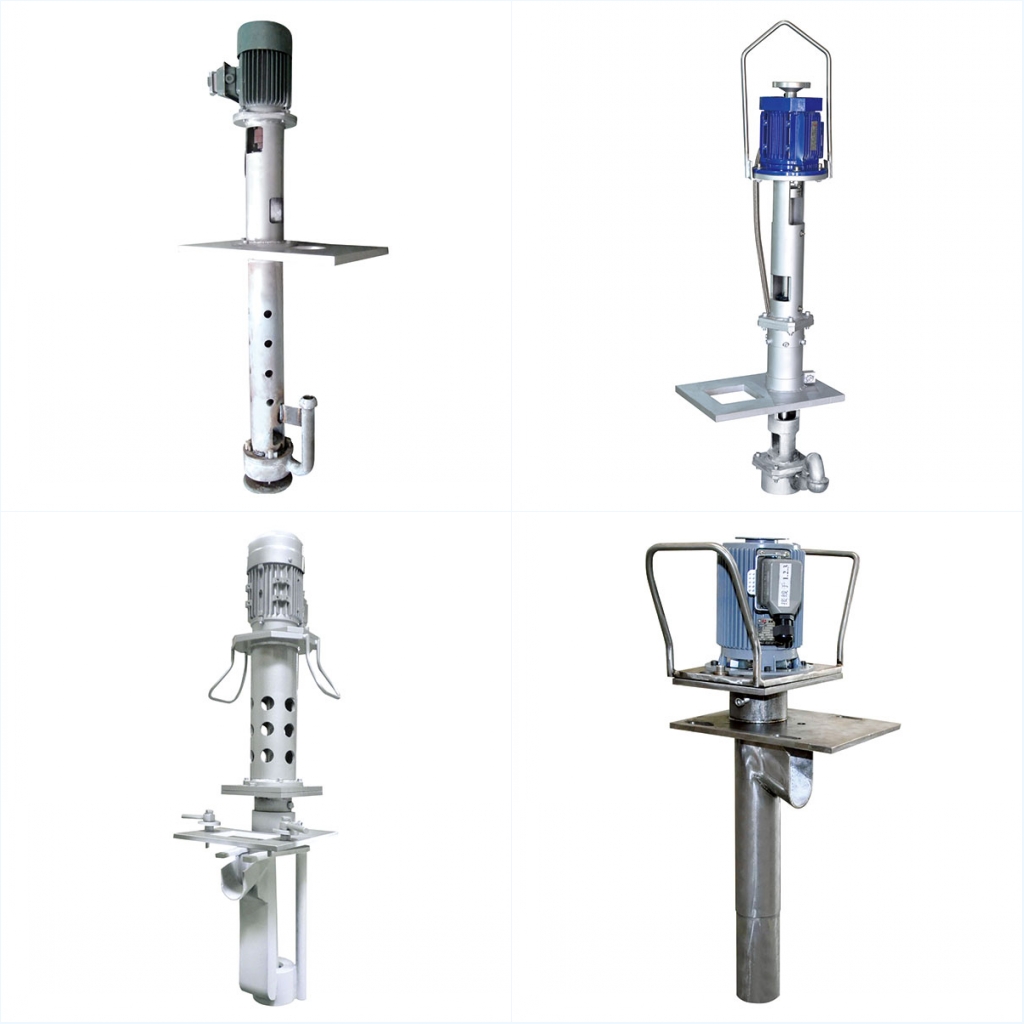

3) Quantitative pump instantaneous flow design, maintenance time of more than 30 days (patent: ZL201220249304.8)
4) Transmission pipe is made of special corrosion resistant material and can be changed quickly for more than 30 days (patent: ZL201120347014.2)

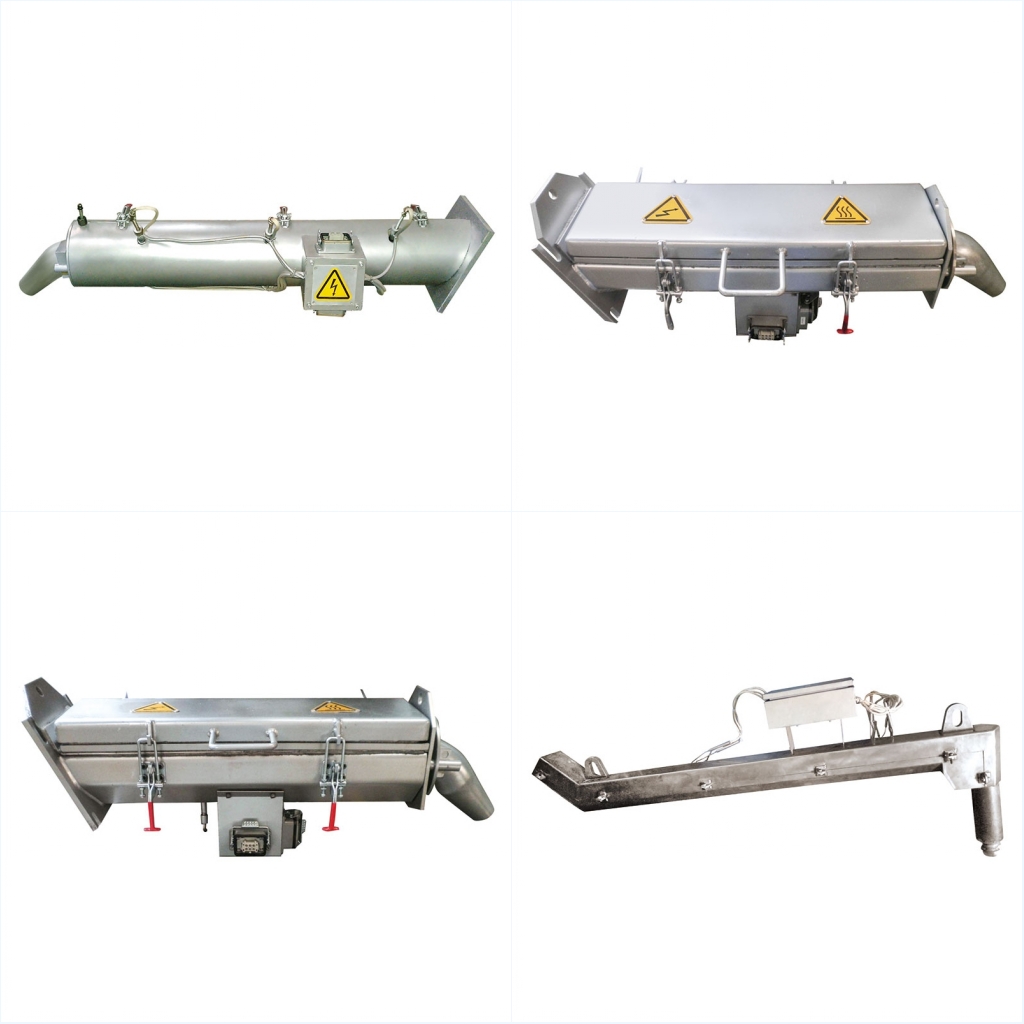

5) Preheater adopts the clamping mechanism, which makes the liquid level control stable and the feed accurate (Patent: ZL201420137471.2)
Design of 6) Anti-blocking Magnesium Alloy Bend (Patent: ZL201120322157.8)
7) Perfect Cleaning Tool (Patent: ZL201120323381.9)
Product details

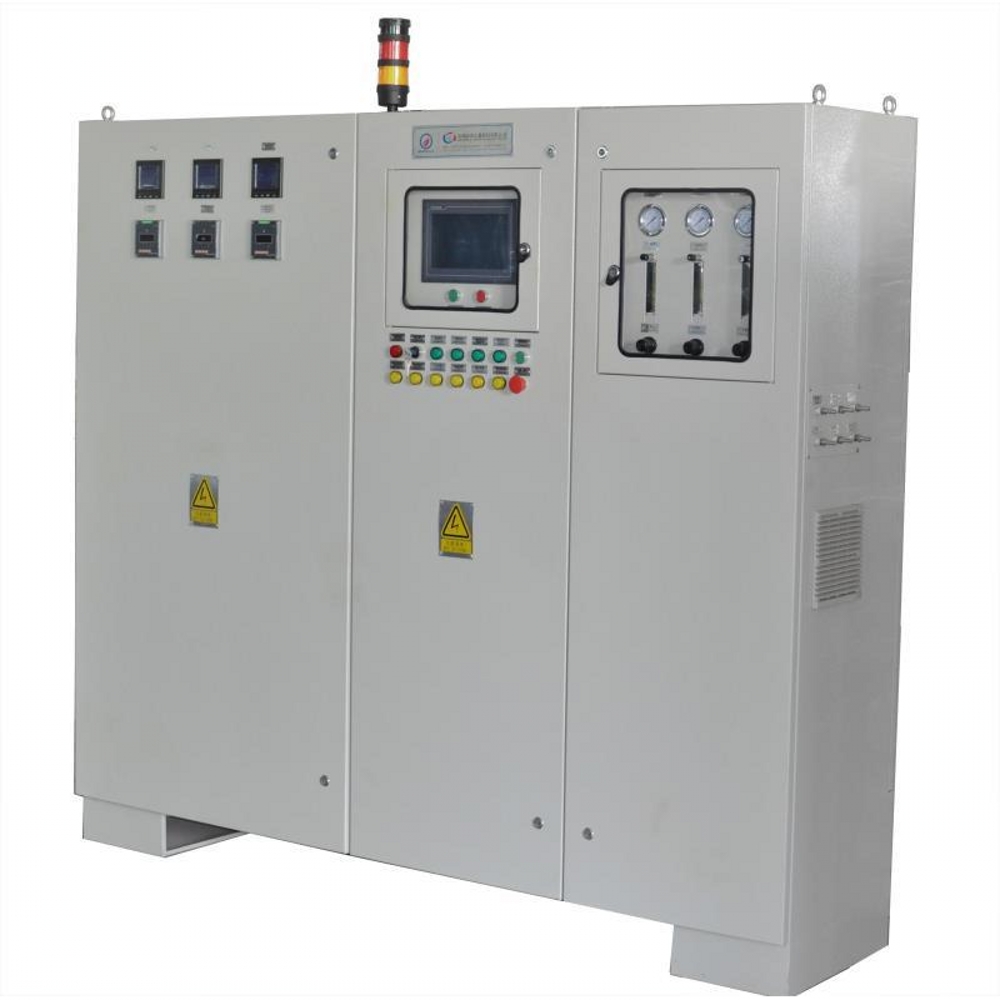

Control system:
1) With Siemens PLC control center ,14' ultra-large color touch screen
2) Can realize remote function
3) The imported KOFLOC flux controls the protective air flow, saves the gas and protects the crucible
Safety:
1) Gas undervoltage alarm, automatic protection function of blackout (patent: ZL201120347026.5)(patent: ZL201120347028.4)
2) Full touch screen real-time monitoring and prompt troubleshooting guidelines (software copyright)
3) Protection function for electrical components (Patent Design: ZL201120347030.1)
Specification List

Parameter Unit DMD 250J DMD 300J DMD 500J DMD 800J DMD 1000J DMD 1200J DMD 1500J
Furnace size
(L*W*H)
Mm 2000*800*1000 2750*950*1300 3060*950*1300 3400*1000*1900 3650*1450*2350 3750*1550*2450 3900*1550*2550
Rated Capacity Kg 250 350 550 800 1000 1200 1500
Melting rate Kg/h 80 100 200 300 350 400 450
Crucible structure
Double Room
Power
V/Hz/
phase
380-420 V/50-60 Hz / three-phase five-wire
Rated Power KW 60 75 120 180 220 260 300
Rated Current A 90 120 180 270 330 390 450
Maximum operating temperature ºC 850
Maximum working temperature of magnesium liquid ºC 710
air supply temperature ºC 350
Transportation pipe temperature ºC 680-720
quantitative method
Centrifugal
Quantitative range Kg 0.2~5 0.2~5 0.2~5 0.5~10 0.5~10 0.5~20 0.5~20
Protective airflow (max.) L/min 25 25 25 25 50 50 50
Height of lifting frame mm 150 150 150 150 250 250 250
Lifting Distance mm 700 700 700 800 800 800 800
Noise DIN 45635-01-K1.2 dB(A) <85
Preheating power (max.) KW 20 20 20 30 30 60 60
Preheating temperature ºC 150-250 150-250 150-250 150-250 150-250 150-250 150-250
Furnace Weight Kg 1200 1500 2400 3000 4000 4500 5500
Model for die casting machines T ≤300 ≤400 ≤650 ≤900 ≤1250 ≤1250 ≤1650
Special note: the company for the above product pictures and parameters to retain the right of final interpretation!
