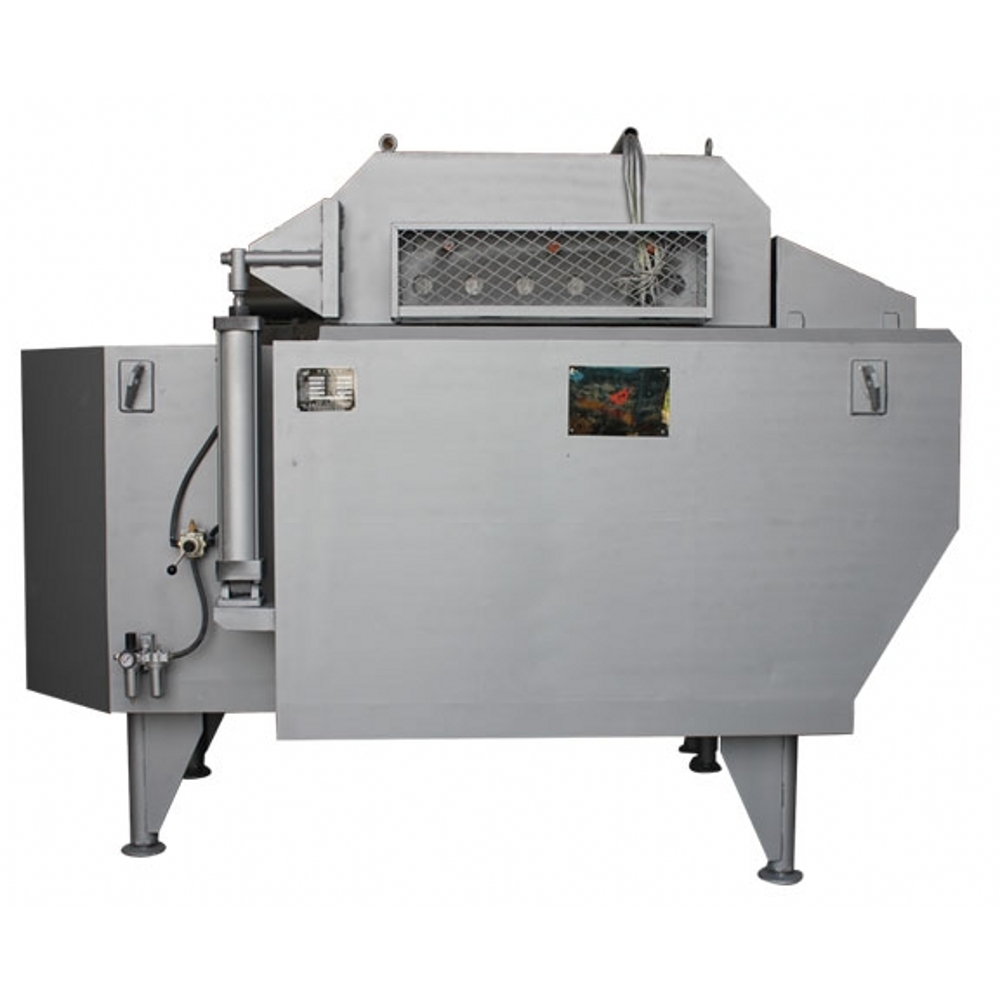

Electrical Holding Furnace 2500kg

High Preformance
Energy Saving
High Efficiency
Higher Stability

Product Description

electrical holding furnace

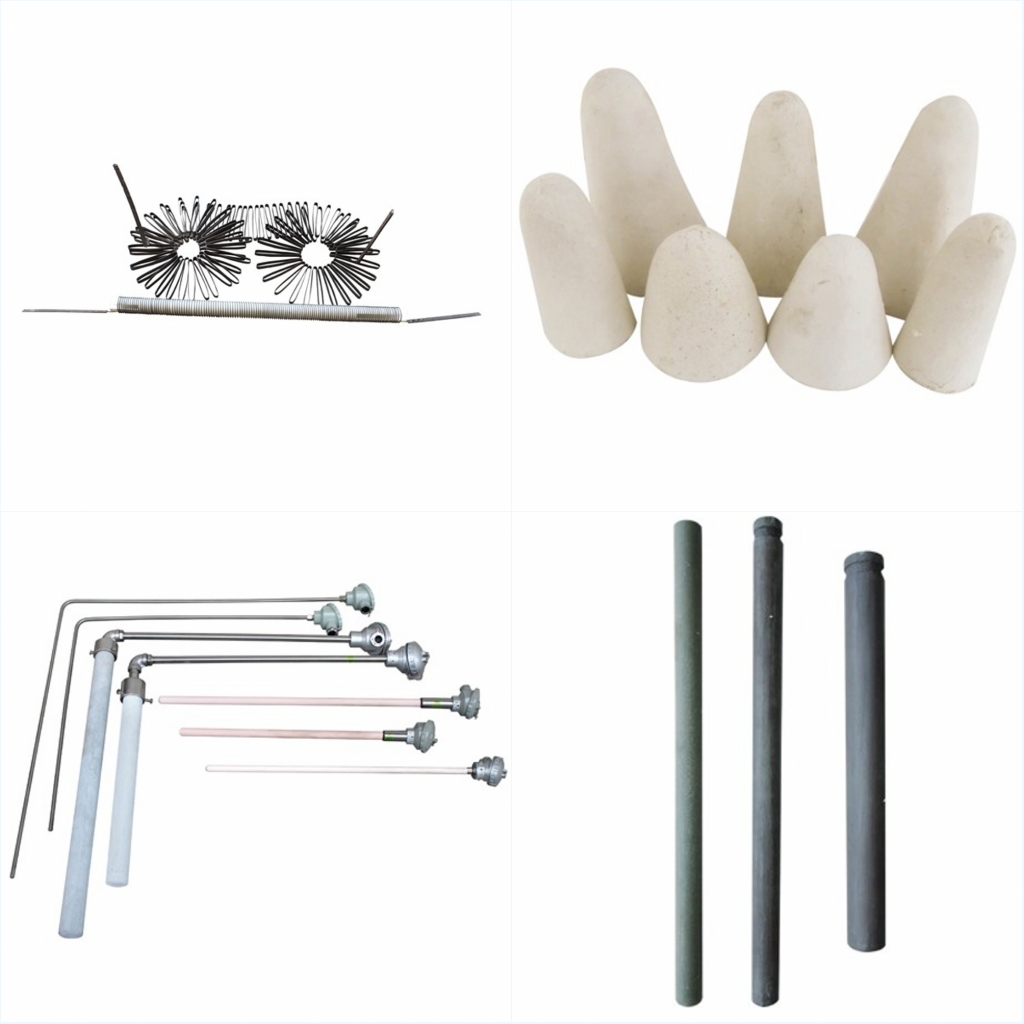

1.High temperature alloy wire or silicon carbon rod containing rare elements is used for heating, which is reliable, safe, long service life and easy to replace and maintain.
2.Furnace lining selected imported high-quality materials, integral pouring, service life of more than five years, no aluminum, no crucible loss, no iron proliferation;
3.Adopts nano-adiabatic material, the heat preservation effect is excellent, the temperature rise of furnace wall is less than 25°C;
4.Adopts non-metallic thermocouple protective tube to measure the temperature of aluminum liquid directly, double temperature control, PID control, aluminum temperature stability ≤±2°C;
5.With high temperature aluminum water, low temperature alarm, high aluminum water alarm and other functions, is conducive to the correct implementation of the process;
6.Unique furnace structure design, reduce unnecessary heat dissipation space, reduce heat loss to the minimum;
7.Furnace cover can be pneumatic lift, convenient slag cleaning and maintenance, high degree of automation.
Specification List

Model Holding Capacity
kg
Max electrical power
KW
Average electricity consumption
KW
Length
mm
Width
mm
Height of the soup outlet
mm
CRL-200-12 200 12 6 2130 1490 1050
CRL-300-12 300 12 6.5 2230 1490 1050
CRL-400-12 400 12 7 2280 1540 1050
CRL-500-15 500 15 7.5 2370 1590 1050
CRL-600-15 600 15 8 2520 1590 1050
CRL-800-18 800 18 9 2750 1660 1300
CRL-1000-21 1000 21 10 2810 1800 1500
CRL-1200-24 1200 24 12 3010 1800 1700
CRL-1500-27 1500 27 14 3210 1800 1700
CRL-2000-33 2000 33 16 3410 2000 1800
CRL-2500-39 2500 39 18 3510 2100 1800
CRL-3000-45 3000 45 20 3610 2200 1850
