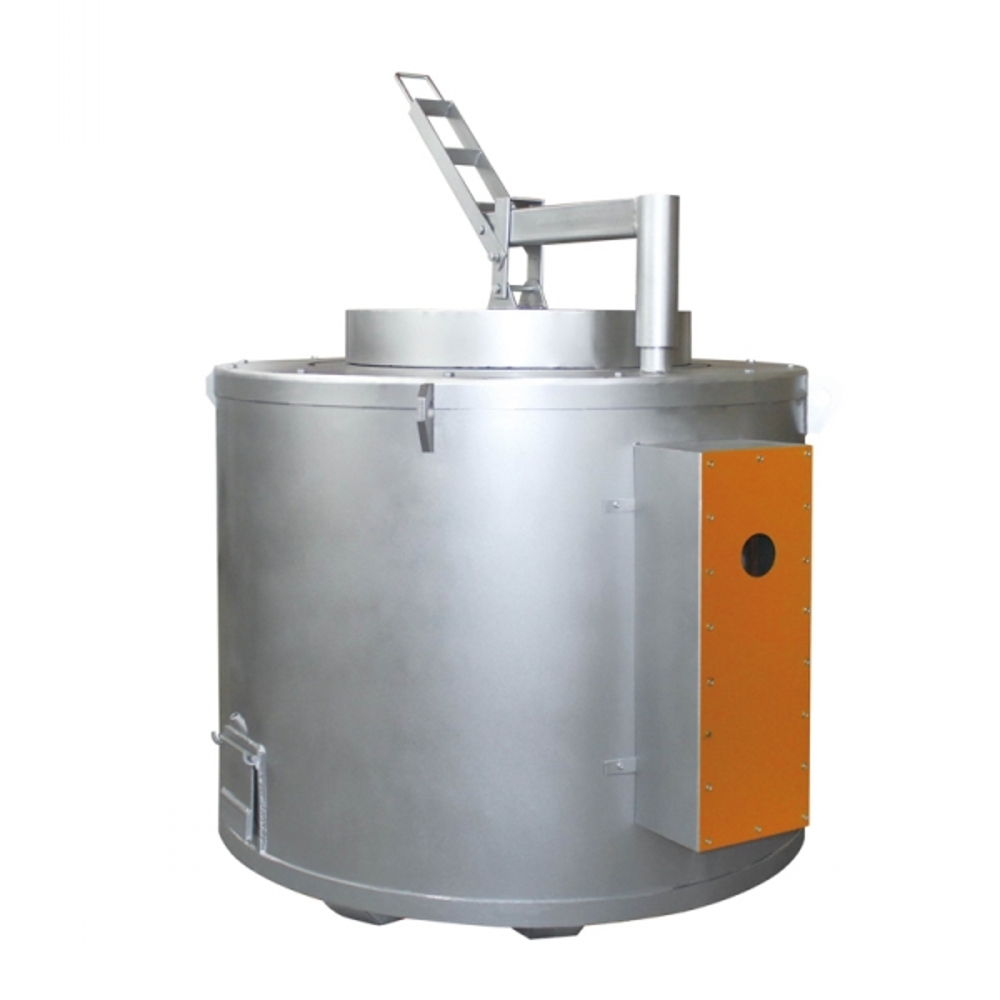

Electrical Crucible Melting Furnace 250kg

High Preformance
Energy Saving
High Efficiency
Higher Stability

Product Description

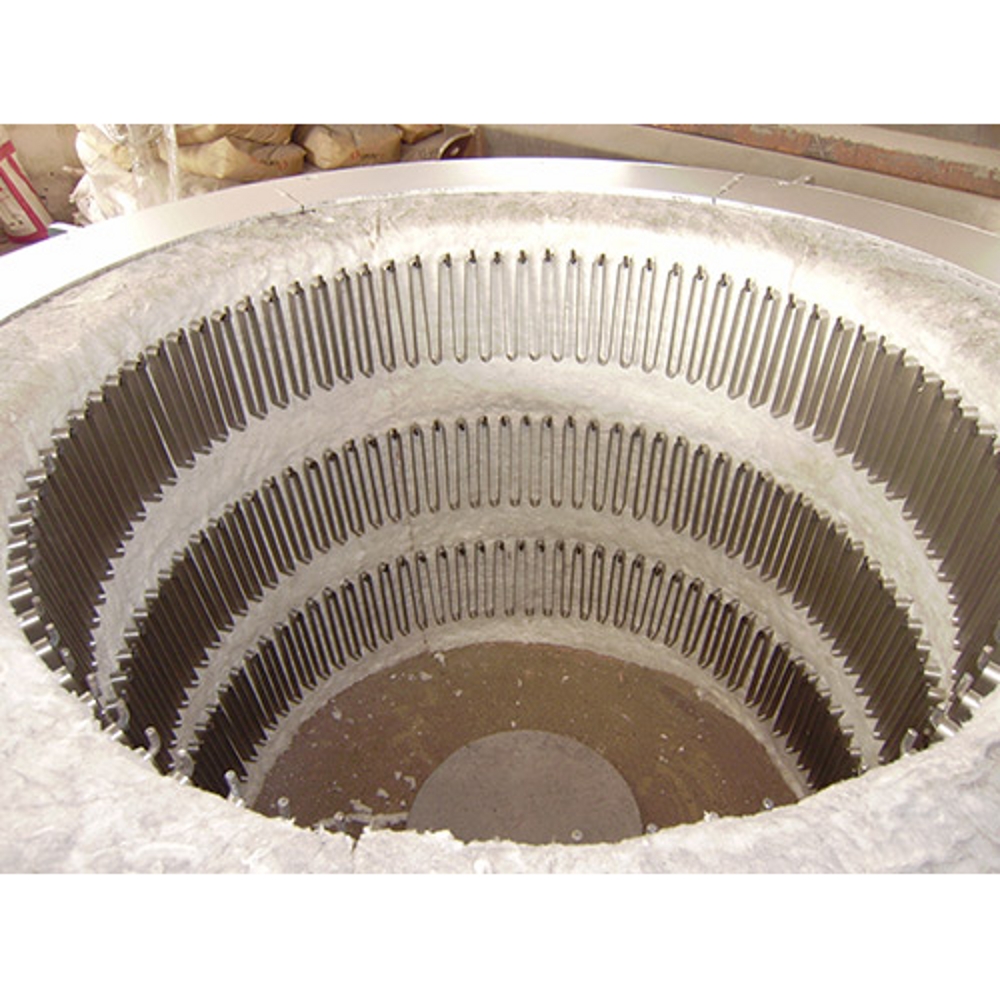

1.The furnace lining is pressed with imported refractory fiber module, which replaces the original refractory brick structure.
2.Adopts inlet temperature control instrument, PID control, furnace temperature stability control at ≤±5°C;
3.Is equipped with a non-metallic thermocouple protection tube, direct measurement of aluminum temperature, double temperature control, conducive to the correct implementation of the process.
4.Selected imported graphite crucible, good thermal conductivity, long service life, no iron proliferation;
5.Is heated by high temperature alloy resistance band, which has the characteristics of large heat dissipation surface area and long service life.
6.Control system is also equipped with leakage alarm, over temperature alarm and other functions to ensure the safety of equipment and operation;
7.Furnace cover under pressure rotation, easy to operate.
Specification List

Model Aluminium holding capacity /kg Melting capacity
kg/h
Max Electrical power /KW Outer Diameter /mm Height
/mm
Energy consumption
Kwh/T
GDR-100 100 50 45 φ1250 1010 500
GDR-150 150 50 45 φ1250 1010 500
GDR-200 200 50 45 φ1250 1010 500
GDR-250 250 80 60 φ1420 1100 500
GDR-300 300 100 75 φ1420 1100 500
GDR-400 400 120 75 Φ1450 1150 500
GDR-500 500 150 90 φ1570 1200 500
GDR-600 600 150 90 φ1570 1200 500
GDR-800 800 200 120 φ1700 1400 500
GDR-900 900 200 120 φ1700 1400 500
GDR-1000 1000 250 120 φ1700 1630 500
