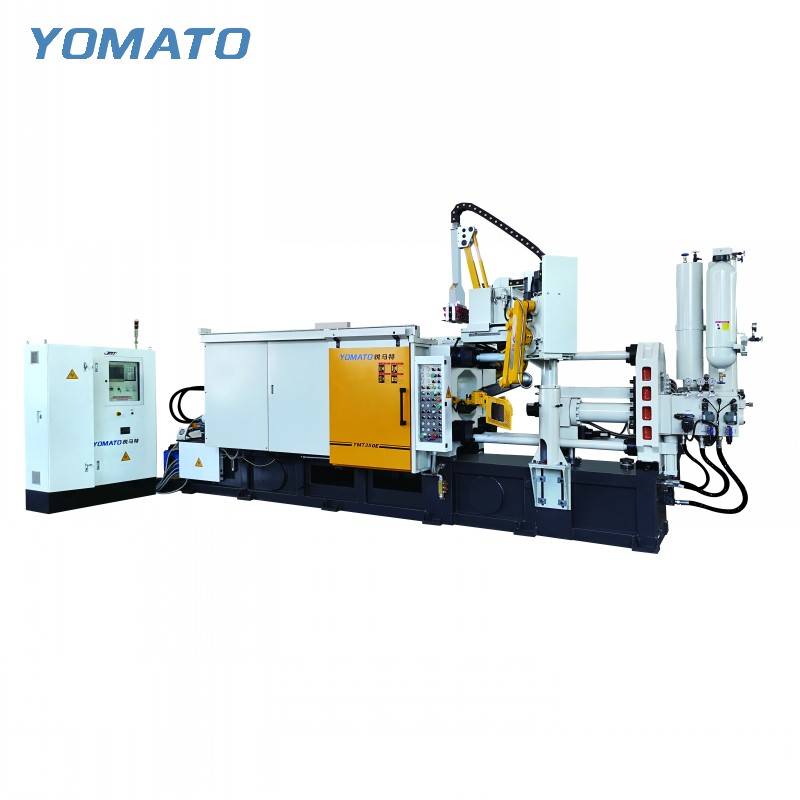

Copper Die Casting Machine 350Ton

High Preformance
High Efficiency
High Precision
Higher Stability

Product Description

Highlights of CMT Series Copper Die Casting Machine

Higher Performance

Air shot speed ≥ 8m/s, intensification pressure building time ≤ 15ms, slow-fast injection switching time ≤25ms. The machine is suitable for aluminum,magnesium and copper alloy.

Higher Efficiency

The injection system and extremely fast clamping system, built according to the new structural design of advanced foreign Copper Die Casting Machine, are much more reliable than traditional Copper Die Casting Machine and achieve high-speed production and higher output.

Higher Stability

The key units of the Copper Die Casting Machine, such as the injection system, precisely engineered according to the structural and processes design of famous foreign Copper Die Casting Machine, has high rigidity, high reliability and high durability and is  adaptable to adverse operating environment to realize highly stable production.

Features of CMT Series Copper Die Casting Machine

Injection System of <a href=https://www.yomato-machinery.com/Copper-Die-Casting-Machine.html target='_blank'>Copper Die Casting Machine</a>

Superior Injection System

Yomato’s superior non-floating piston injection system has a low malfunction rate,built-in one-way valve control, shorten the pressure build-up time and ensure the good stability.

Lubrication System of <a href=https://www.yomato-machinery.com/Copper-Die-Casting-Machine.html target='_blank'>Copper Die Casting Machine</a>

Central Lubrication System

The toggles are equipped with an automatic central lubrication system that allows separate adjustments of the lubrication interval and oil volume and improves the lifespan and reliability of the machine.

Toggle System of <a href=https://www.yomato-machinery.com/Copper-Die-Casting-Machine.html target='_blank'>Copper Die Casting Machine</a>

Highly Stable Toggle System

The high-rigidity mold opening and closing mechanism meets the requirements of high-speed machines and it is resistant to impacts and has long lifespan. In addition, the fast clamping system is a standard feature for the purpose of high-speed production.

Hydraulic Control System of <a href=https://www.yomato-machinery.com/Copper-Die-Casting-Machine.html target='_blank'>Copper Die Casting Machine</a>

Precise Hydraulic Control System

Multi-level electrically operated proportional pressure and flow control, as well as low-pressure mold protection is available;Original imported high performance, low noise dual vane pump from Japan;Electromagnetic valve,Electrical hydraulic valve.

Electrical Control System of <a href=https://www.yomato-machinery.com/Copper-Die-Casting-Machine.html target='_blank'>Copper Die Casting Machine</a>

Stable Electrical Control System

The ORMON PLC control system (touch screen) is safe and reliable with high control accuracy. Separate integration of the electrical and electronic systems effectively enhances the stability of the electrical circuit.

Servo System of <a href=https://www.yomato-machinery.com/Copper-Die-Casting-Machine.html target='_blank'>Copper Die Casting Machine</a>

Energy Saving Servo System(optional device)

Yomato Copper Die Casting Machine supply the  servo system for machine energy saving as optional.

Servo motor:Hilectro(China famous brand)+Servo Pump:Sumitomo brand+Servo Driver:MODROL

Or customized making under special requirements brands.

Specification List

Item Unit CMT300 CMT350 CMT400 CMT450 CMT550
Clamping Unit Clamping Force KN 3000 3500 4000 4500 5500
Platen Size(HxV) mm 870x870 960x960 970x960 1010x1010 1150x1150
Space Between Tie Bars(HxV) mm 570x570 610x610 620x620 660x660 760x760
Tie Bar Diameter mm 110 120 130 130 140
Mold Height(Min.-Max.) mm 250-650 250-700 300-700 300-750 320-800
Clamping Stroke mm 460 500 550 550 580
Ejection Stroke mm 110 120 120 120 120
Ejection Force KN 140 160 180 200 220




Injection Unit Injection Force KN 320 370 405 420 520
Injection Stroke mm 420 500 500 520 570
Injection Position mm 0,-160 0,160 0,-175 0.-200 0.-200
Injection Plunger Diameter mm 50,60,70 60,70,80 60,70,80 60,70,80 70,80,90
Injection Weight(Cu) KG 1.5,2.1,2.9 2.6,3,6,4,6 2.6,3,6,4.6 2.8,3.6,4.7 3.9,5.1,6.5
Casting Pressure(Intensify.) MPa 162,113,83 130,96,73 143,105,80 148,109,83 135,103,81
Casting Area cm2 184,265,360 267,364,475 279,380,496 302,412,538 407,531,672
Max.Casting Area(40MPa) cm2 750 875 1000 1125 1375
Casting Flange Protrusion mm 12-0.05 12-0.05 12-0.05 15-0.05 15-0.05
Casting Flange Diameter mm 110 110 110 130 130
Plunger Penetration mm 150 195 200 220 230




Others System Working Pressure MPa 14 16 14 16 16
Motor Power KW 18.5 22 22 22 30
Oil Tank Capacity L 650 700 850 1000 1100
Machine Weight KG 12000 14800 15000 18000 23500
Machine Dimensions(LxWxH) m 6.2x1.8x2.7 7x1.9x2.8 6.8x2x28 7x2x2.9 7.8x2.4x3.1
