Concentrating Melting Furnace 2000kg/h

Melting Capacity
Holding Capacity
Low Comsumption
Energy Saving

Product Description

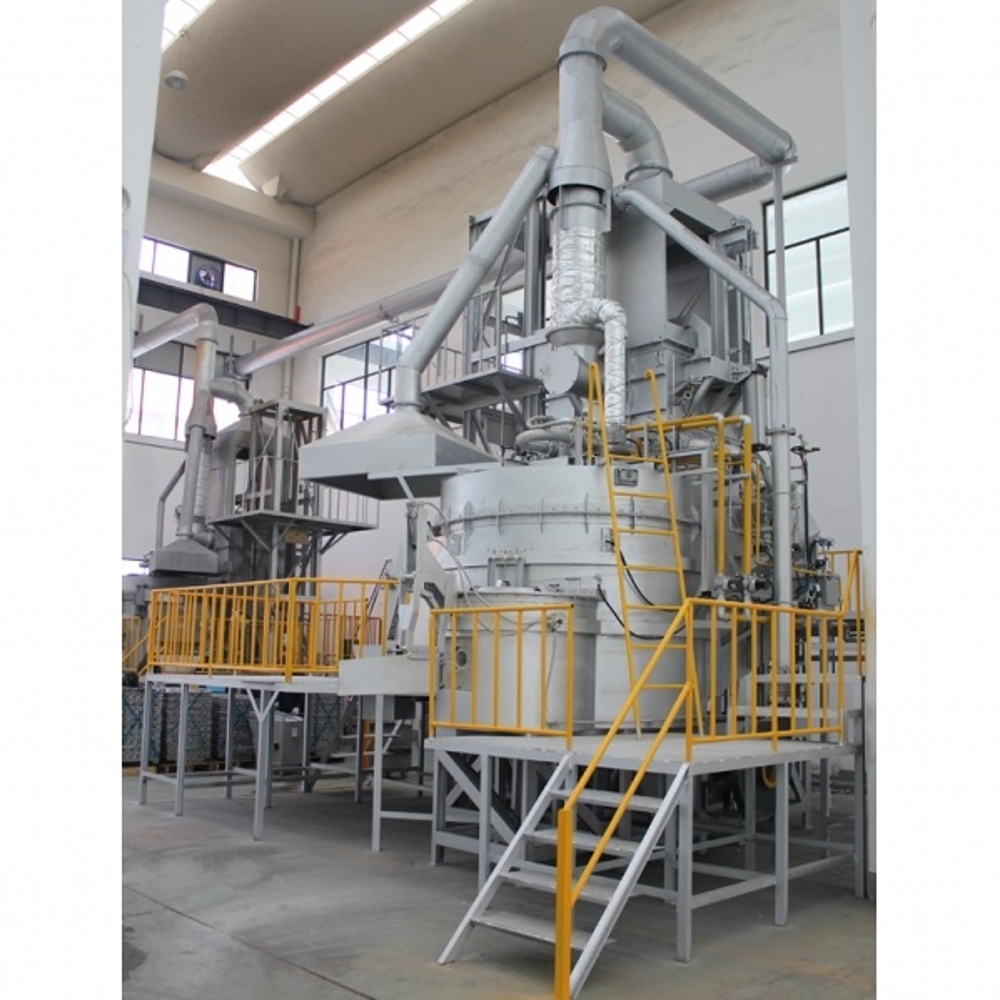

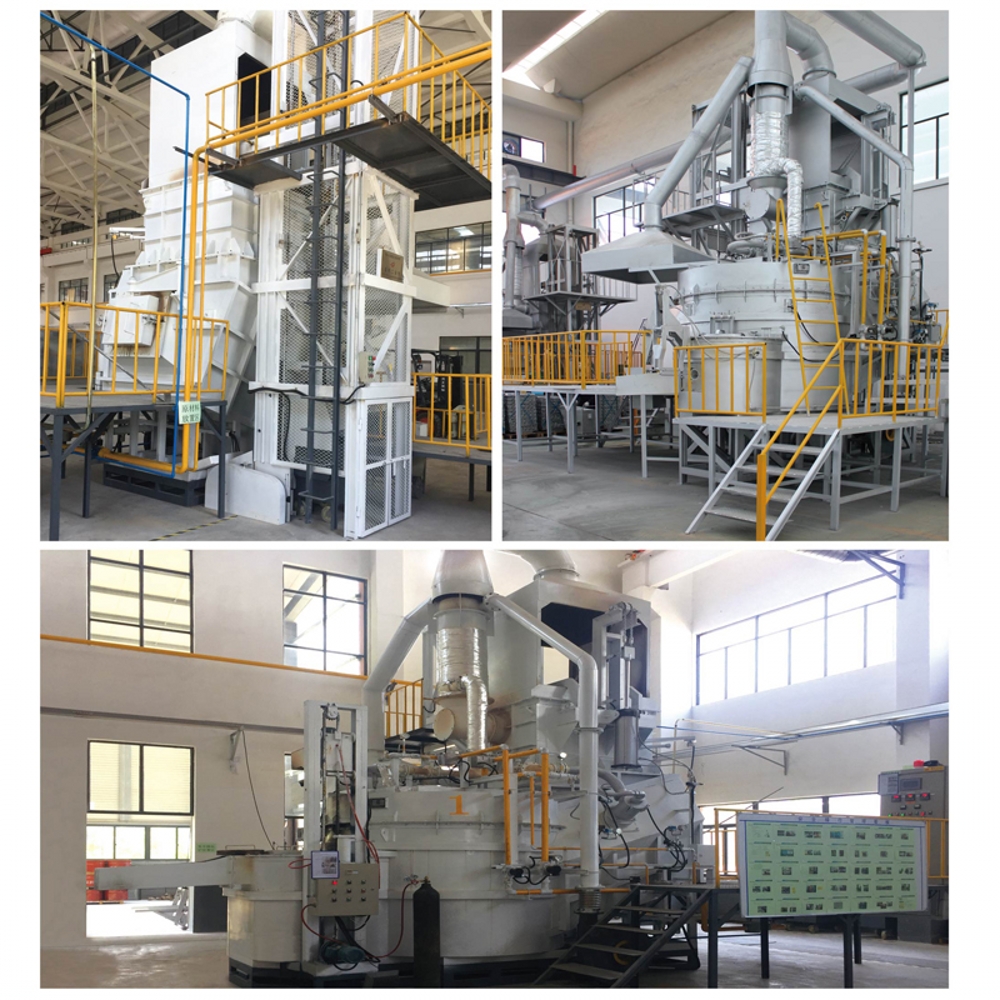

GTM Series Aluminium Alloy Concentrating Melting Furnace,also referred to as Tower Furnace, adopts tower structure preheating material, which has low energy consumption, strong melting capacity, fast melting speed, automatic feeding, automatic effluent, high degree of automation, safety and reliability.
1.International famous brand bright flame burner, using low excess air coefficient, through combustion to remove oxygen in the furnace, to reduce the burning rate, ensure full combustion, improve thermal efficiency;
2.Powerful heat exchange equipment (patent technology), flue gas waste heat reuse, energy conservation and environmental protection;
3.Structure design is reasonable, furnace has no dead angle, easy cleaning, finishing and maintenance;
4.Tower structure, flue gas waste heat recovery and reuse, low carbon environmental protection, reduce energy consumption, high thermal efficiency, tons of aluminum melting energy consumption ≤55×104 kcal/T;
5.A burn rate of less than 1.3 per cent;
6.Double temperature control, direct measurement of aluminum liquid temperature, aluminum liquid temperature control precision, aluminum liquid temperature difference ≤±5°C;
7.Furnace lining selected imported high-quality materials, integral pouring, service life of more than five years, no aluminum, no crucible loss, no iron proliferation;
8.Adopts nano-adiabatic material, the heat preservation effect is excellent, the temperature rise of furnace wall is less than 30°C;
9.Automatic feeding, automatic effluent, automatic operation, intelligent industrial control, stable operation, low failure rate;
10.LNG (natural gas), LPG (liquefied petroleum gas), diesel, cold gas and urban gas can be used as fuel.

Specification List

Model Melting capacity
Kg/Hr
Holding capacity
kg
Length
mm
Width
mm
Height
mm
GTM-300 300 900 4300 2700 5600
GTM-500 500 1500 4800 3200 6300
GTM-750 750 2000 5400 3700 6800
GTM-1000 1000 2500 5700 3800 7000
GTM-1500 1500 4000 6100 3900 7300
GTM-2000 2000 5000 6900 4100 8000
GTM-2500 2500 6500 7200 4400 8150
GTM-3000 3000 8000 7500 4600 8500
